ASUS ROG MAXIMUS Z790 FORMULA Motherboard + Intel i9-14900K / i9-14900KF (14th GEN) Processor BUNDLE

$2,240.00 SGD

Sale Sold out

FORMULA BUNDLE FORMULA + 14900K FORMULA + 14900KF

Quantity

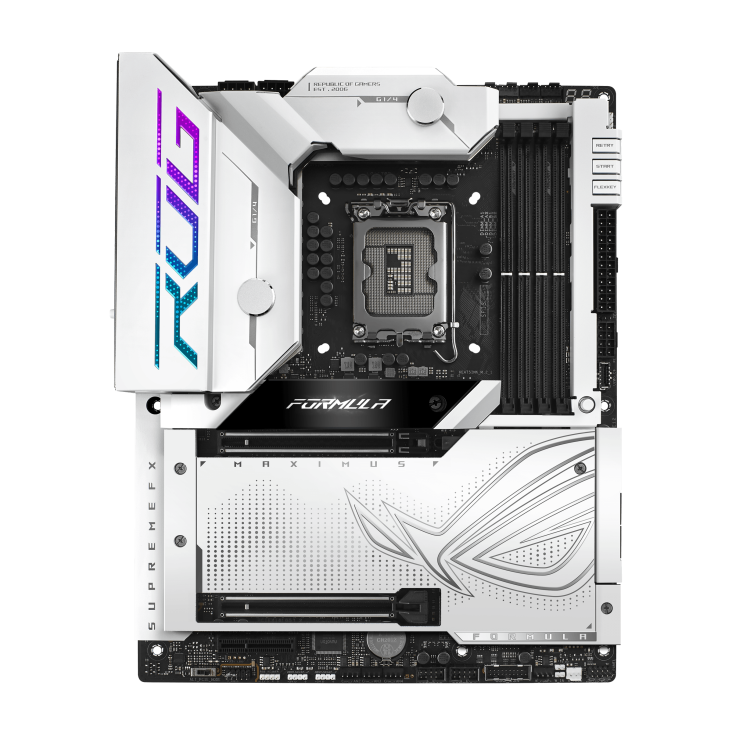

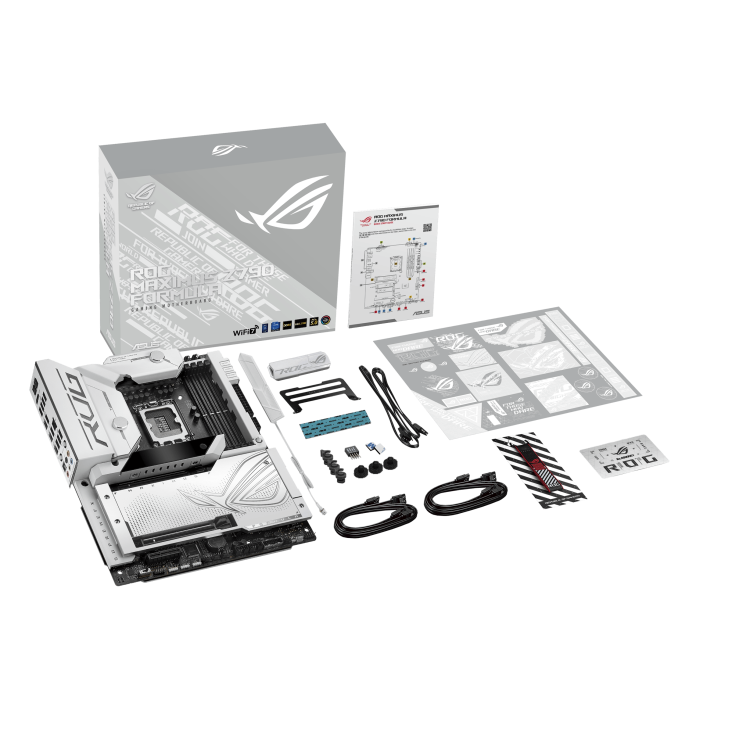

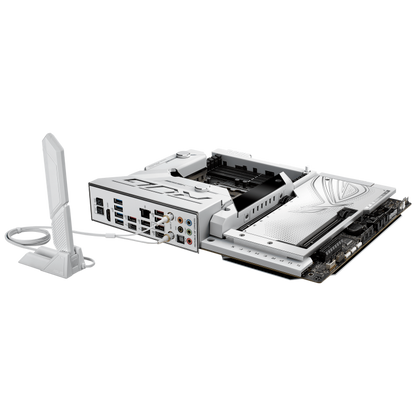

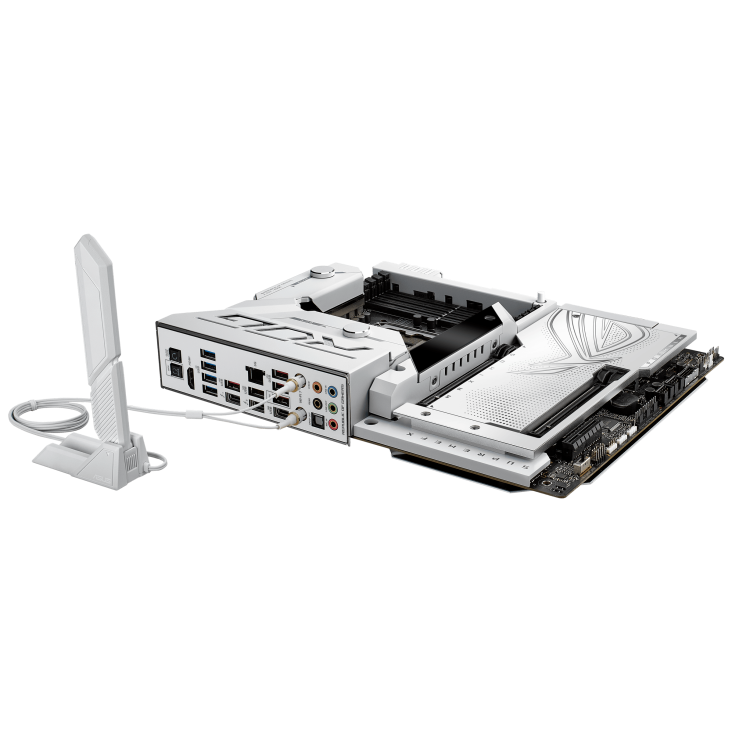

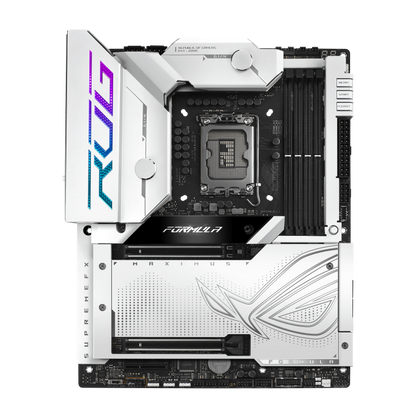

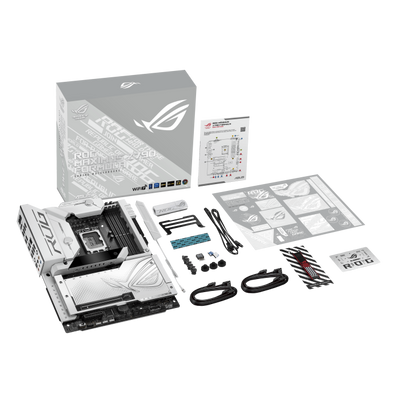

ROG Maximus Z790 Formula

Intel® Z790 Chipset

The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel^® processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel^® Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd. This platform delivers the power and connectivity that advanced AI PC applications demand.

EXTENSIVE GEN 5 - x1 onboard M.2 slot, and x2 PCIe 5.0 x16 slots
DDR5 - MAX. 192GB, DIMM FLEX, AEMP II
WIFI 7 - Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
HybridChill - The ASUS HybridChill water block leverages a fusion of passive and liquid cooling to achieve highly efficient VRM operation. Its copper water channels resist corrosion and offer excellent heat dissipation, while its threaded fittings use the G1/4” industry standard to ensure compatibility with a wide variety of custom cooling setups.
2” LIVEDASH OLED panel
AI OVERCLOCKING - Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI COOLING II - One-click fan tuning
Teamed Power Solution 20+1+2
DIY - Friendly Design
TWO THUNDERBOLT 4 TYPE-C^® PORTS - Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.

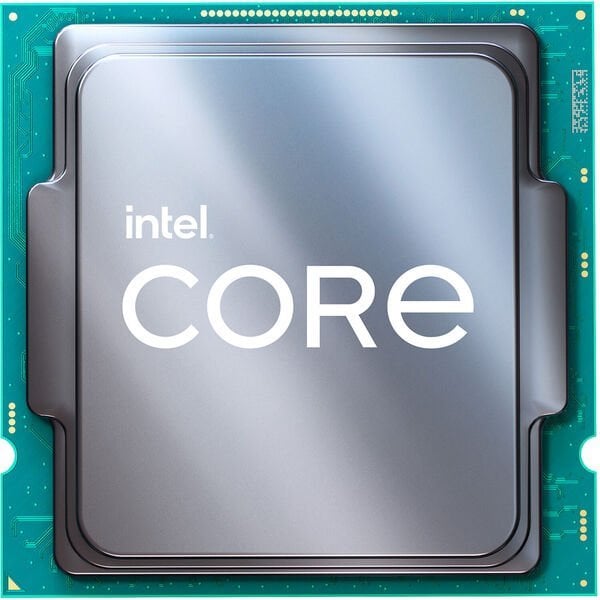

Intel® Core™ i9-14900K / i9-14900KF
(36M Cache, up to 6.00 GHz)

CPU Specifications

Total Cores - 24
# of Performance-cores - 8
# of Efficient-cores - 16
Total Threads - 32
Max Turbo Frequency - 6 GHz
Intel® Thermal Velocity Boost Frequency - 6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ - 5.8 GHz
Performance-core Max Turbo Frequency - 5.6 GHz
Efficient-core Max Turbo Frequency - 4.4 GHz
Performance-core Base Frequency - 3.2 GHz
Efficient-core Base Frequency - 2.4 GHz
Cache - 36 MB Intel® Smart Cache
Total L2 Cache - 32 MB
Processor Base Power - 125 W
Maximum Turbo Power - 253 W

Memory Specifications

Max Memory Size (dependent on memory type) - 192 GB
Memory Types - Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels - 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported ‡ - Yes (i9-14900K) / No (i9-14900KF)

GPU Specifications (i9-14900K)

GPU Name‡ Intel® UHD Graphics 770
Graphics Base Frequency - 300 MHz
Graphics Max Dynamic Frequency - 1.65 GHz
Graphics Output - eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units - 32
Max Resolution (HDMI)‡ - 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ - 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ - 5120 x 3200 @ 120Hz
DirectX* Support - 12
OpenGL* Support - 4.5
OpenCL* Support - 3.0
Multi-Format Codec Engines - 2
Intel® Quick Sync Video - Yes
Intel® Clear Video HD Technology - Yes
# of Displays Supported ‡ - 4
Device ID0xA780

Expansion Options

Direct Media Interface (DMI) Revision - 4.0
Max # of DMI Lanes - 8
Scalability - 1S Only
PCI Express Revision - 5.0 and 4.0
PCI Express Configurations ‡ - Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes - 20

Package Specifications

Sockets Supported - FCLGA1700
Max CPU Configuration - 1
Thermal Solution Specification - PCG 2020A
T_JUNCTION - 100 °C
Package Size - 45.0 mm x 37.5 mm
Max Operating Temperature - 100 °C

Advanced Technologies

Intel® Volume Management Device (VMD) - Yes
Intel® Gaussian & Neural Accelerator - 3.0
Intel® Thread Director - Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU - Yes
Intel® Speed Shift Technology - Yes
Intel® Adaptive Boost Technology - Yes
Intel® Thermal Velocity Boost - Yes
Intel® Turbo Boost Max Technology 3.0 ‡ - Yes
Intel® Turbo Boost Technology ‡ - 2.0
Intel® Hyper-Threading Technology ‡ - Yes
Intel® 64 ‡ - Yes
Instruction Set - 64-bit
Instruction Set Extensions - Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States - Yes
Enhanced Intel SpeedStep® Technology - Yes
Thermal Monitoring Technologies - Yes

Security & Reliability (i9-14900K)

Intel vPro® Eligibility ‡ - Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
Intel® Threat Detection Technology (TDT) - Yes
Intel® Active Management Technology (AMT) ‡ - Yes
Intel® Standard Manageability (ISM) ‡ - Yes
Intel® Remote Platform Erase (RPE) ‡ - Yes
Intel® One-Click Recovery ‡ - Yes
Intel® Hardware Shield Eligibility ‡ - Yes
Intel® Control-Flow Enforcement Technology - Yes
Intel® Total Memory Encryption - Multi Key - Yes
Intel® AES New Instructions - Yes
Secure Key - Yes
Intel® OS Guard - Yes
Intel® Trusted Execution Technology ‡ - Yes
Execute Disable Bit ‡ - Yes
Intel® Boot Guard - Yes
Mode-based Execute Control (MBEC) - Yes
