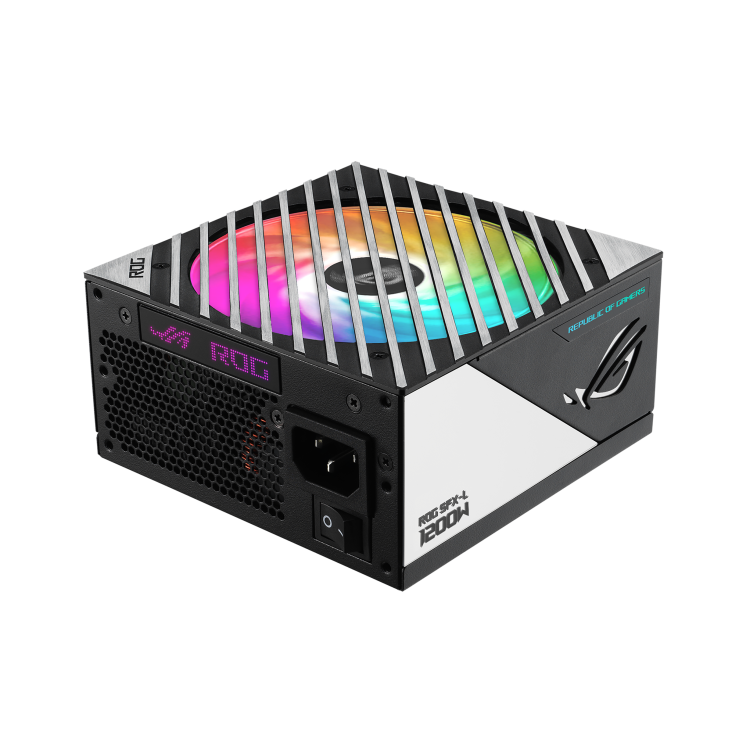

ASUS ROG Loki SFX-L 1200W Titanium

(Fully Modular Power Supply, 80+ Titanium Certified, Compact Form Factor , ATX 3.1, PCIe Gen 5.0 Ready, Aura Sync, 10 Year Warranty)

FEATURES

• ROG heatsinks cover critical components. Lower temps result in a longer lifespan and reduced noise

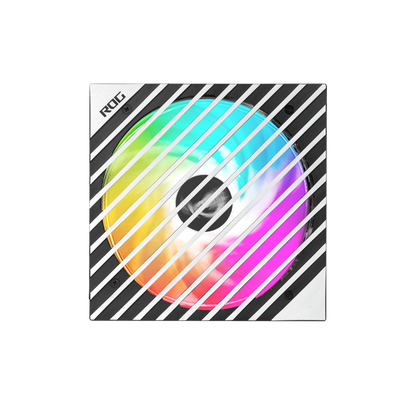

• Axial-tech cooling: 125mm fan with PWM control for low noise and thermals kept in check

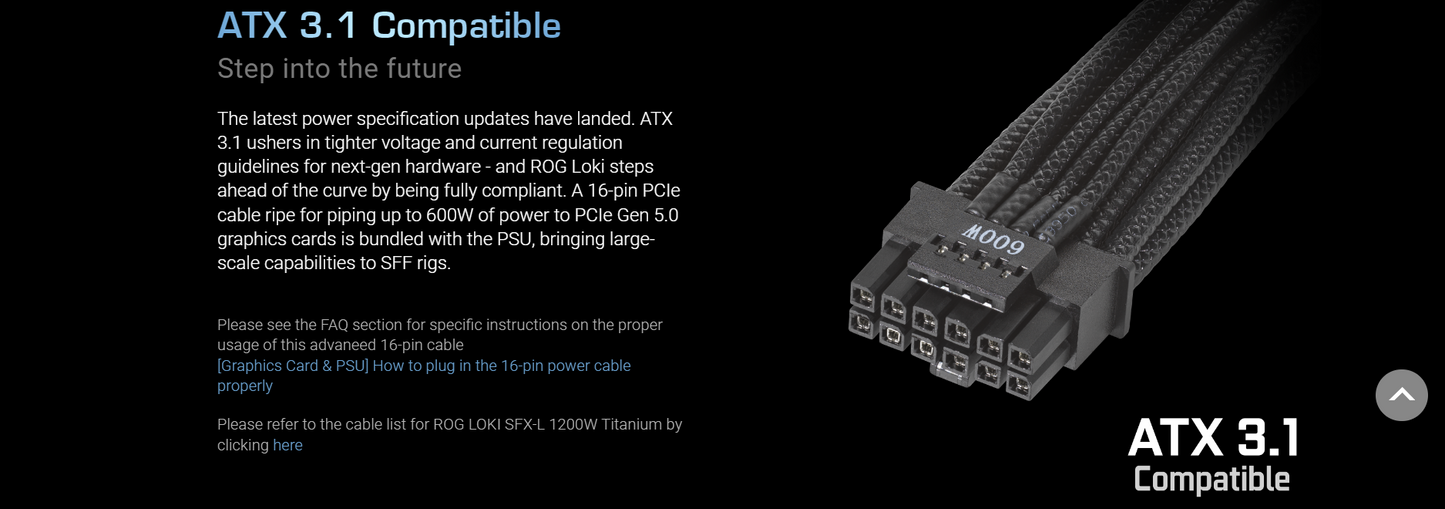

• ATX 3.0 Compatible: ROG Loki is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards

• 80 PLUS Titanium certified: Up to 94% efficient for low heat and noise, and increased reliability

• Aura Sync compatible: Ready to synchronize lighting effects across your gaming setup

SPECIFICATIONS

MODEL: ROG-LOKI-1200T-SFX-L-GAMING

INTEL FORM FACTOR: SFX-L

PFC TYPE: Active PFC

ATX 3.0: Yes

DIMENSIONS: 125 x 125 x 63.5 mm

EFFICIENCY: 80Plus Titanium

PROTECTION FEATURES: OPP/OVP/UVP/SCP/OCP/OTP

HAZARDOUS MATERIALS: ROHS

AC INPUT RANGE: 100 - 240Vac

DC OUTPUT VOLTAGE: +3.3V +5V +12V -12V +5Vsb

MAXIMUM LOAD: 20A 20A 100A 0.8A 3A

COMBINED LOAD: 110W 110W 1200W 9.6W 15W

TOTAL OUTPUT: 1200W

CABLE CONNECTORS

• MB 24/20-pin x 1

• CPU 4+4pin x 2

• PCI-E 16-pin x 2 (both PSU & component side)

• PCI-E 8-pin x 4

• SATA x 6

• PERIPHERAL x 4

PACKAGE CONTENTS

• Power Cord x 1

• Motherboard Power Cable x 1 (450mm)

• CPU Cable x 2 (550mm)

• PCI-E Gen 5 16-pin Cable x 2 (450mm)

• PCI-E (16-pin to 8-pin-8-pin) Cable x 2 (450mm)

• SATA 1-to-3 Cable x 2 (300+200+100mm)

• Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)

• Addressable RGB Cable x 1 (800mm)

• User Manual x 1

• ATX to SFX adapter bracket x 1

WEIGHT: 2.15 kg (single PSU)

AURA SYNC: ARGB

CYBENETICS NOISE LEVEL CERTIFICATION: S++

0dB TECHNOLOGY: Supported. The fan shuts off entirely when the PSU is under certain load
