ASUS ROG HYPERION GR701 EATX CASE WITH BTF EDITION - 5 x 2.5" Bay, ARGB, 420mm Dual Radiator, 4x140mm Fans, Tempered Glass, 1 Yr Wty

ASUS ROG HYPERION GR701 EATX CASE WITH BTF EDITION

-  5 x 2.5" Bay , ARGB , 420mm Dual Radiator, 4 x 140mm Fans, Tempered Glass, 1 Yr Wty

• Extra Clean: Supports Motherboard’s hidden connectors design by having virtually no wire and cluttering.

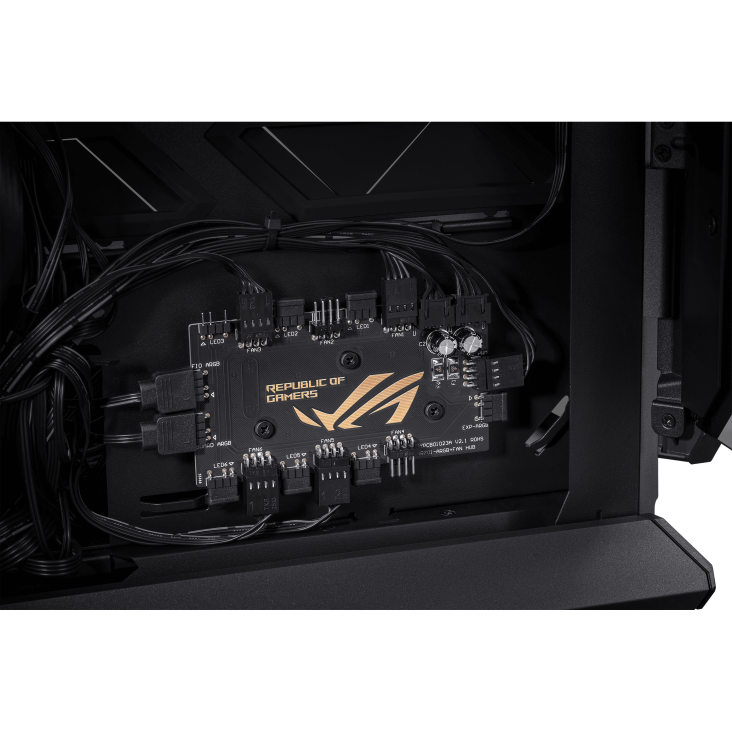

• Extra Cooling: Dual 420mm radiator support, four 140 mm fans and a built-in fan hub offer massive airflow possibilities


• Extra Space: The beefiest graphics cards get plenty of room; cable management gets an expansive chamber that is 34 mm deep, with a 46 mm wide routing channel


• Extra Convenience: Hinged tool-free side panels, a built-in storage drawer and an integrated graphics card holder come together to amp up the building experience


• Extra Power: Dual USB Type-C ports, 60-watt fast charging, aluminum-reinforced frame and handles deliver power and premium ruggedness

SPECIFICATIONS

MODEL: ROG Hyperion GR701 BTF Edition

MOTHERBOARD SUPPORT
• EATX (12"x10.9")
• ATX
• Micro-ATX
• Mini-ITX

DRIVE BAYS
• 5 x 2.5" Bay
• 2 x 2.5"/3.5" Combo Bay

EXPANSION SLOTS
• 9
• 3 (additional vertical)

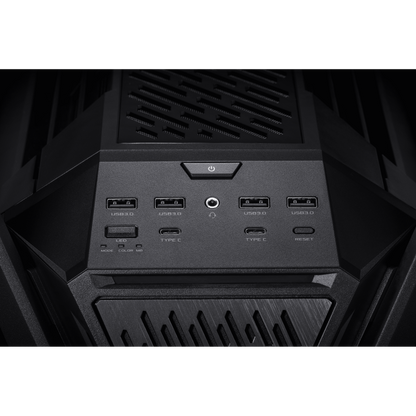

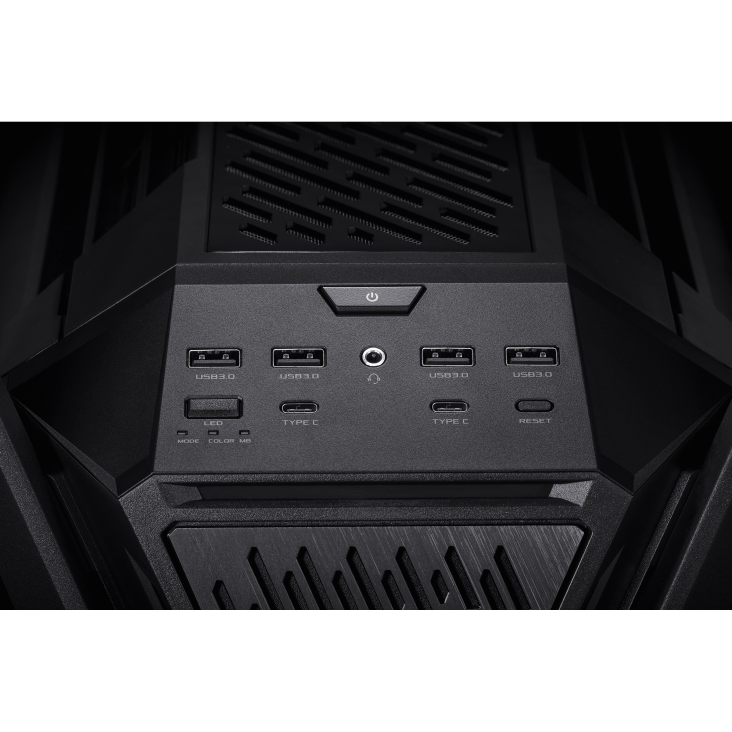

FRONT I/O PORT
• 1 x headphone / Microphone
• 4 x USB 3.2Gen1
• 1 x USB 3.2 Gen2 Type C
• LED Control Button
• Reset Button
• 1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C

*this spec might vary by region

TEMPERED GLASS
• Left Side
• Right Side

RADIATOR SUPPORT (FRONT)
• 120 mm
• 140 mm
• 240 mm
• 280 mm
• 360 mm
• 420 mm

RADIATOR SUPPORT (TOP)
• 120 mm
• 140 mm
• 240 mm
• 280 mm
• 360 mm
• 420 mm

RADIATOR SUPPORT (REAR)
• 120 mm
• 140 mm

COOLING SUPPORT (FRONT)
• 3 x 120 mm
• 3 x 140 mm

COOLING SUPPORT (TOP)
• 3 x 120 mm
• 3 x 140 mm

COOLING SUPPORT (REAR)
• 1 x 120 mm
• 1 x 140 mm

PRE-INSTALLED FANS (FRONT)
• 3 x 140 mm
• PWM

PRE-INSTALLED FANS (REAR)
• 1 x 140 mm
• PWM

MAXIMUM CPU COOLER HEIGHT: 190 mm

MAXIMUM GPU LENGTH: 460 mm

MAXIMUM PSU LENGTH: 240 mm

REMOVABLE DUST FILTERS
• Front
• Top
• Bottom

MAXIMUM CABLE MANAGEMENT SPACE: 34 mm

DIMENSIONS: 268 * 639 * 659 mm

WEIGHT
• 20.8 Kg
• 21.3 Kg (GR701 BTF Edition)

AURA SYNC: ARGB
