ASUS ProArt Display PA32UCXR Professional Monitor - 32" 4K UHD (3840x2160), Mini LED Backlight, Built-in Motorized Colorimeter, Dolby Vision, 99% Adobe RGB, 97% DCI-P3, ΔE<1, Thunderbolt™ 4 PD 90W, VESA DisplayHDR 1400, Hardware Calibration, Calman Ready

Name: ASUS ProArt Display PA32UCXR Professional Monitor - 32" 4K UHD (3840x2160), Mini LED Backlight, Built-in Motorized Colorimeter, Dolby Vision, 99% Adobe RGB, 97% DCI-P3, ΔE<1, Thunderbolt™ 4 PD 90W, VESA DisplayHDR 1400, Hardware Calibration, Calman Ready
Brand: ASUS
SKU: ProArt Display PA32UCXR
Price: 4799.00 SGD
Availability: InStock

$4,799.00 SGD

Sale Sold out

Quantity

ProArt Display PA32UCXR Professional Monitor
1600 Nits Mini-LED Monitor with Built-in Colorimeter for Ultimate Realism

ASUS ProArt Display PA32UCXR Professional Monitor - 32-inch, 4K UHD (3840 x 2160), 2,304 zones Mini LED Backlight, Built-in Motorized Colorimeter, Self / Auto Calibration, HDR-10, HLG, Dolby Vision, 99% Adobe RGB, 97% DCI-P3, ΔE < 1, Thunderbolt™ 4 PD 90W, VESA DisplayHDR 1400, Hardware Calibration, Calman Ready, ColourSpace Integration, Ergonomic Stand, Green Sustainability

32-inch mini LED backlight panel with 2304-zone local dimming for a 1,000,000:1 contrast ratio, with 1600 nits peak brightness and 1000 nits of sustained full-screen brightness
True 10-bit color depth and Quantum Dot technology provide 100% sRGB, 99% Adobe RGB, 97% DCI-P3 and Rec. 2020 color gamut, along with industry-leading Delta E < 1 color accuracy
Built-in colorimeter supports Self / Auto calibration, as well as Calman and Light Illusion ColourSpace CMS professional calibration software
Multiple HDR format support, including Dolby Vision®, HLG and HDR10
Rich connectivity including dual Thunderbolt™ 4 up to 90W Power Delivery, HDMI®, DisplayPort™, and a built-in USB Hub
Recyclable paper packaging, plus energy-efficient performance that meets environmental standards

Deeper Blacks, Brighter Whites

A peak brightness of 1600 nits and an industry-leading 1000 nits of full-screen sustained brightness allow for outstanding contrast between the deeper blacks and gleaming whites.

1600 Nits Peak Brightness / 1000 Nits Sustained Brightness / VESA DisplayHDR 1400

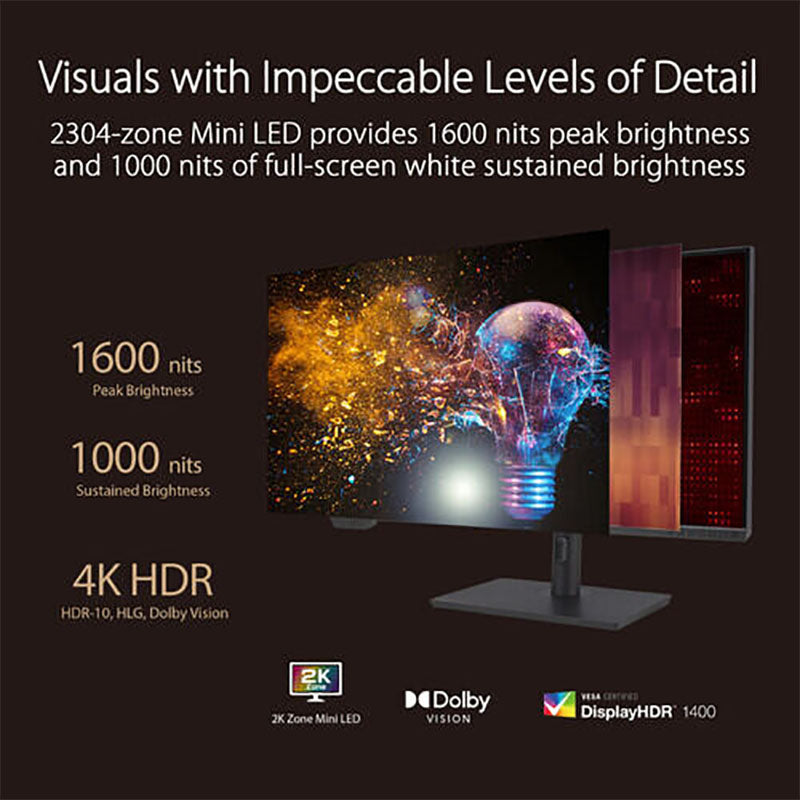

Visuals with Impeccable Levels of Detail

In contrast, ProArt Display PA32UCXR boasts an impressive 2304-zone local dimming. It uses numerous control ICs to independently manage backlighting zones to effectively minimize onscreen flicker during transitions and ensure high levels of sustained brightness. This gives PA32UCXR outstanding brightness uniformity, efficient heat dissipation, and improved HDR image quality.

32-inch / 4K HDR / Mini LED / 2304 zones local dimming

	ProArt mini LED displays
Control	Individually-controlled with dedicated data for each zone
Control ICs	More control ICs
Flicker	TÜV Rheinland-certified. Stable even on low grayscale
LED lifespan	Longer
Grayscale tracking accuracy	Precise local dimming control
Color accuracy	Showcases accurate colors regardless of window size
Power consumption (at the same brightness level)	Needs lower power consumption

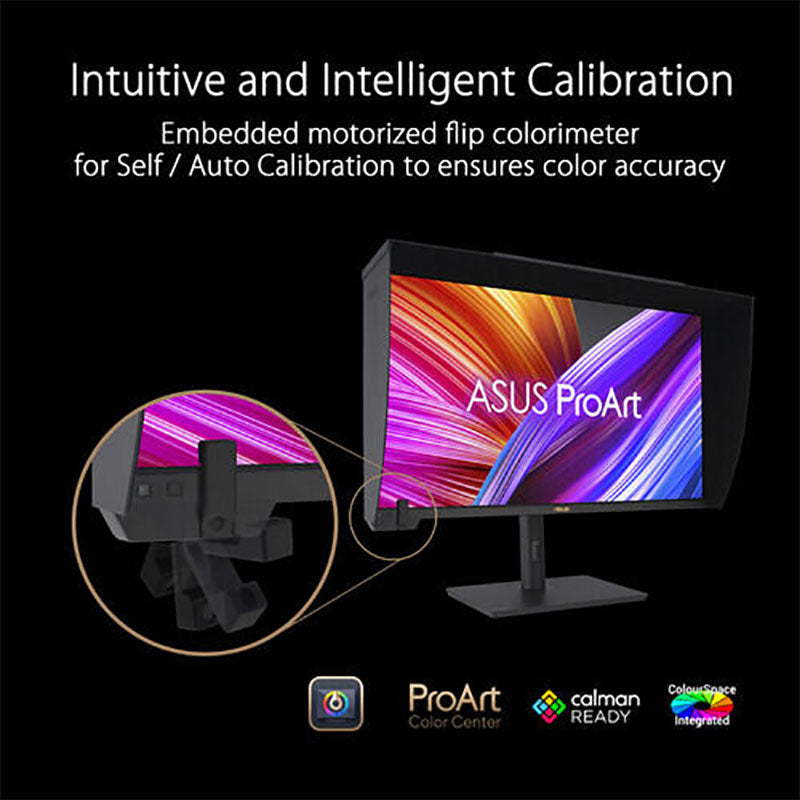

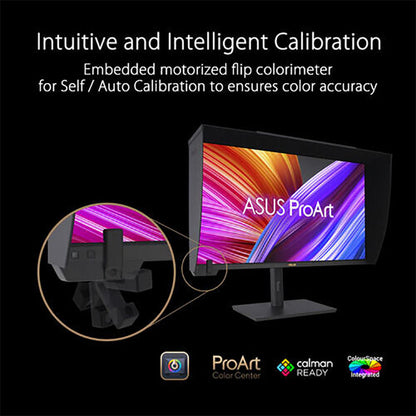

Intuitive and Intelligent Calibration

Self Calibration / ProArt Calibration / ProArt Color Center / Seamless Calibration

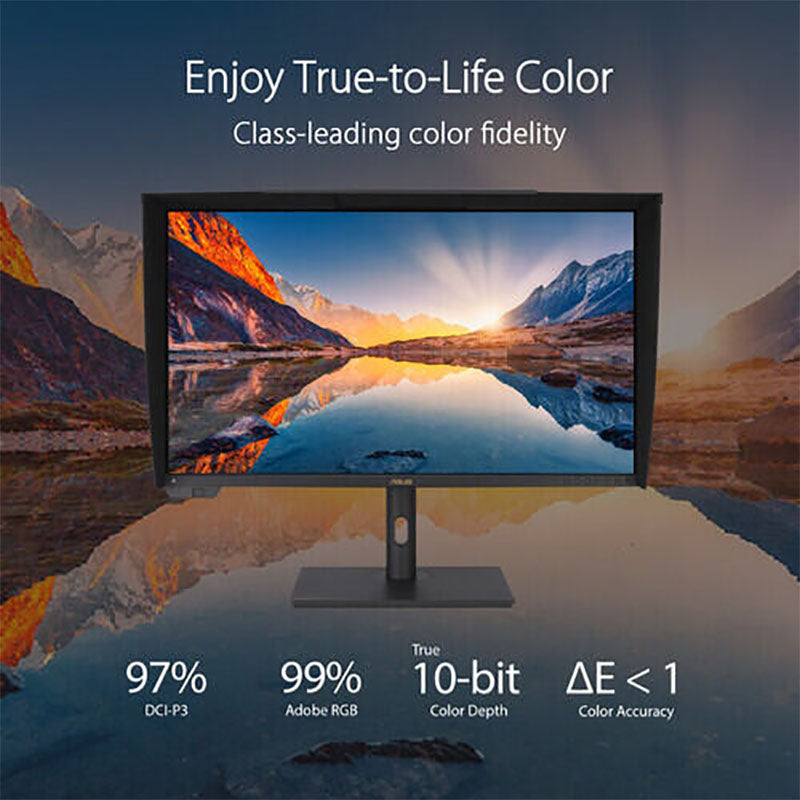

Enjoy true-to-life color

PA32UCXR exceeds industry color reproduction standards with its 99% Adobe RGB, 97% DCI-P3, 100% sRGB, 100% Rec. 709, and 87% Rec. 2020 color gamut, making it ideal for video editing and post-production. Its true 10-bit IPS panel is able to showcase more than 1.07 billion colors to give content creators a vast color spectrum to work with.

99% Adobe RGB / 97% DCI-P3 / True 10-bit

Class-Leading Color Fidelity

Each ProArt display is factory pre-calibrated using a new, three-scale process to guarantee industry-leading color fidelity. The display then undergoes stringent testing using ASUS advanced grayscale tracking technology to ensure smoother color gradations, better uniformity and high color accuracy with a Delta E < 1 color difference value. Each grayscale level is also carefully measured and set to ensure compliance with the precise DICOM standard for medical use.

ΔE < 1 Color Accuracy

ASUS Smart HDR Technology

Exclusive ASUS Smart HDR technology enables ProArt Display PA32UCXR to support multiple HDR formats, including Dolby Vision®, HLG, and HDR10.

Dolby Vision transforms the viewing experience with unmatched levels of brightness, contrast, and colors.
HLG allows users to view and create material for broadcast and satellite TV platforms such as BBC iPlayer, Japan NHK TV, and DirecTV.
HDR10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games.

Streamlined, Efficient Workflows

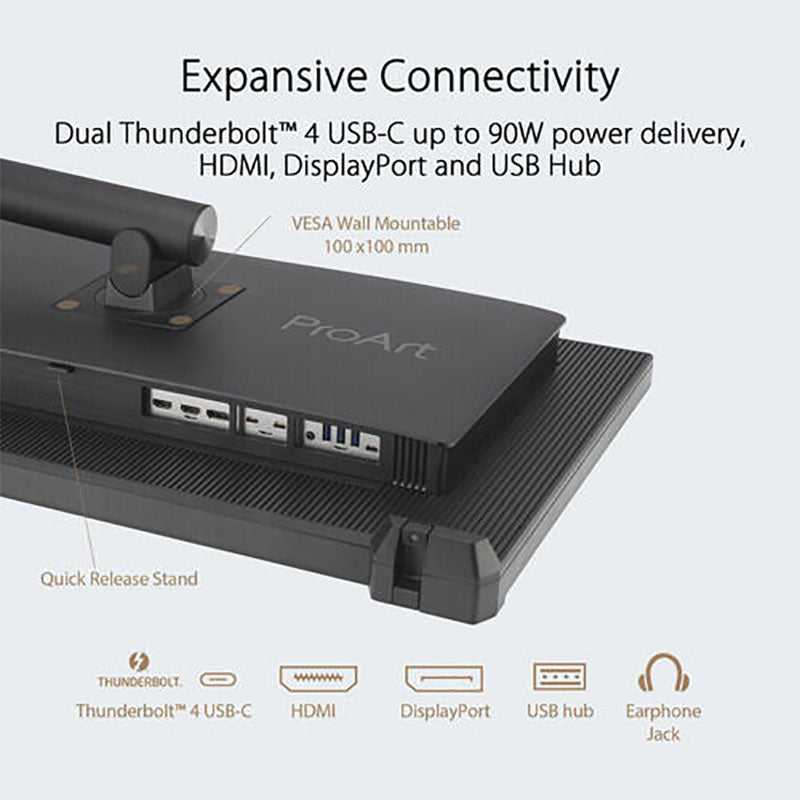

Multi-device Connectivity - PA32UCXR offers dual Thunderbolt 4 ports, DisplayPort 1.4, and two HDMI 2.0 ports for compatibility with current and future displays and peripherals. One of the Thunderbolt 4 ports offers up to 90 W Power Delivery to charge devices as well as the ability to daisy-chain several displays though a single port, without the need for a hub or switch. PA32UCXR also includes an earphone jack and USB hub.

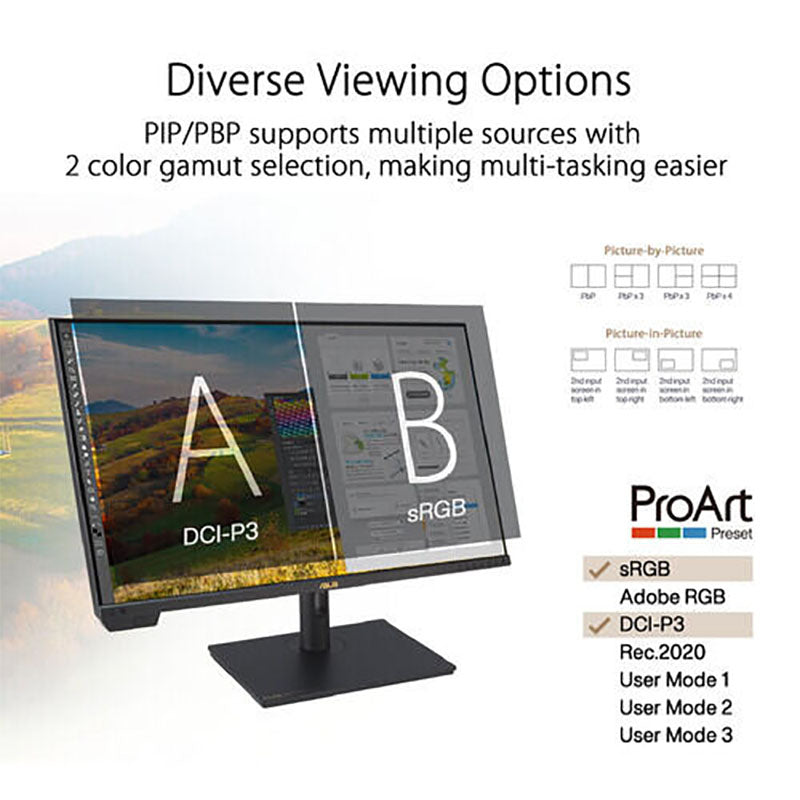

Diverse Viewing Options:
- Picture-by-Picture (PbP)
  View content from up to four input sources simultaneously. Each window’s color mode can also be configured to sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1, User Mode 2 and User Mode 3.
- Picture-in-Picture (PiP)
  This mode places content from a second input source in a smaller window that can be placed in any corner of the display.

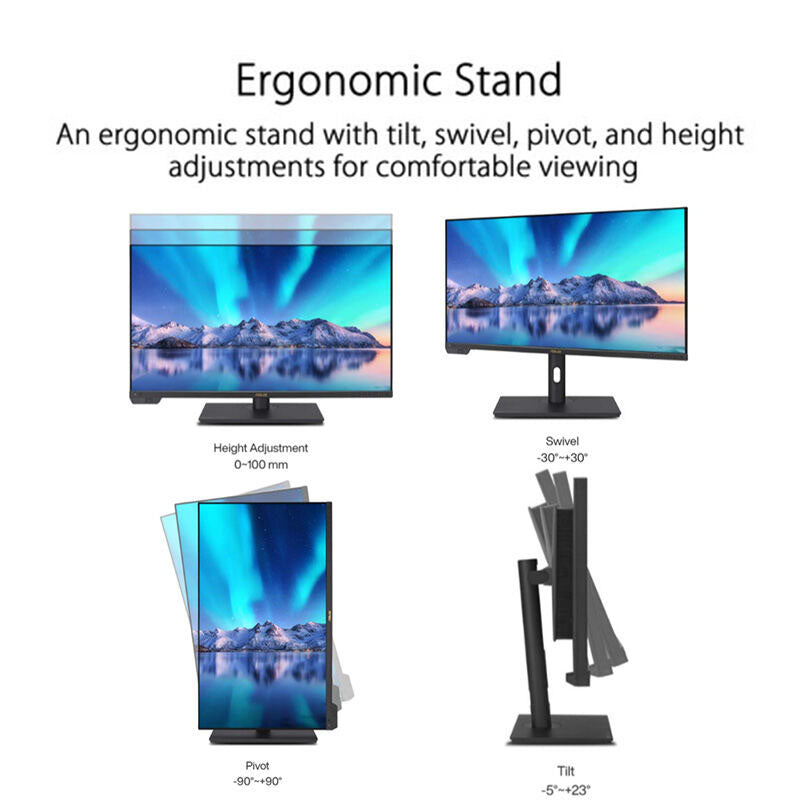

Ergonomic Design - The ergonomic stand offers tilt, swivel, pivot, and height adjustments for the perfect viewing position. Being able to pivot the screen 90° clockwise or anticlockwise to portrait orientation comes in handy when working with posters, playbills, and other large-format projects. A quick-release feature allows users to VESA mount the monitor to a wall to save desktop space.
Detachable Monitor Hood - A wrap around hood reduces on-screen reflections from nearby light sources, enabling users to work with confidence in the studio or on location.
Intelligent Sensors:
- Ambient Light Sensor - Automatically dims or brightens the display depending on environmental lighting
- Proximity Sensor - Automatically dims the display when it detects no user in front of the monitor

TECH SPECIFICATIONS

Model: ProArt Display PA32UCXR

Display

Panel Size (inch) : 32
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 708.48 x 398.52 mm
Display Surface : Non-Glare
Backlight Type : Mini-LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.1845mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Color Space (Adobe RGB) : 99%
Color Space (DCI-P3) : 97%
Color Space (Rec.2020) : 87%
Brightness (HDR, Peak) : 1,600 cd/㎡
Brightness (Typ.) : 1000cd/㎡
Contrast Ratio (HDR, Max) : 1,000,000:1
Contrast Ratio (Typ.) : 1000:1
Display Colors : 1073.7M (10 bit)
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
HDR (High Dynamic Range) Support : HDR10
HDR (High Dynamic Range) Support : HLG
HDR (High Dynamic Range) Support : Dolby Vision
Flicker-free : Yes
LCD ZBD Warranty : Yes (3 yr)

Video Feature

Trace Free Technology : Yes
ProArt Preset : Native
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec.2020
ProArt Preset : DICOM
ProArt Preset : Rec.709
ProArt Preset : HDR_PQ DCI
ProArt Preset : HDR_PQ Rec.2020
ProArt Preset : HDR_HLG BT.2100
ProArt Preset : HDR_HLG DCI
ProArt Preset : Dolby Vision
ProArt Preset : User mode1
ProArt Preset : User mode2
ProArt Preset : User mode3
Color Temp. Selection : Yes (5 modes)
Color Adjustment : 6-axis adjustment (R,G,B,C,M,Y)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : △E< 1
ASUS ProArt Hardware Calibration : Yes
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.2
VRR Technology : Yes (Adaptive-Sync)
HDR Preview : Yes
Low Blue Light : Yes
Multiple HDR Mode : Yes

Audio Feature

Speaker : Yes (3Wx2)

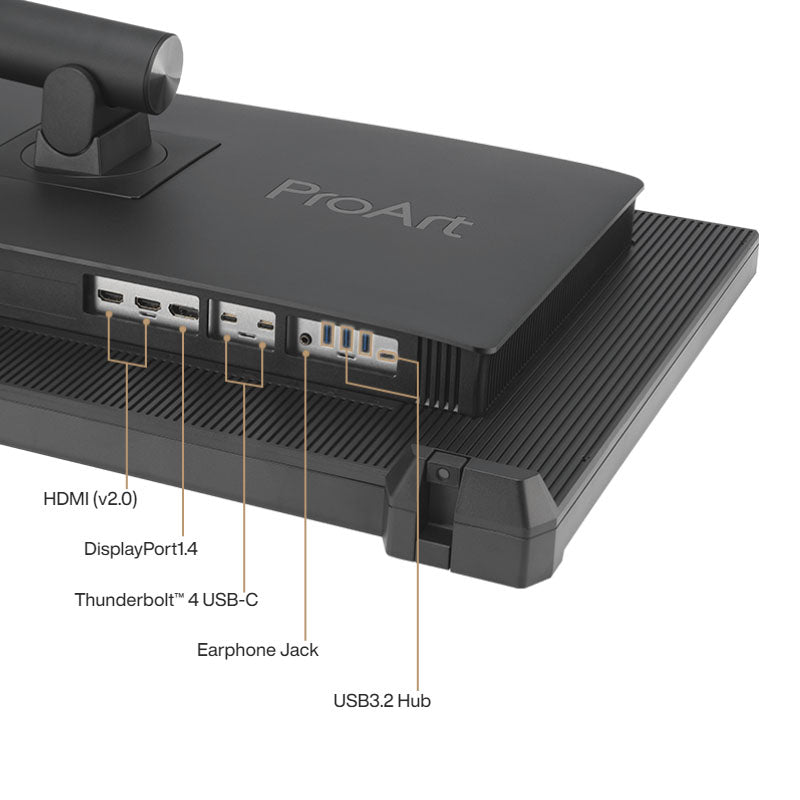

I/O Ports

Thunderbolt 4 x 2 (Daisy Chain)
DisplayPort 1.4 x 1
HDMI (v2.0) x 2
USB Hub : 3x USB 3.2 Gen 2 Type-A + 1x USB 3.2 Gen 2 Type-C
Earphone Jack : Yes
USB-C Power Delivery : 90W

Signal Frequency:

Digital Signal Frequency : HDMI: 135~135 KHz (H) / 40~60 Hz (V)
Thunderbolt, USB-C, DisplayPort: 135~135 KHz (H) / 40~60 Hz (V)

Power Consumption

Power Consumption : <46.62W
Power Saving Mode : <0.5W
Power Off Mode : 0W (hard switch)
Voltage : 100-240V, 50/60Hz

Mechanical Design

Tilt : Yes (+23° ~ -5°)
Swivel : Yes (+30° ~ -30°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~100mm
Embedded Colorimeter : Yes (Support Self-Calibration)
Ambient Light Sensor : Yes
Proximity Sensor : Yes
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes

Dimensions (Esti.)

Phys. Dimension (W x H x D) : 72.7 x 60.1 x 24.5 cm (28.62" x 23.66" x 9.65")
Phys. Dimension without Stand (W x H x D) : 72.7 x 44.5 x 9.0 cm (28.62" x 17.52" x 3.54")
Box Dimension (W x H x D) : 96.50 x 55.50 x 22.80 cm (37.99" x 21.85" x 8.98")
