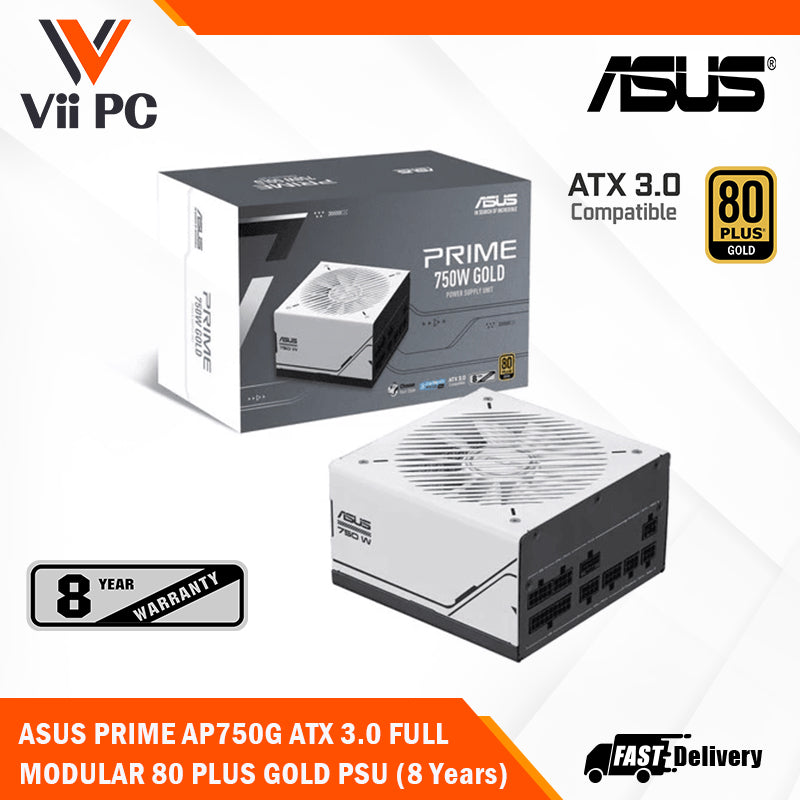

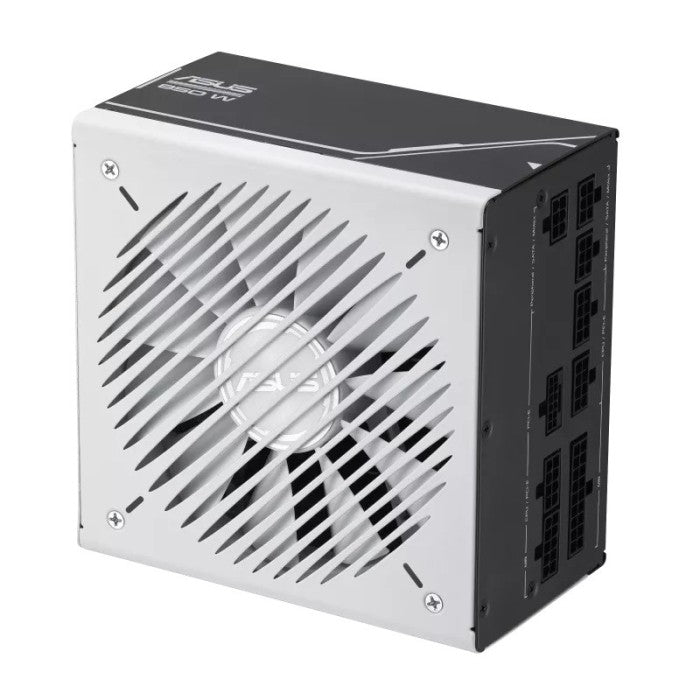

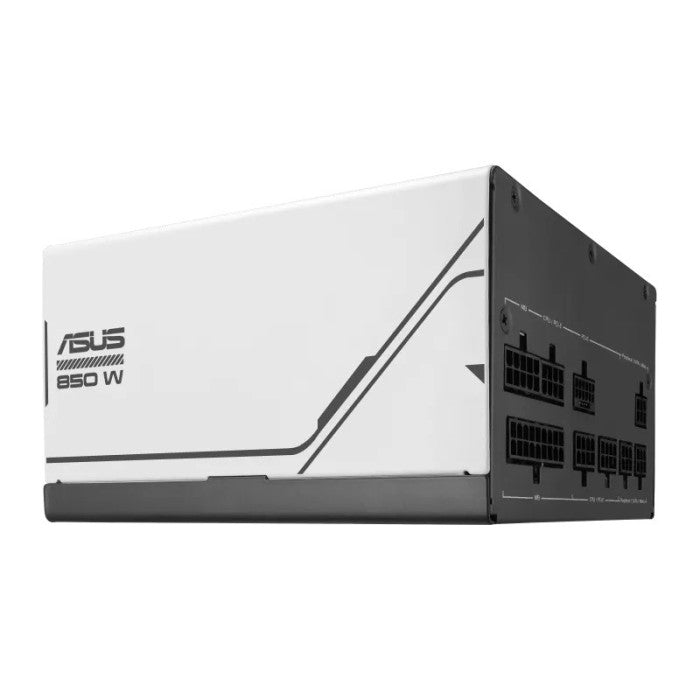

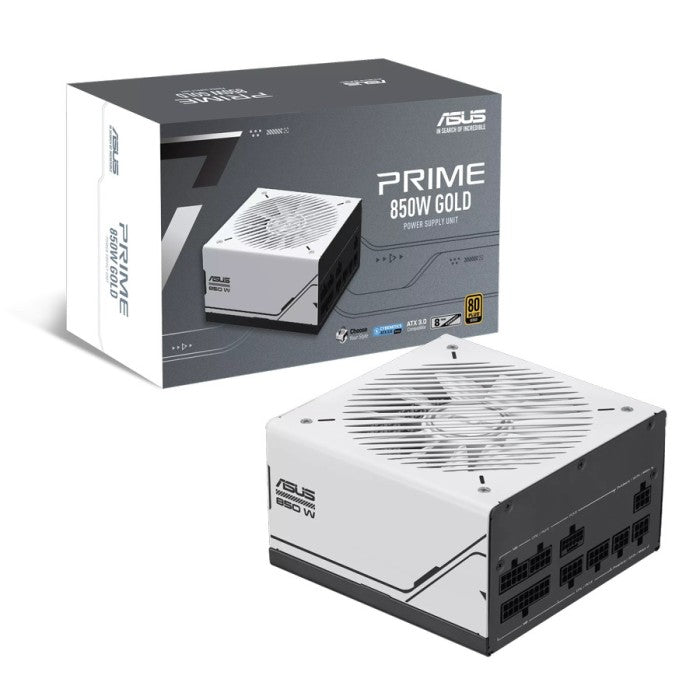

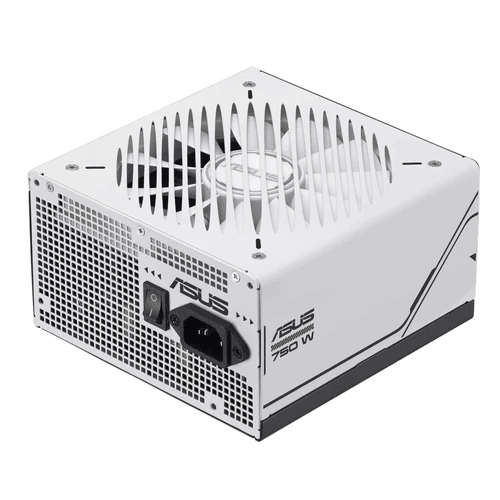

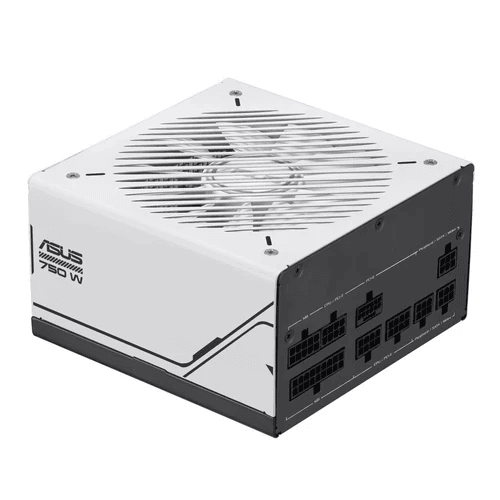

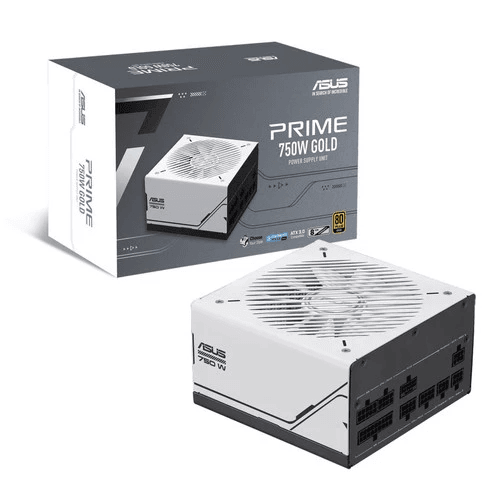

ASUS Prime AP750G/AP850G 750W/850W ATX 3.0 with PCIe GEN 5.0 graphics card Full Modular 80 Plus® Gold Power Supply (8 Year Warranty)

ASUS Prime AP750G/AP850G 750W/850W ATX 3.0 with PCIe GEN 5.0 graphics card Full Modular 80 Plus® Gold Power Supply (8 Year Warranty)

Regular price $209.00 SGD
Regular price Sale price $209.00 SGD
Sale Sold out
MODEL

ASUS Prime AP750G/AP850G 750W/850W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs

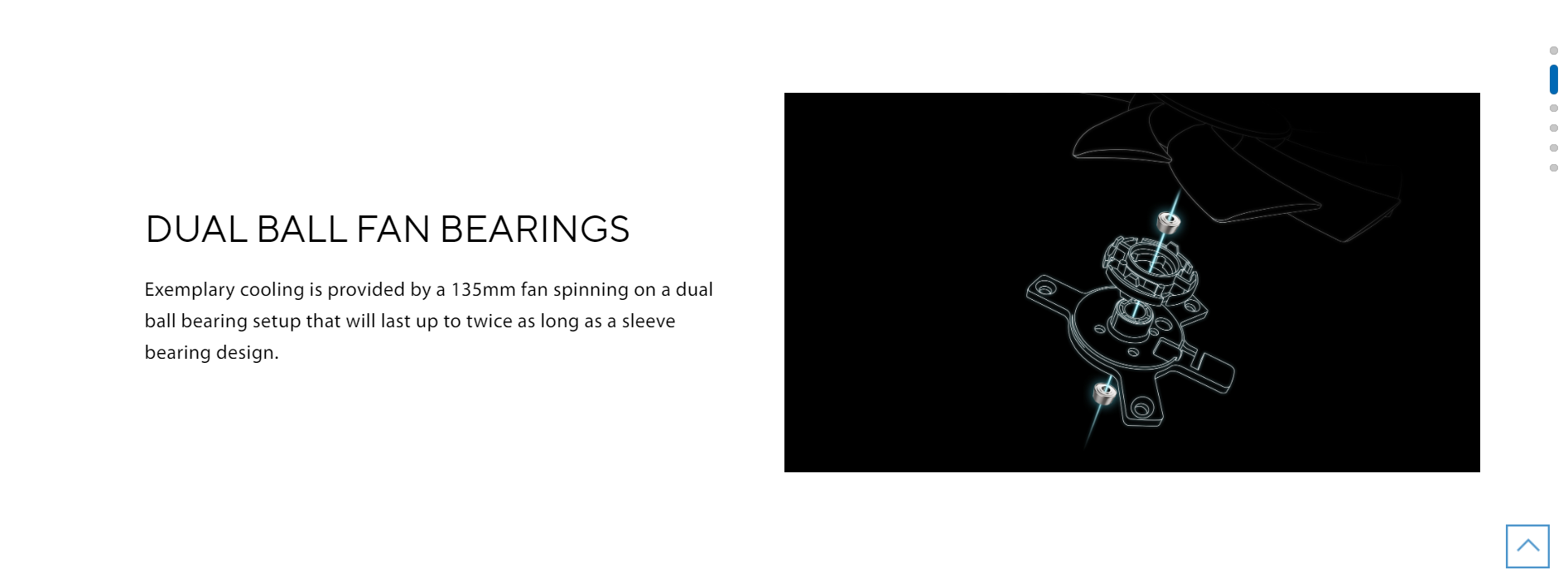

  • Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.

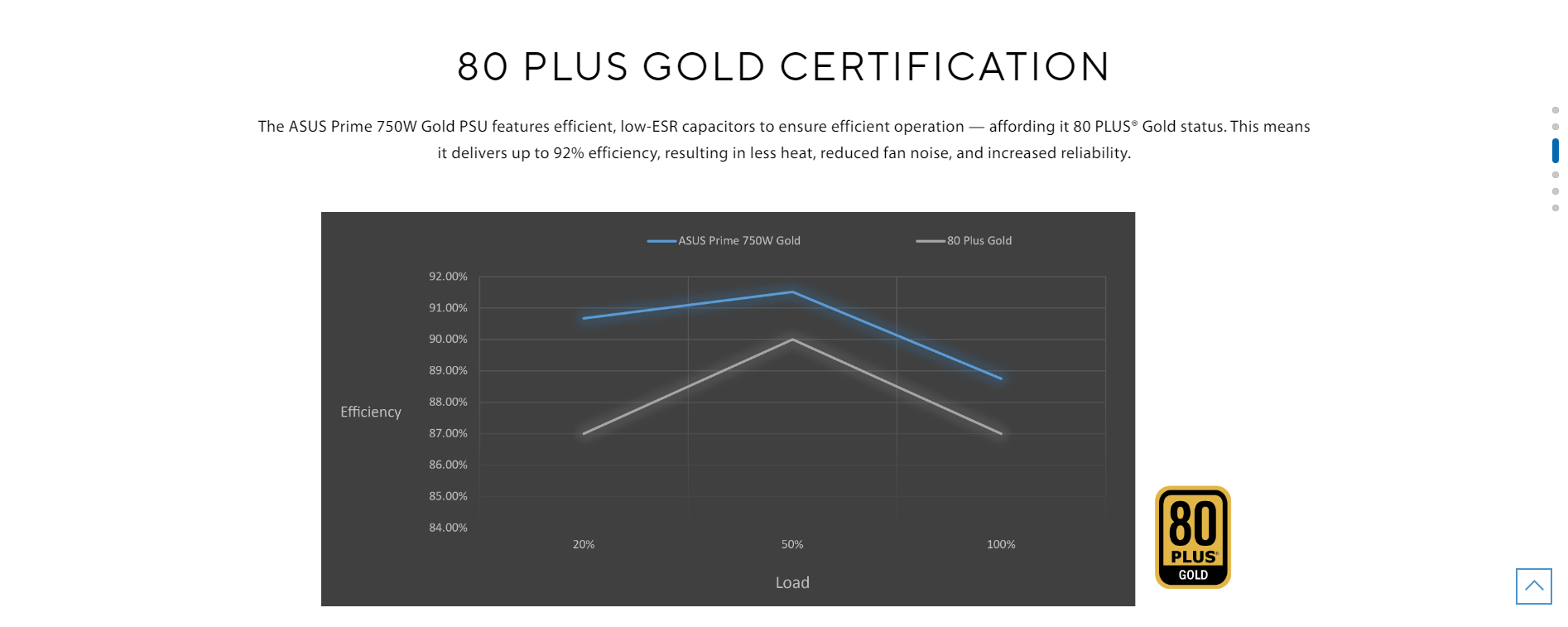

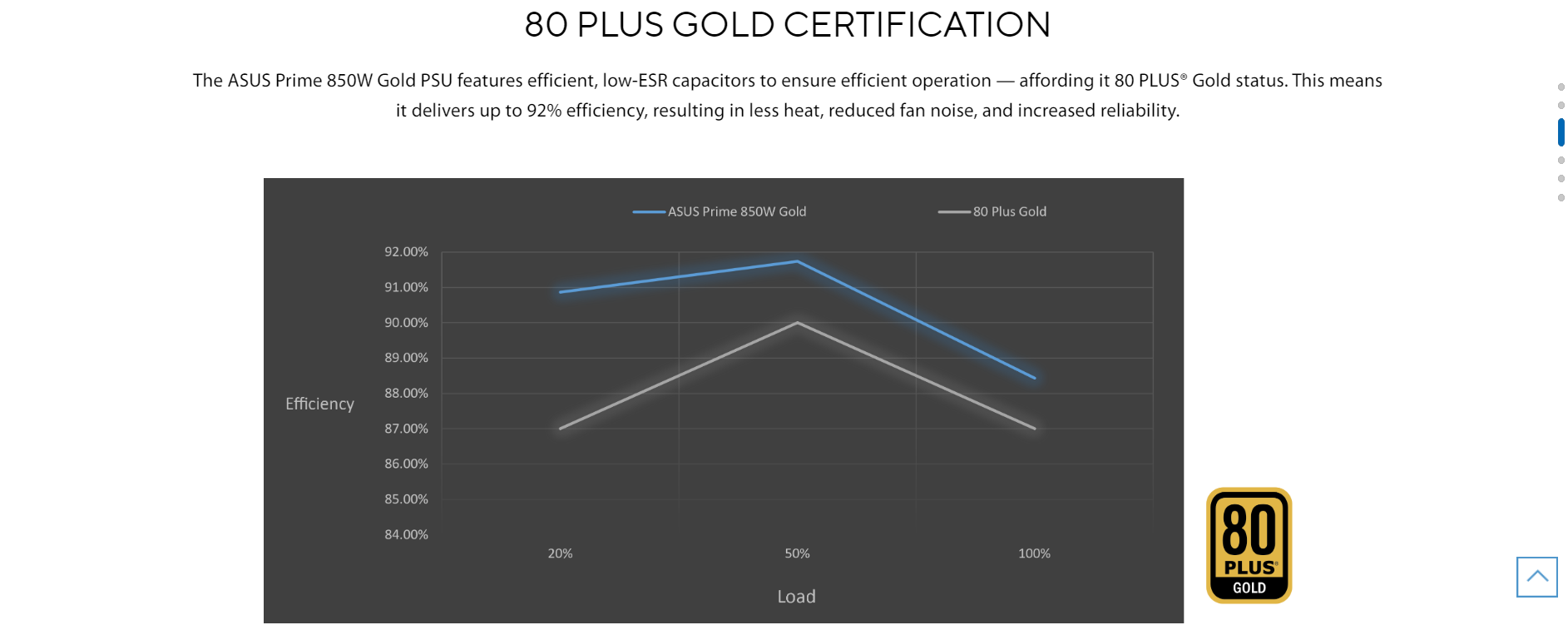

  • An 80 Plus Gold Certification is the result of low-ESR capacitors and other premium components.

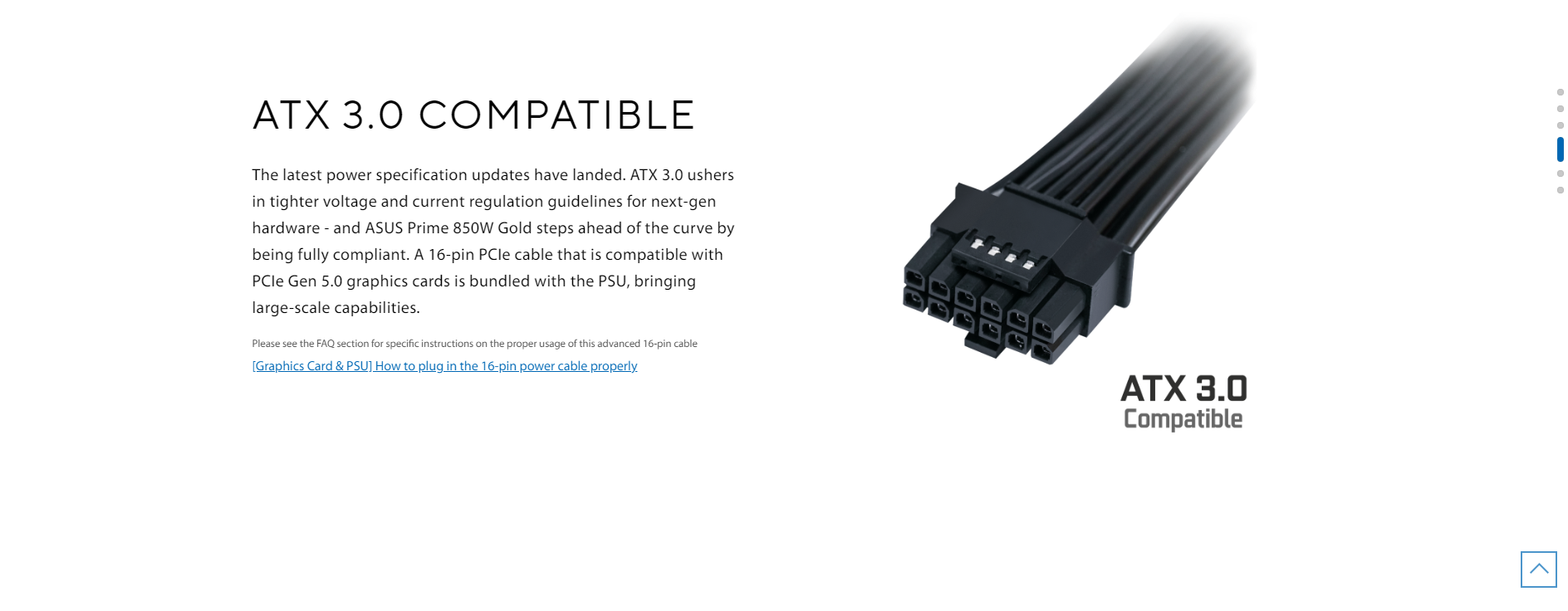

  • ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards.
  • 8-year warranty included.



SPECIFICATIONS

Model : AP-750G / AP-850G
Intel Form Factor : ATX12V
ATX 3.0 : Yes
Dimensions : 150 x 150 x 86 mm
Efficiency : 80Plus Gold

Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials : ROHS

AC Input Range : 100-240Vac
DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

Maximum Load :
-
20A20A62A 0.3A 2.5A(750W)
- 20A20A70.5A 0.3A 2.5A(850W)

Combined Load :
- 110W 110W 744W 3.6W 12.5W (750W)
- 110W 110W 846W 3.6W 12.5W (850W)

Total Output : 750W / 850W

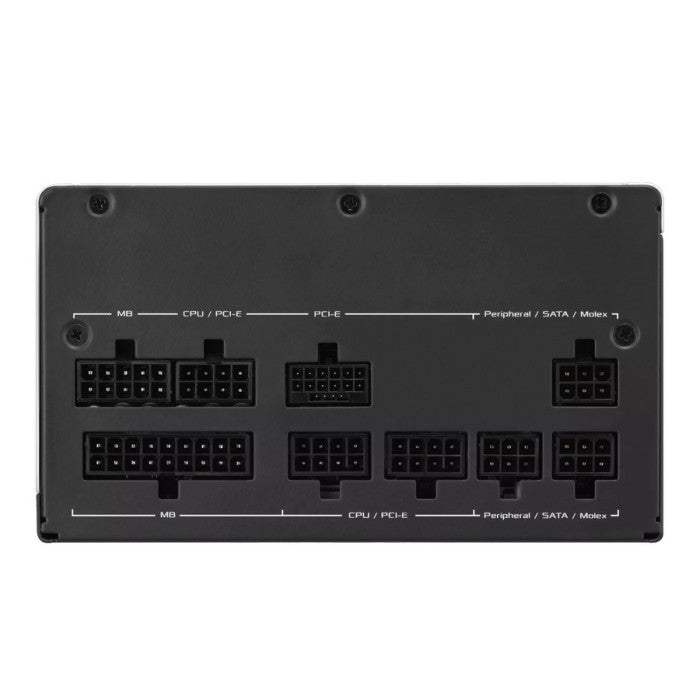

Cable Connectors :
• MB 24/20-pin x 1
• CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
 PERIPHERAL x 3

Package Contents :
• Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
 User Manual x 1

Weight : 1.466 kg (single PSU - 750W) 1.502 kg (single PSU - 850W)

0dB Fan Button : No
