ASUS ZenScreen MB16AHG portable monitor - 16" (15.6" viewable) FHD (1920x1080), IPS, 144Hz, USB-C, Mini-HDMI, Freesync Premium™, Ergo kickstand, Tripod socket, Flicker Free, Low Blue Light

ASUS ZenScreen MB16AHG is a 15.6-inch IPS FHD portable monitor with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates for the smoother-than-ever experience. A fold-out adjustable stand enables a multitude of tilt angles to ensure comfortable viewing. Dual USB-C™ and mini-HDMI connectivity enables displaying content from a wide-range of devices, so you can enjoy an expansive view for the best work and entertainment experiences, wherever you go.

Fluid viewing experience with 144Hz Smooth Motion

ASUS ZenScreen MB16AHG with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates. It refreshes content on the display 2.4-time faster than the one with a standard 60Hz refresh rate, giving you more fluid animation in video, casual gaming, and day-to-day work, can all benefit from the smoother-than-ever experience. It is a great fit for augmenting what you can do with your laptop.

Sleek and portable design

ASUS ZenScreen MB16AHG is ideal for life on the road. This sleek portable display weighs 0.92kg and has a slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere. A sleeve included in the package helps protect the MB16AHG from dust and scratches while traveling.

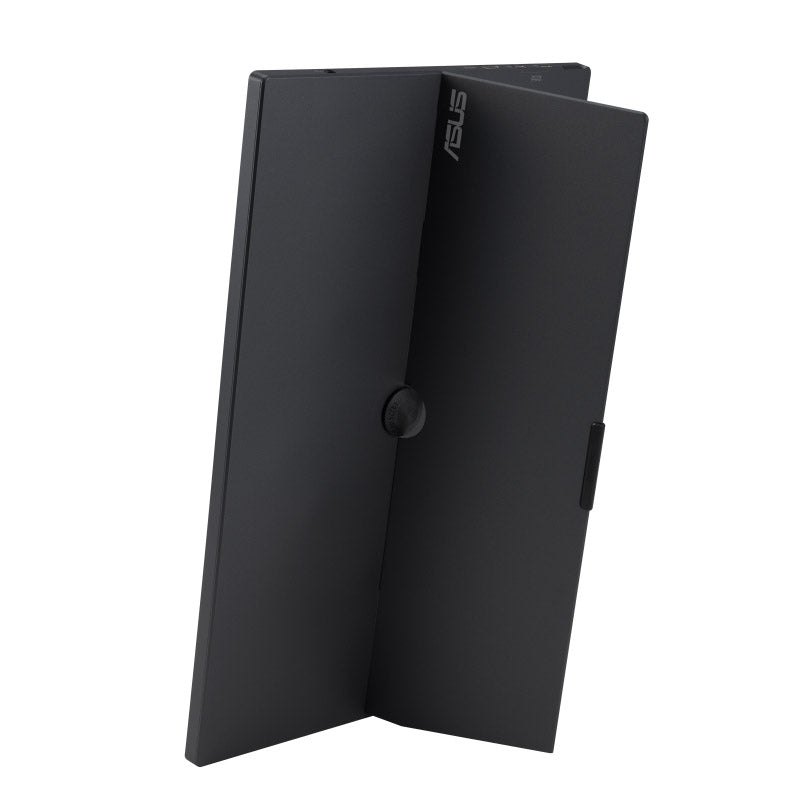

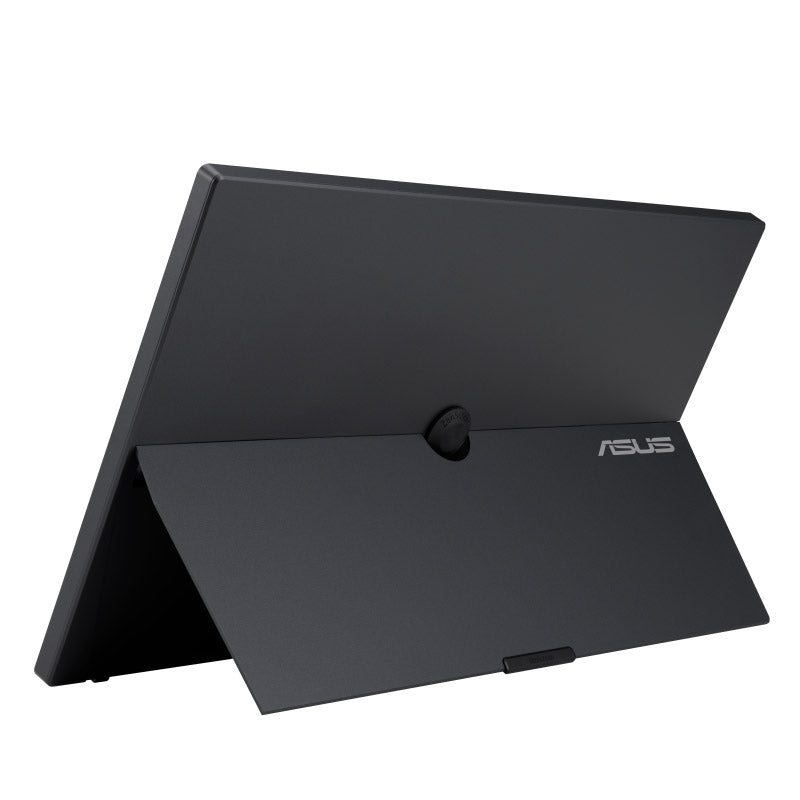

Flexible viewing positions

A fold-out kickstand props ASUS ZenScreen MB16AHG up on any flat surface and offers easy tilt adjustments to ensure comfortable viewing angles and working positions. In addition, a ¼ -inch threaded tripod socket at the rear lets you attach the monitor to a standard tripod* or table mount.

Automatic screen orientation

ASUS ZenScreen MB16AHG includes a G-sensor that can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your mobile devices. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
*Software required. Auto-rotate function works only with the Windows operating system.

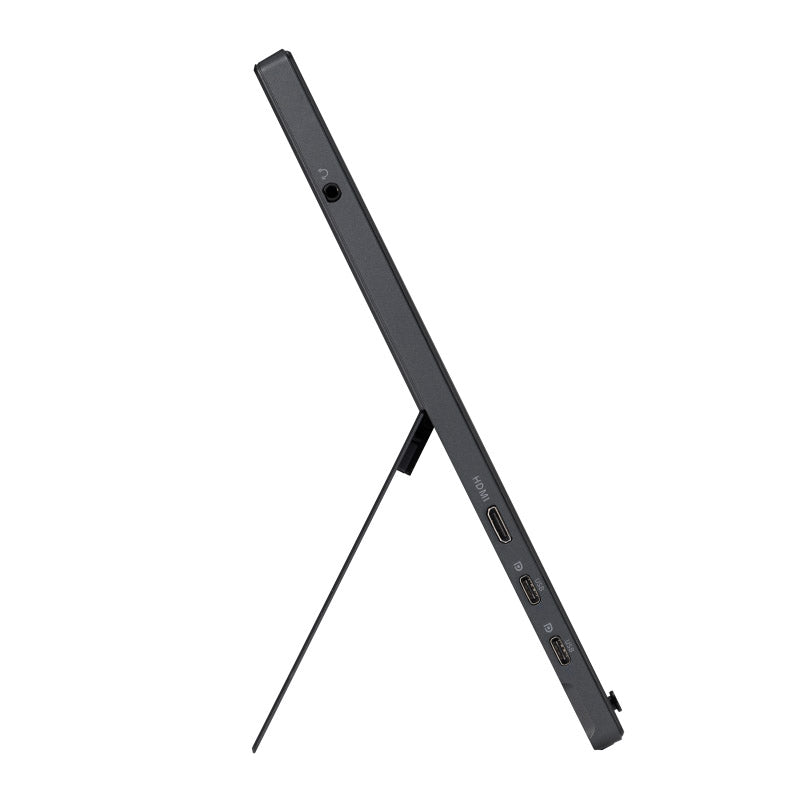

Rich connectivity

ASUS ZenScreen MB16AHG includes a variety of I/O ports to cater to a range of devices. USB-C port allow audio-video signals transmission over a single cable. There’s also a mini HDMI port for a wired connection to various input sources.

• Mini HDMI x 1
• USB-C x 2 (with DisplayPort Alt Mode and power input)
• Headphone jack x 1



Protect your eyes with ASUS Eye Care technology

• ASUS Blue Light Filter / ASUS Flicker-free technology

SPECIFICATIONS

Model: ASUS ZenScreen MB16AHG

Display

• Panel Size (inch) : 15.6
• Aspect Ratio : 16:9
• Display Viewing Area (H x V) : 344.16 x 193.59 mm
• Display Surface : Non-Glare
• Backlight Type : LED
• Panel Type : IPS
• Viewing Angle (CR≧10, H/V) : 178°/ 178°
• Pixel Pitch : 0.179mm
• Resolution : 1920x1080
• Color Space (sRGB) : 100%
• Brightness (Typ.) : 300cd/㎡
• Contrast Ratio (Typ.) : 1200:1
• Display Colors : 16.7M
• Response Time : 3ms(GTG)
• Refresh Rate (Max) : 144Hz
• Flicker-free : Yes



Video Feature

• Trace Free Technology : Yes
• SPLENDID Technology : Yes
• Color Temp. Selection : Yes (4 modes)
• GamePlus : Yes
• QuickFit : Yes (Photo/Alignment Grid)
• HDCP : Yes, 1.4
• VRR Technology : Yes (Adaptive-Sync)
• DisplayWidget : Yes, DisplayWidget Lite
• Low Blue Light : Yes



I/O Ports

• USB-C x 2 (DP Alt Mode)
• Mini HDMI x 1
• Earphone Jack : Yes



Signal Frequency

• Digital Signal Frequency : HDMI: 30-180 KHz(H) / 60-144Hz (V)
• USB-C: 180 KHz(H) / 60-144Hz (V)



Power Consumption

• Power Consumption : ≦17W*
• Power Saving Mode : <0.5W
• Power Off Mode : <0.3W
• Voltage : 100-240V, 50/60Hz



Mechanical Design

• Tilt : Yes (+15° ~ +35°)
• Height Adjustment : No
• 1/4" Tripod Socket : Yes



Dimensions (Esti.)

• Phys. Dimension without Stand (W x H x D) : 35.99 x 22.68 x 1.20 cm (14.17" x 8.93" x 0.47")
• Box Dimension (W x H x D) : 48.50 x 30.50 x 7.60 cm (19.09" x 12.01" x 2.99")



Weight (Esti.)

• Net Weight without Stand : 0.92 kg (2.03 lbs)
• Gross Weight : 2.78 kg (6.13 lbs)



Accessories (vary by regions)

• Mini HDMI to HDMI cable
• Power adapter
• Quick start guide
• USB-C cable
• USB-C to A cable
• Warranty Card
• ZenScreen sleeve



Operation Temperature / Humidity

• Operation Temperature : 0~40℃
• Operation Humidity : 20-90% RH



Certificate

• TÜV Flicker-free
• TÜV Low Blue Light
• AMD FreeSync Premium
