ASUS

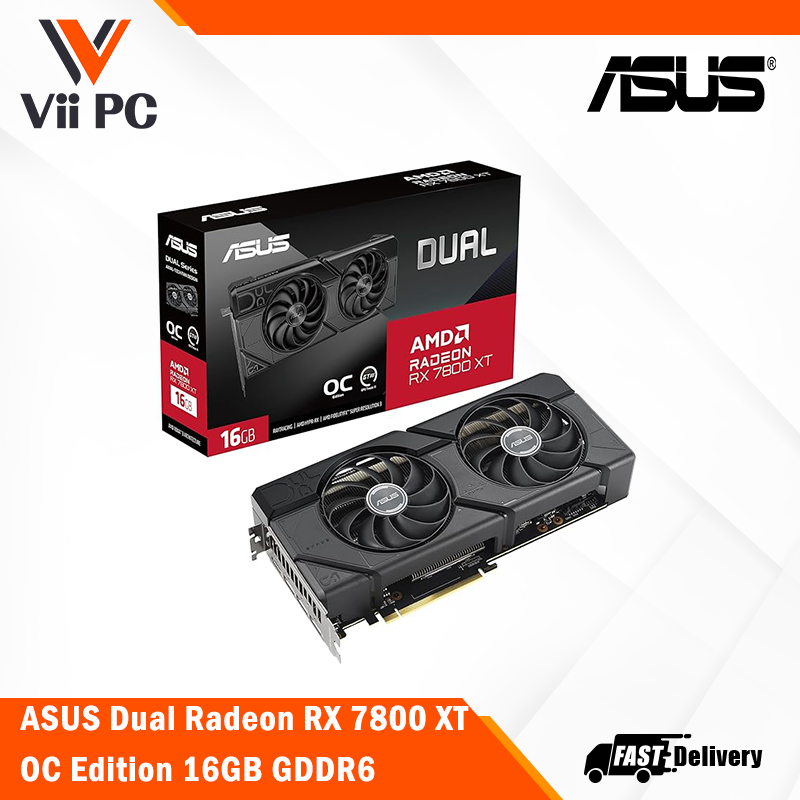

ASUS Dual Radeon RX 7800 XT OC Edition 16GB GDDR6 Graphics Card

ASUS Dual Radeon RX 7800 XT OC Edition 16GB GDDR6 Graphics Card

Regular price $703.00 SGD
Regular price Sale price $703.00 SGD
Sale Sold out

ASUS Dual Radeon™ RX 7800 XT OC Edition 16GB GDDR6 (DUAL-RX7800XT-O16G)

ASUS Dual Radeon™ RX 7800 XT OC Edition 16GB GDDR6 is armed to dish out frames and keep vitals in check.

  • OC Mode: up to 2520 MHz (Boost Clock)/up to 2213 MHz (Game Clock)
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • Auto-extreme technology uses automation to enhance reliability.
  • protective backplate prevents PCB flex and trace damage.
  • GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

2x Fans. 2x Fun.

Delivering the latest AMD RDNA™ 3 architecture experience in its purest form, the ASUS Dual Radeon™ RX 7800 XT OC Edition melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.

COOLING

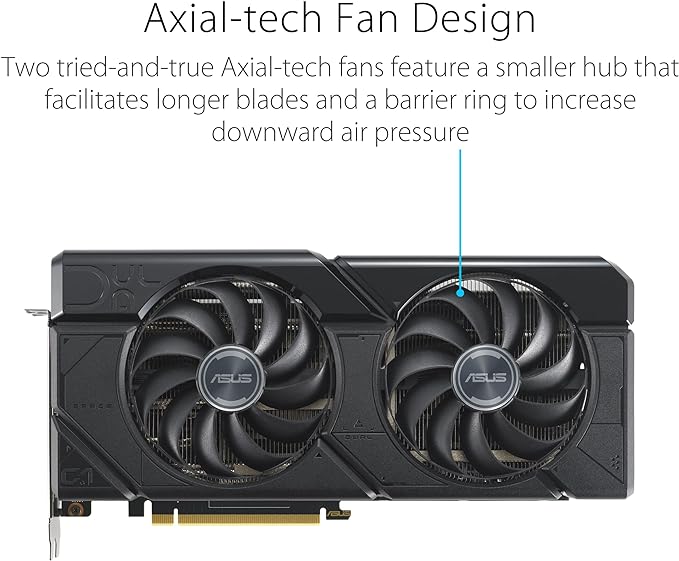

Axial-tech Fan Design - Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

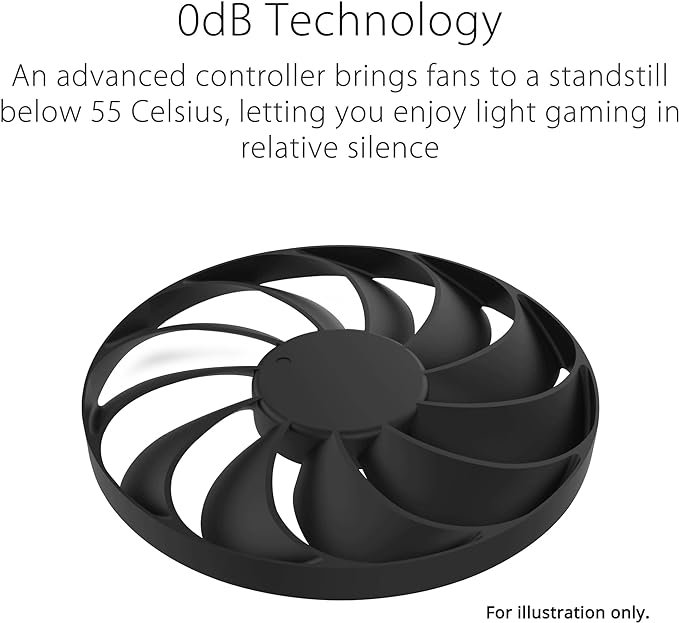

0dB Technology - Quiet intelligence

An advanced onboard controller brings fans to a standstill when the GPU core temperature is below 55 Celsius, letting you enjoy light gaming in relative silence. As temps rise past the threshold, the fans automatically start up again.

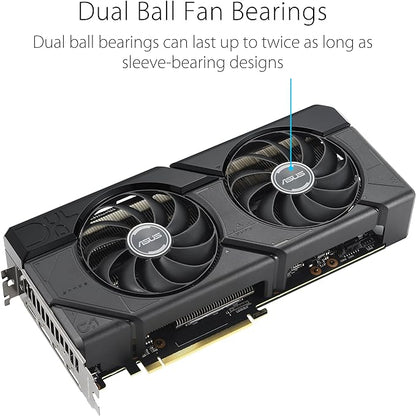

Dual Ball Fan Bearings - 2x longer lifespan

Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

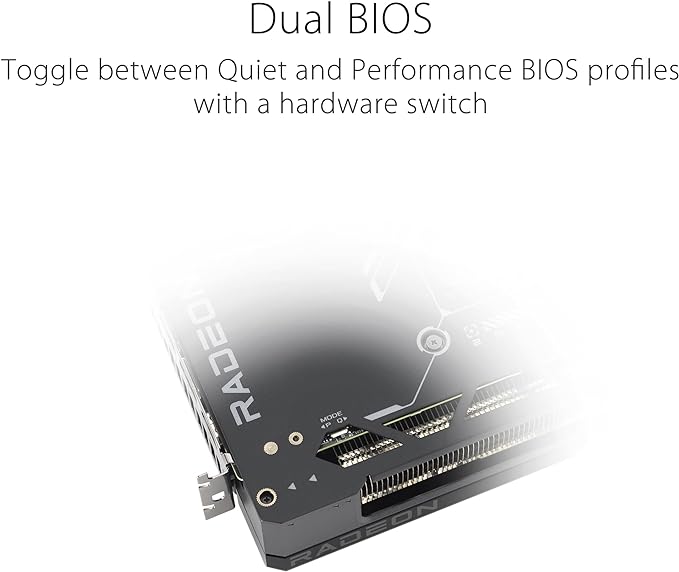

Dual BIOS - Choose wisely

Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.

ENGINEERING

Auto-Extreme Technology - Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

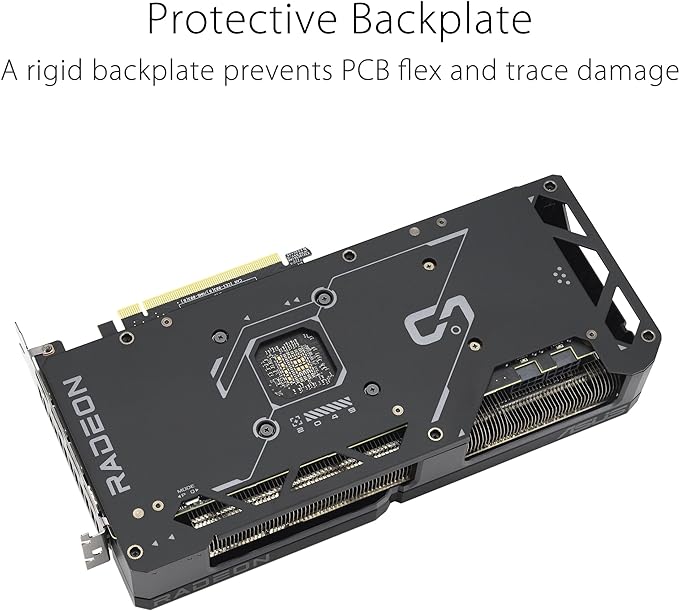

Protective Backplate - That's so metal!

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.

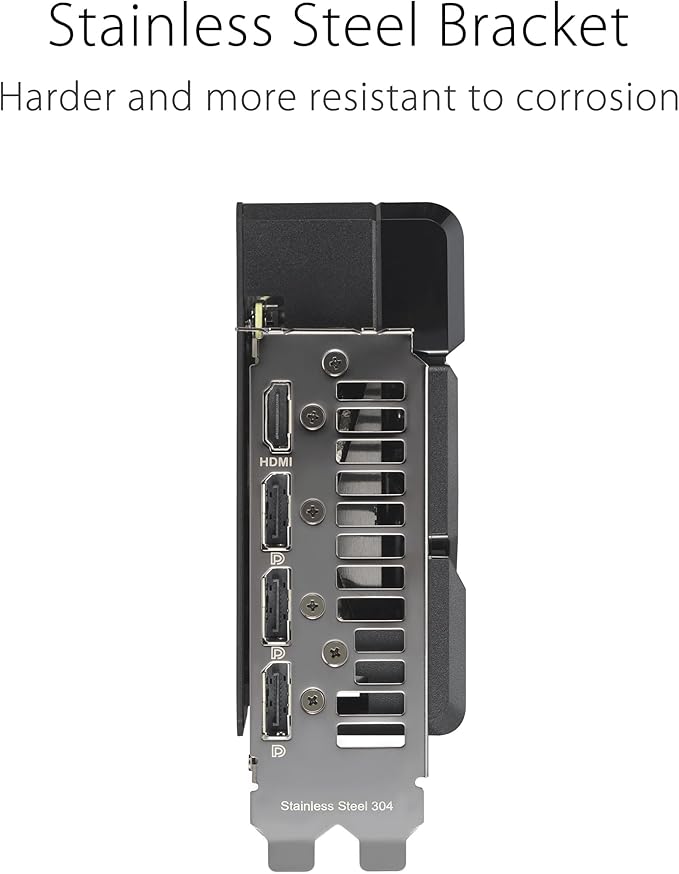

Stainless Steel Bracket - Steel yourself

The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

    TECH SPECIFICATIONS

    • Model: DUAL-RX7800XT-O16G
    • Graphic Engine: AMD Radeon™ RX 7800 XT
    • Bus Standard: PCI Express 4.0
    • OpenGL: OpenGL®4.6
    • Video Memory: 16GB GDDR6

    • Engine Clock OC mode:
      • Up to 2520 MHz (Boost Clock) / up to 2213 MHz (Game Clock)
      • Default mode : up to 2475 MHz (Boost Clock) / up to 2169 MHz (Game Clock)

    • Stream Processors: 3840
    • Memory Speed: 19.5 Gbps
    • Memory Interface: 256-bit
    • Resolution: Digital Max Resolution 7680 x 4320

    • Interface:
      • Yes x 1 (Native HDMI 2.1)
      • Yes x 3 (Native DisplayPort 2.1)
      • HDCP Support: Yes (2.3)

    • Maximum Display Support: 4
    • NVlink/Crossfire Support: No
    • Accessories: 1 x Thank you card / 1 x Speedsetup Manual

    • Software:  ASUS GPU Tweak III & Drivers: please download all software from the support site.

    • Dimensions: 279.9 x 133.9 x 49.3 mm (11.02 x 5.27 x 1.94 inch)
    • Recommended PSU: 750W
    • Power Connectors: 2 x 8-pin
    • Slot: 2.47 slot

    Note:
    *Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * If two DisplayPort 2.1 monitors are connected, a third monitor will be limited to DisplayPort 1.4 functionality.
