ARCTIC Liquid Freezer III 240/360/420 BLACK Multi Compatible All-in-One CPU Liquid Cooler
(Compatible with LGA1851,LGA1700,AM5,AM4 - Silent and Powerful VRM Fan - Efficient PWM controlled)
(Intel will release the new Arrow Lake processors on the LGA1851 socket in the future.)
FEATURES :

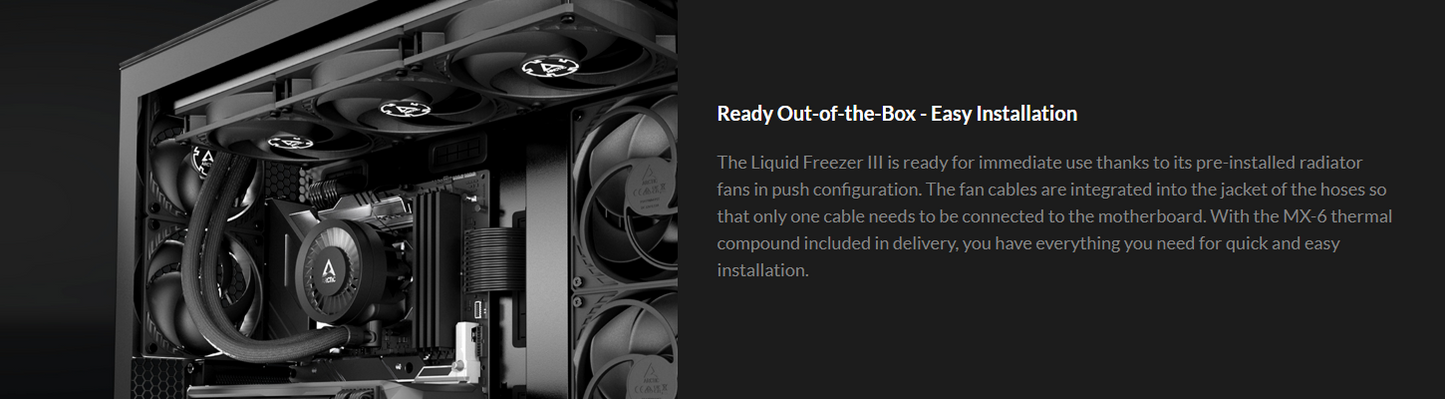

• Ready Out-of-the-Box - Easy Installation
• Future-Proof Compatibility (LGA1851/LGA1700/AM5/AM4 socket)
• Silent and Powerful VRM Fan
• Contact Frame for Intel LGA1700 and LGA1851

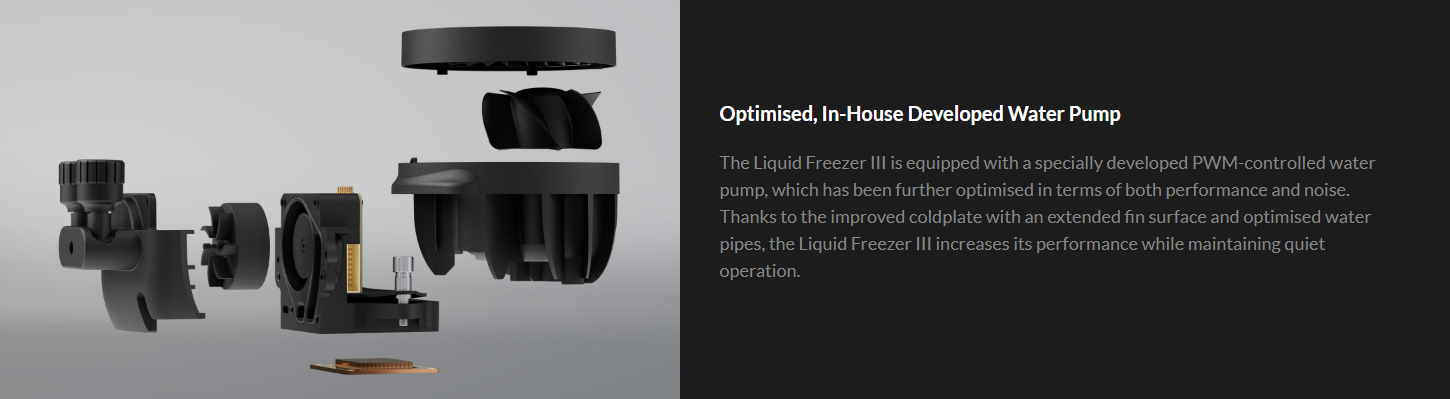

• Optimised, In-House Developed Water Pump

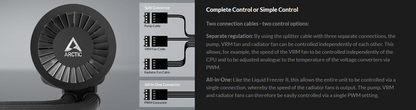

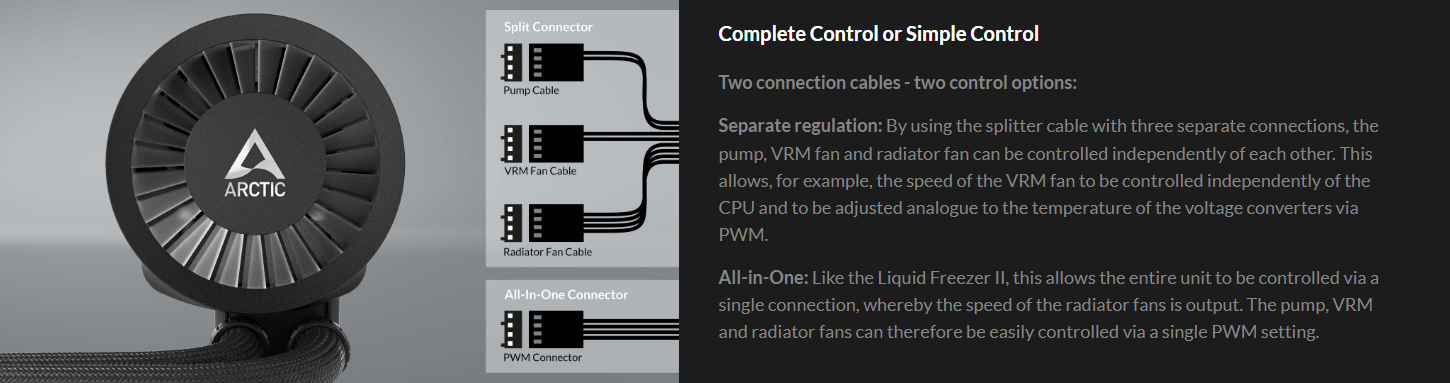

• Complete Control or Simple Control (Two connection cables - two control options: Separate regulation and All-in-One)

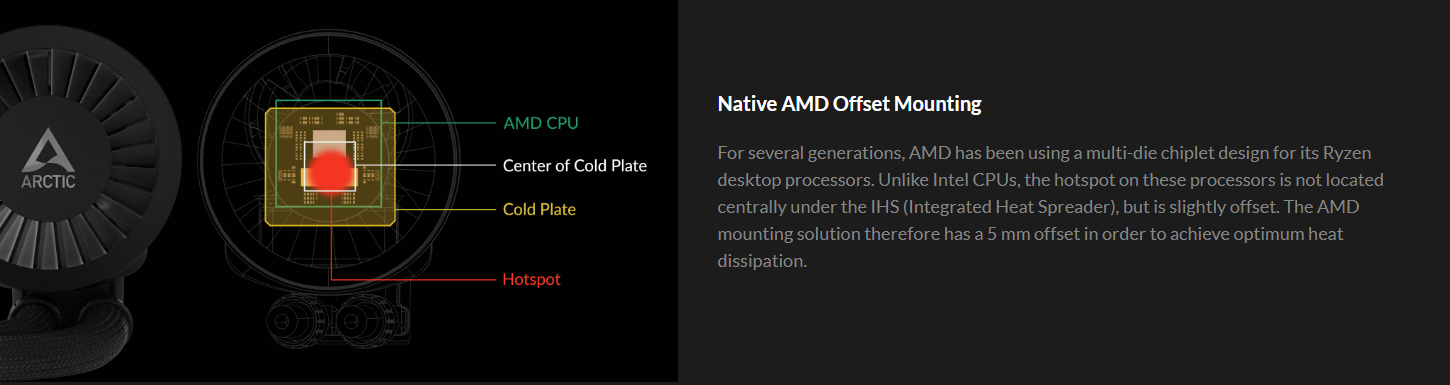

• Native AMD Offset Mounting

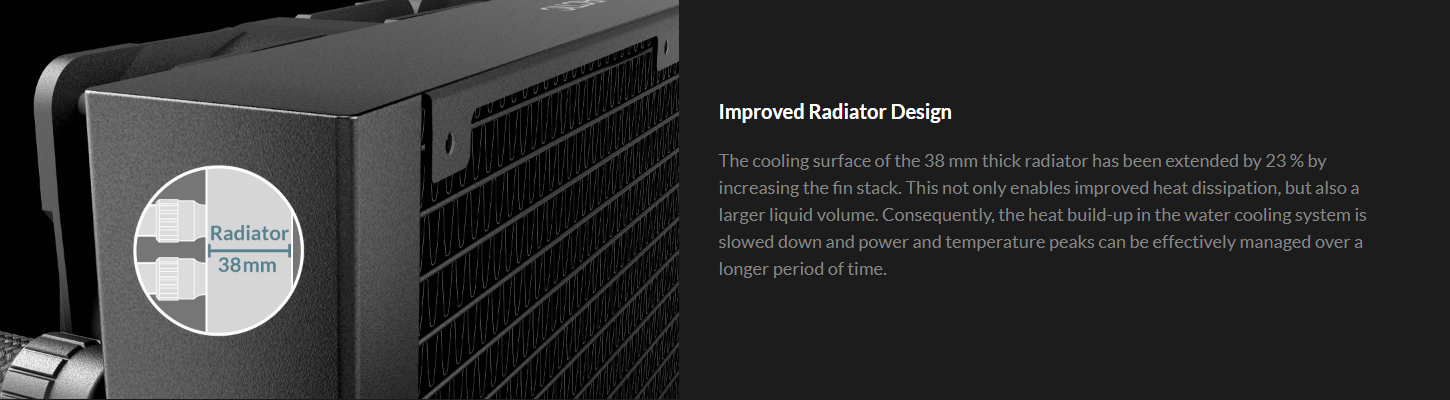

• Improved Radiator Design (38 mm thick radiator has been extended by 23 % by increasing the fin stack)

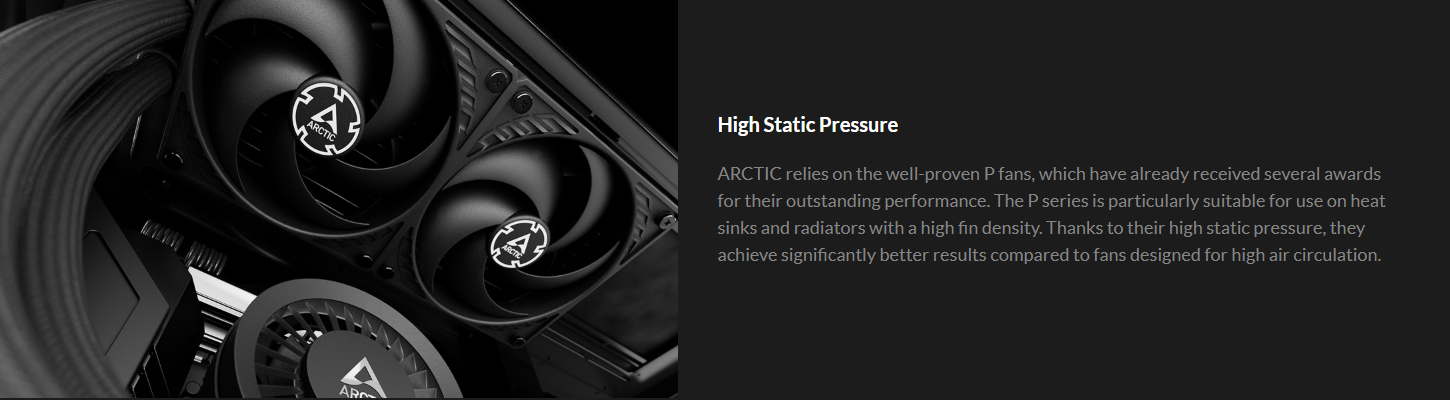

• High Static Pressure
• Limited Compatibility with Few Motherboards

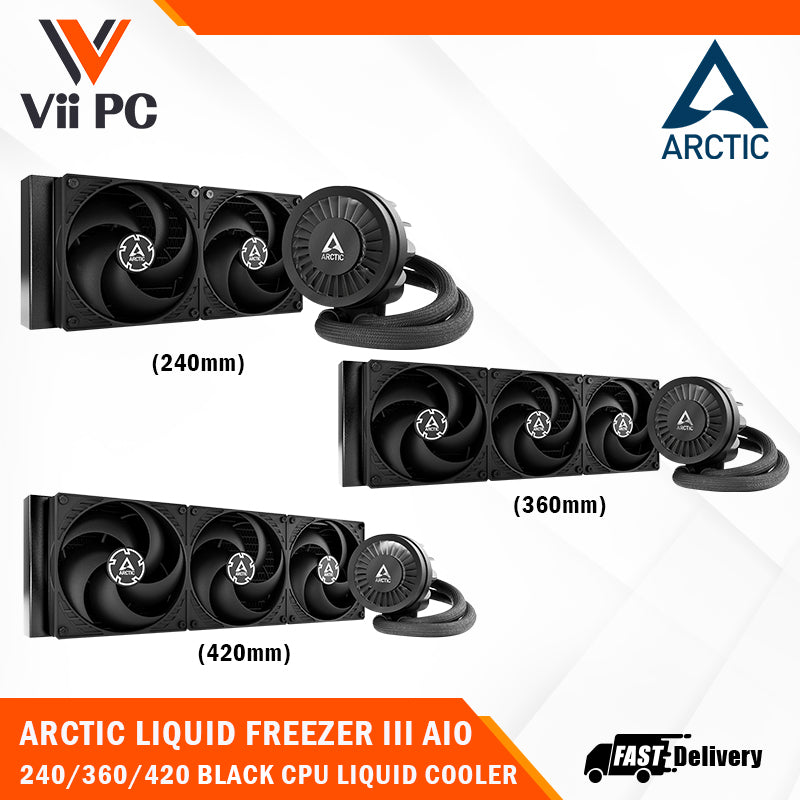

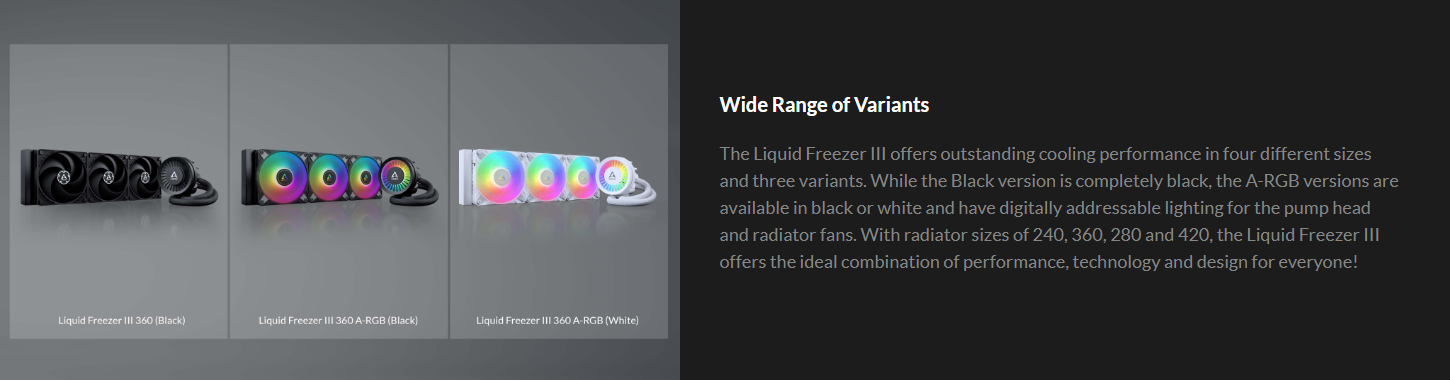

• Wide Range of Variants (240/360/420 - BLACK)
• Quality You Can Rely On (6 Years Warranty)
TECHNICAL SPECIFICATIONS & MANUAL
GENERAL DATA :
► COMPATIBILITY
- Intel : 1700
- AMD : AM5, AM4
- PI | NNPI :
• 240mm - 308 | 230
• 360mm - 338 | 309
• 420mm - 374 | 339
- TIM : MX-6 (0.8 g)
- Warranty : 6 Years
- Operating Ambient Temperature : 0—40 °C
- Weight :
• 240mm - 1490 g
• 360mm - 1840 g
• 420mm - 2235 g
- All-In-One Connector : 4-Pin PWM Connector
- Split Connector : 3x 4-Pin PWM Connector
► PUMP
- Pump : 800—2800 rpm (PWM controlled)
- Current | Voltage : 0.35 A | 12 V DC
- Cold Plate : Copper, Micro Skived Fins
- Tube Length : 450 mm
- Tube Diameter :
• Outer: 12.4 mm
• Inner: 6.0 mm
► RADIATOR
- Material : Aluminium
- Dimensions :
• 240mm - 277 (L) x 120 (W) x 38 (H) mm
• 360mm - 398 (L) x 120 (W) x 38 (H) mm
• 420mm - 458 (L) x 130 (W) x 38 (H) mm
► VRM MODULE
- VRM Fan : 400—2500 rpm (PWM controlled)
- Current | Voltage : 0.05 A | 12 V DC
► RADIATOR FANS
- Fan :
• 240mm - 2x P12 PWM
• 360mm - 3x P12 PWM
• 420mm - 3x P14 PWM
- Speed :
• 240mm , 360mm - 200—1800 rpm
• 420mm - 200—1700 rpm
- Air Flow :
• 240mm , 360mm - 56.30 cfm | 95.65 m3/h
• 420mm - 72.80 cfm | 123.76 m3/h
- Static Pressure :
• 240mm , 360mm - 2.20 mmH2O
• 420mm - 2.40 mmH2O
- Bearing : Fluid Dynamic Bearing
- Current | Voltage :
• 240mm , 360mm - 0.10 A | 12 V DC
• 420mm - 0.12 A | 12 V DC
- Cable Length: 40 mm
- Connector : 4-Pin PWM Connector
► PACKAGING
- 240mm :
• Width : 171 mm
• Height : 142 mm
• Length : 294 mm
• Weight : 1.9 kg
- 360mm :
• Width : 167 mm
• Height : 142 mm
• Length : 414 mm
• Weight : 2.375 kg
- 420mm :
• Width : 328 mm
• Height : 158 mm
• Length : 447 mm
• Weight : 2.9 kg
