AMD

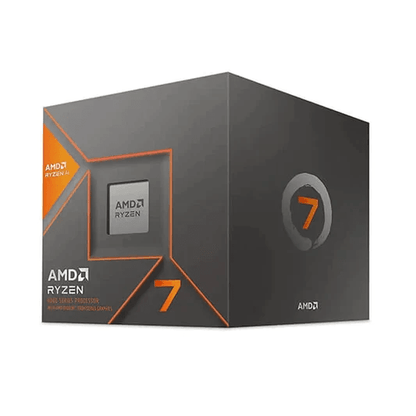

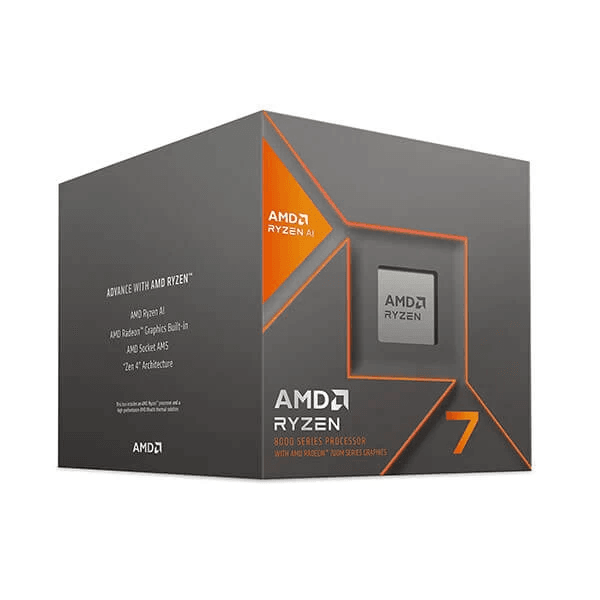

AMD Ryzen™ 7 8700G With Wraith Spire Cooler Ryzen 7 8000 G-Series 8-Cores, 16-threads, 4.2GHz, Socket AM5, 65W, Desktop Processors

AMD Ryzen™ 7 8700G With Wraith Spire Cooler Ryzen 7 8000 G-Series 8-Cores, 16-threads, 4.2GHz, Socket AM5, 65W, Desktop Processors

Regular price $569.00 SGD
Regular price Sale price $569.00 SGD
Sale Sold out

AMD Ryzen™ 7 8700G With Wraith Spire Cooler Ryzen 7 8000 Series 8-Cores, 16-threads, 4.2GHz, Socket AM5, 65W, Desktop Processors



  • AMD Ryzen™ 7 8000 G-Series Desktop Processors with Radeon™ Graphics
  • # of CPU Cores : 8
  • # of Threads : 16
  • Base Clock : 4.2GHz
  • System Memory Type : DDR5
  • Integrated Graphics : Yes
  • Graphics Model : AMD Radeon™ 780M



GENERAL SPECIFICATIONS

Platform: Desktop

Product Family: AMD Ryzen™ Processors

Product Line: AMD Ryzen™ 7 8000 G-Series Desktop Processors with Radeon™ Graphics

AMD PRO Technologies: No

Consumer Use: Yes

Regional Availability: Global

Former Codename: "Phoenix"

Architecture: "Zen 4"

# of CPU Cores: 8

Multithreading (SMT): Yes

# of Threads: 16

Max. Boost Clock: Up to 5.1GHz

Base Clock: 4.2GHz

L2 Cache: 8MB

L3 Cache: 16MB

Default TDP: 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: TSMC 4nm FinFET

CPU Compute Die (CCD) Size: 178mm²

Package Die Count: 1

Unlocked for Overclocking: Yes

AMD EXPO™ Memory Overclocking Technology: Yes

Precision Boost Overdrive: Yes

Curve Optimizer Voltage Offsets: Yes

AMD Ryzen™ Master Support: Yes

CPU Socket: AM5

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Max. Operating Temperature (Tjmax): 95°C

*OS Support:

• Windows 11 - 64-Bit Edition

• Windows 10 - 64-Bit Edition

• RHEL x86 64-Bit

• Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.



CONNECTIVITY

Native USB 4 (40Gbps) Ports: 2

Native USB 3.2 Gen 2 (10Gbps) Ports: 2

Native USB 2.0 (480Mbps) Ports: 1

PCI Express® Version: PCIe® 4.0

Native PCIe® Lanes (Total/Usable): 20 / 16

NVMe Support: Boot, RAID0, RAID1

System Memory Type: DDR5

Memory Channels: 2

Max. Memory: 256GB

System Memory Subtype: UDIMM

Max Memory Speed:

• 2x1R - DDR5-5200

• 2x2R - DDR5-5200

• 4X1R - DDR5-3600

• 4x2R - DDR5-3600



GRAPHICS CAPABILITIES

Integrated Graphics: Yes

Graphics Model: AMD Radeon™ 760M

Graphics Core Count: 12

Graphics Frequency: 2900 MHz

DirectX® Version: 12

DisplayPort™ Version: 2.1

DisplayPort Extensions

• HDR Metadata

• Adaptive-Sync

• UHBR10

DisplayPort Max Refresh Rates (SDR)

• 7680x4320 @ 60Hz

• 3840x2160 @ 240Hz

• 3440x1440 @ 360Hz

• 2560x1440 @ 480Hz

• 1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR)

• 7680x4320 @ 60Hz

• 3840x2160 @ 240Hz

• 3440x1440 @ 360Hz

• 2560x1440 @ 480Hz

• 1920x1080 @ 600Hz

HDMI® Version: 2.1

HDCP Version Supported: 2.3

USB Type-C® DisplayPort™ Alternate Mode: Yes

Multi-Monitor Support: Yes

Max Displays: 4

AMD FreeSync™: Yes

Wireless Display: Miracast

Max Video Encode Bandwidth (SDR)

• 1080p630 8bpc H.264

• 1440p373 8bpc H.264

• 2160p175 8bpc H.264

• 1080p630 8bpc H.265

• 1440p373 8bpc H.265

• 2160p175 8bpc H.265

• 4320p43 8bpc H.265

• 1080p864 8/10bpc AV1

• 1440p513 8/10bpc AV1

• 2160p240 8/10bpc AV1

• 4320p60 8/10bpc AV1

Max Video Decode Bandwidth

• 1080p60 8bpc MPEG2

• 1080p60 8bpc VC1

• 1080p786 8/10bpc VP9

• 2160p196 8/10bpc VP9

• 4320p49 8/10bpc VP9

• 1080p1200 8bpc H.264

• 2160p300 8bpc H.264

• 4320p75 8bpc H.264

• 1080p786 8/10bpc H.265

• 2160p196 8/10bpc H.265

• 4320p49 8/10bpc H.265

• 1080p960 8/10bpc AV1

• 2160p240 8/10bpc AV1

• 4320p60 8/10bpc AV1

AMD SmartAccess Memory: Yes



AI ENGINE CAPABILITIES

Brand Name: AMD Ryzen™ AI

AMD Ryzen™ AI: Available

Performance: Up to 16 TOPS



SECURITY, VIRTUALIZATION, and MANAGEABILITY

AMD Enhanced Virus Protection (NX bit): Yes
