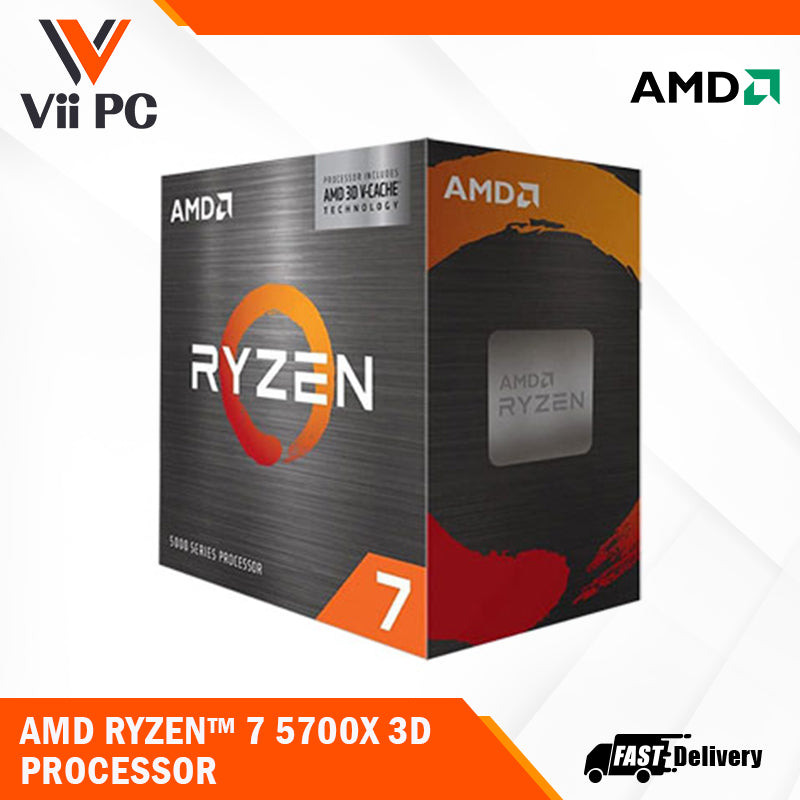

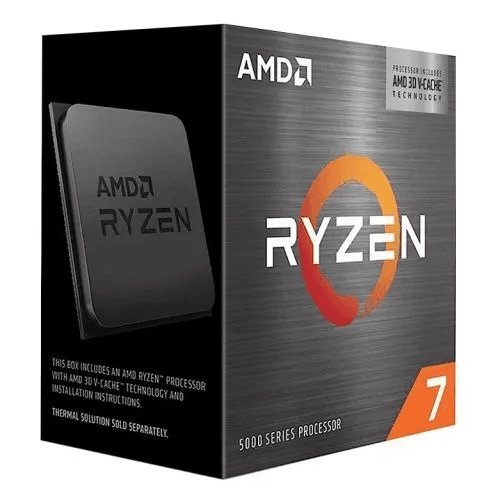

AMD Ryzen™ 7 5700X3D/5700X 3D Without Cooler Ryzen 7 5000 Series 8-Core 3.0GHz Socket AM4 105W Non-Integrated Boxed Processor

AMD Ryzen™ 7 5700X3D/5700X 3D Without Cooler Ryzen 7 5000 Series 8-Core 3.0GHz Socket AM4 105W Non-Integrated Boxed Processor

Regular price $449.00 SGD
Regular price Sale price $449.00 SGD
Sale Sold out

AMD Ryzen™ 7 5700X3D/5700X 3D Ryzen 7 5000 Series 8-Core 3.0GHz Socket AM4 105W Non-Integrated Boxed Processor

(without cooler)



• AMD Ryzen™ 7 Desktop Processors

 # of CPU Cores : 8

• # of Threads : 16

• Base Clock : 3.0GHz

• Supporting Chipsets : X570X470B550B450A520

• System Memory Type : DDR4

• Integrated Graphics : No

• Graphics Model : Discrete Graphics Card Required



GENERAL SPECIFICATIONS

Platform: Boxed Processor

Market Segment: Enthusiast Desktop

Product Family: AMD Ryzen™ Processors

Product Line: AMD Ryzen™ 7 Desktop Processors

Consumer Use: Yes

Commercial Use: No

Regional Availability: Global, China, NA, EMEA, APJ, LATAM

Former Codename: "Vermeer"

Architecture: "Zen 3"

# of CPU Cores: 8

Multithreading (SMT): Yes

# of Threads: 16

Max. Boost Clock: Up to 4.1GHz

Base Clock: 3.0GHz

L1 Cache: 512KB

L2 Cache: 4MB

L3 Cache: 96MB

Default TDP: 105W

Processor Technology for CPU Cores: TSMC 7nm FinFET

CPU Compute Die (CCD) Size: 74mm²

I/O Die (IOD) Size: 125mm²

Package Die Count: 2

CPU Socket: AM4

Socket Count: 1P

Supporting Chipsets:

• X570

• X470

• B550

• B450

• A520

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB): Not Included

Max. Operating Temperature (Tjmax): 90°C

*OS Support:

• Windows 11 - 64-Bit Edition

• Windows 10 - 64-Bit Edition

• RHEL x86 64-Bit

• Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

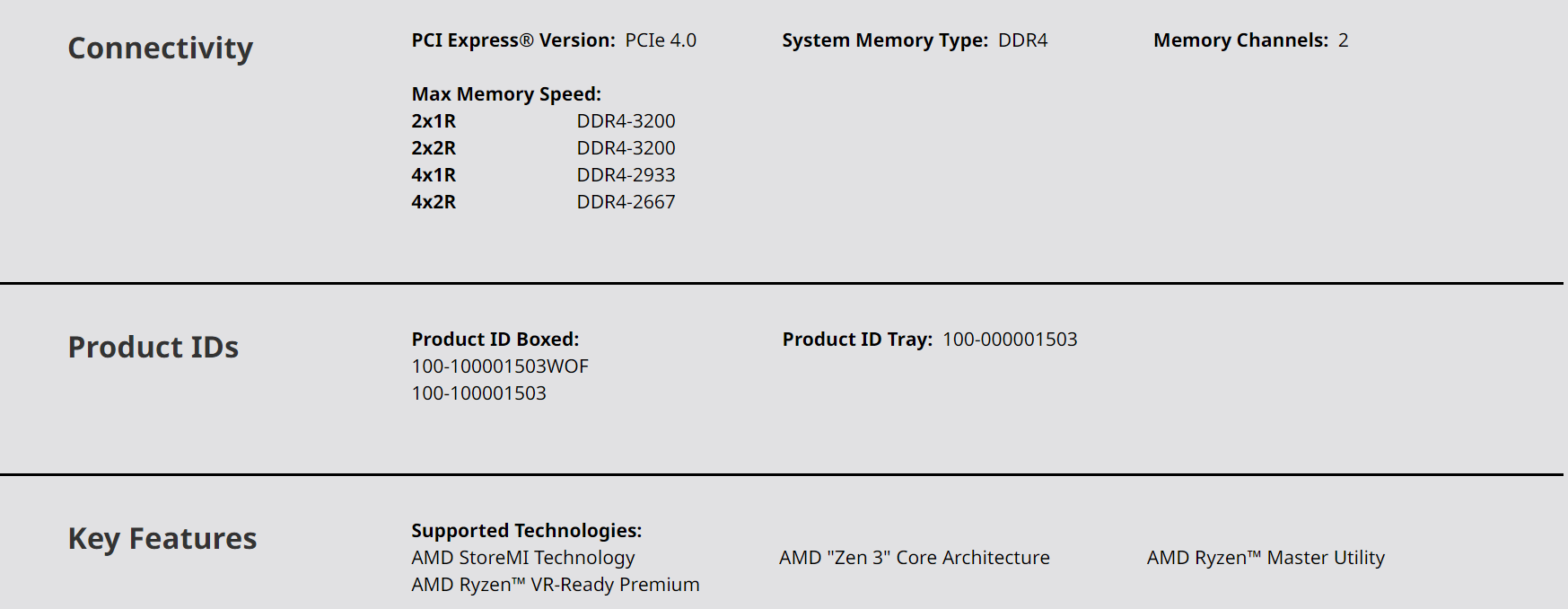

CONNECTIVITY

USB Type-C® Support: Yes

Native USB 3.2 Gen 2 (10Gbps) Ports: 4

Native USB 3.2 Gen 1 (5Gbps) Ports: 0

Native USB 2.0 (480Mbps) Ports: 0

Native SATA Ports: 2

PCI Express® Version: PCIe® 4.0

Native PCIe® Lanes (Total/Usable): 24 / 20

Additional Usable PCIe Lanes from Motherboard

AMD X570 - 16x Gen 4

AMD X470 - 2x Gen 3, 8x Gen 2

NVMe Support: Boot, RAID0, RAID1, RAID10

System Memory Type: DDR4

Memory Channels: 2

Max. Memory: 128GB

System Memory Subtype: UDIMM

Max Memory Speed:

• 2x1R - DDR4-3200

• 2x2R - DDR4-3200

• 4X1R - DDR4-2933

• 4x2R - DDR4-2667

ECC Support: Yes (Requires mobo support)



GRAPHICS CAPABILITIES

Integrated Graphics: No

Graphics Model: Discrete Graphics Card Required



KEY FEATURES

Supported Technologies

• AMD StoreMI Technology

• AMD "Zen 3" Core Architecture

• AMD Ryzen™ Master Utility

• AMD Ryzen™ VR-Ready Premium
