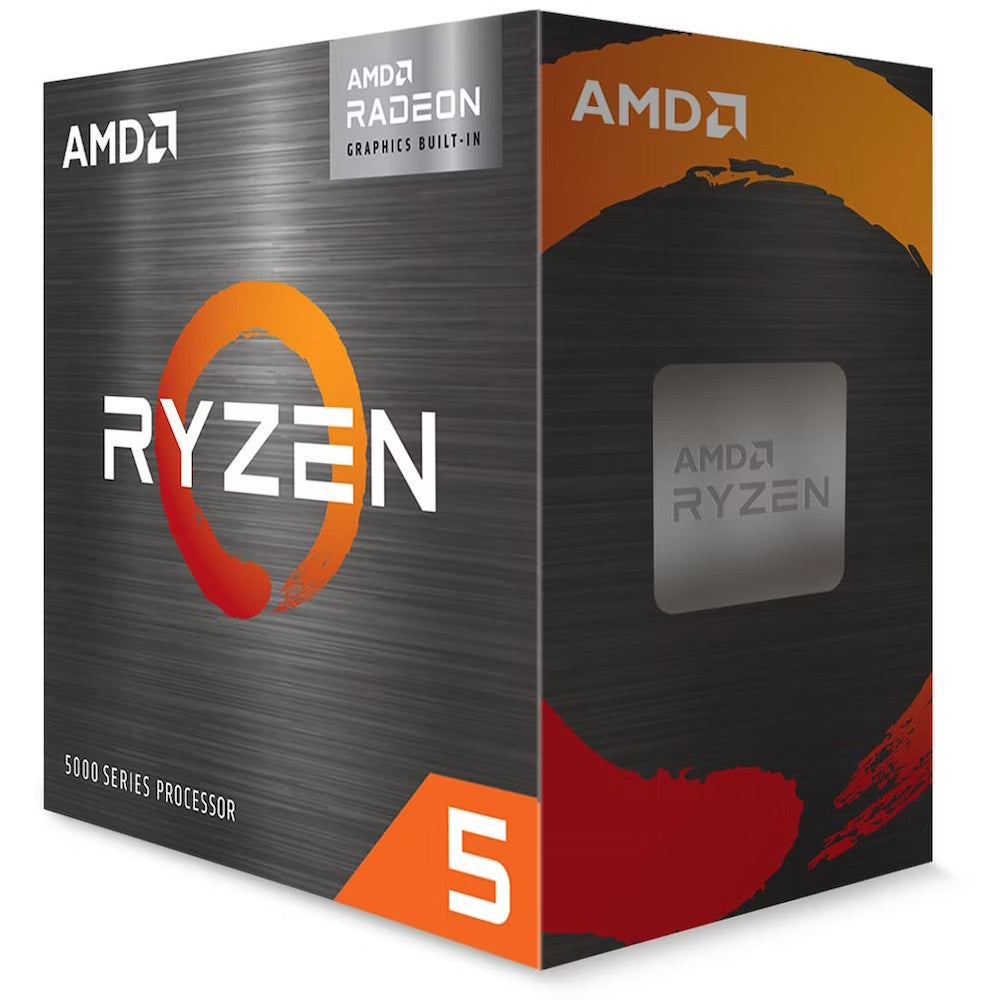

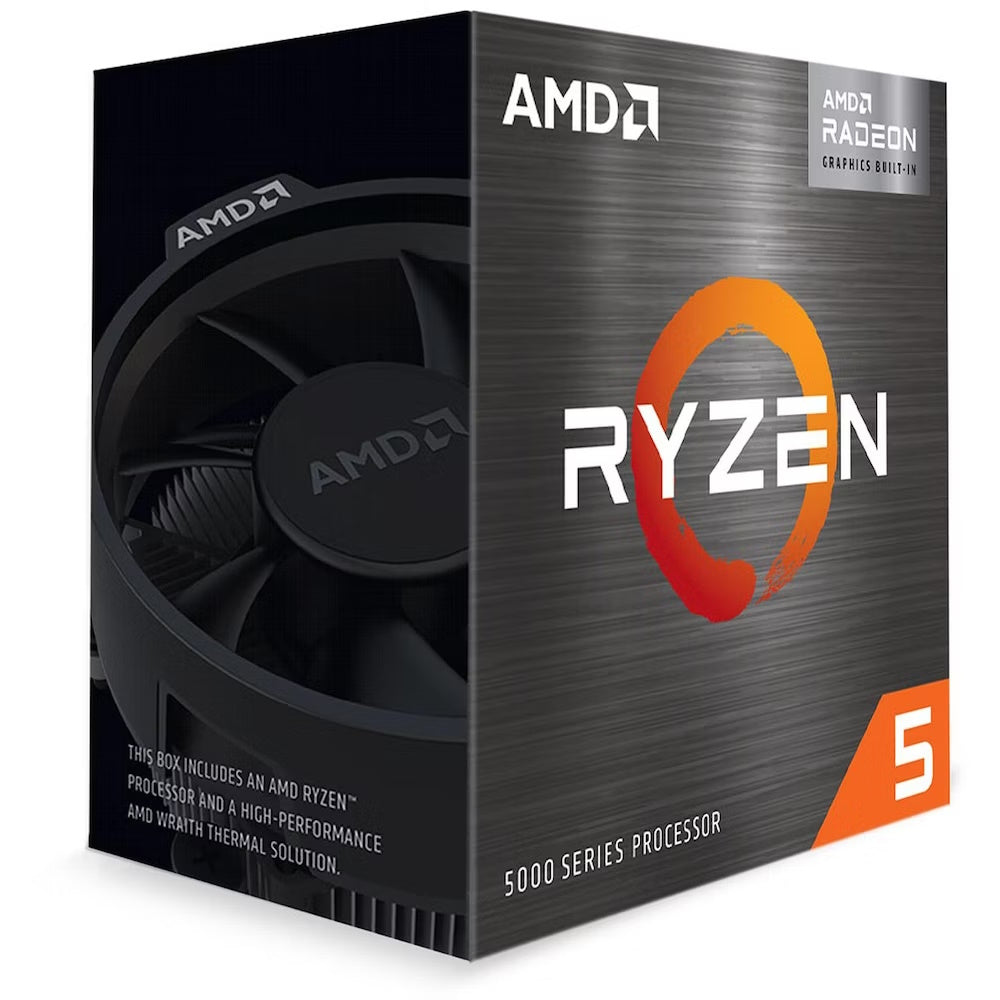

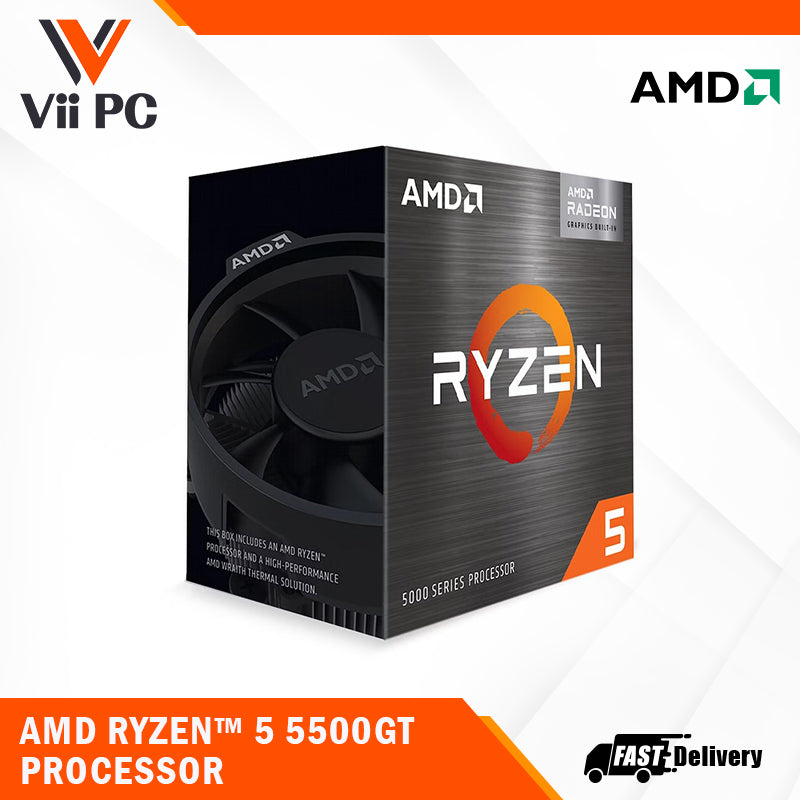

AMD Ryzen™ 5 5500GT with Wraith Stealth Cooler - Ryzen 5 5000 G-Series Desktop Processor (6-Cores, 12-threads, 3.6GHz, Socket AM4, 65W)

AMD Ryzen™ 5 5500GT with Wraith Stealth Cooler - Ryzen 5 5000 G-Series Desktop Processor (6-Cores, 12-threads, 3.6GHz, Socket AM4, 65W)

AMD Ryzen™ 5 5000 G-Series Desktop Processor with Radeon™ Graphics

• # of CPU Cores : 6
• # of Threads : 12
• Base Clock : 3.6GHz
• System Memory Type : DDR4
• Integrated Graphics : Yes
• Graphics Model : Radeon™ Graphics

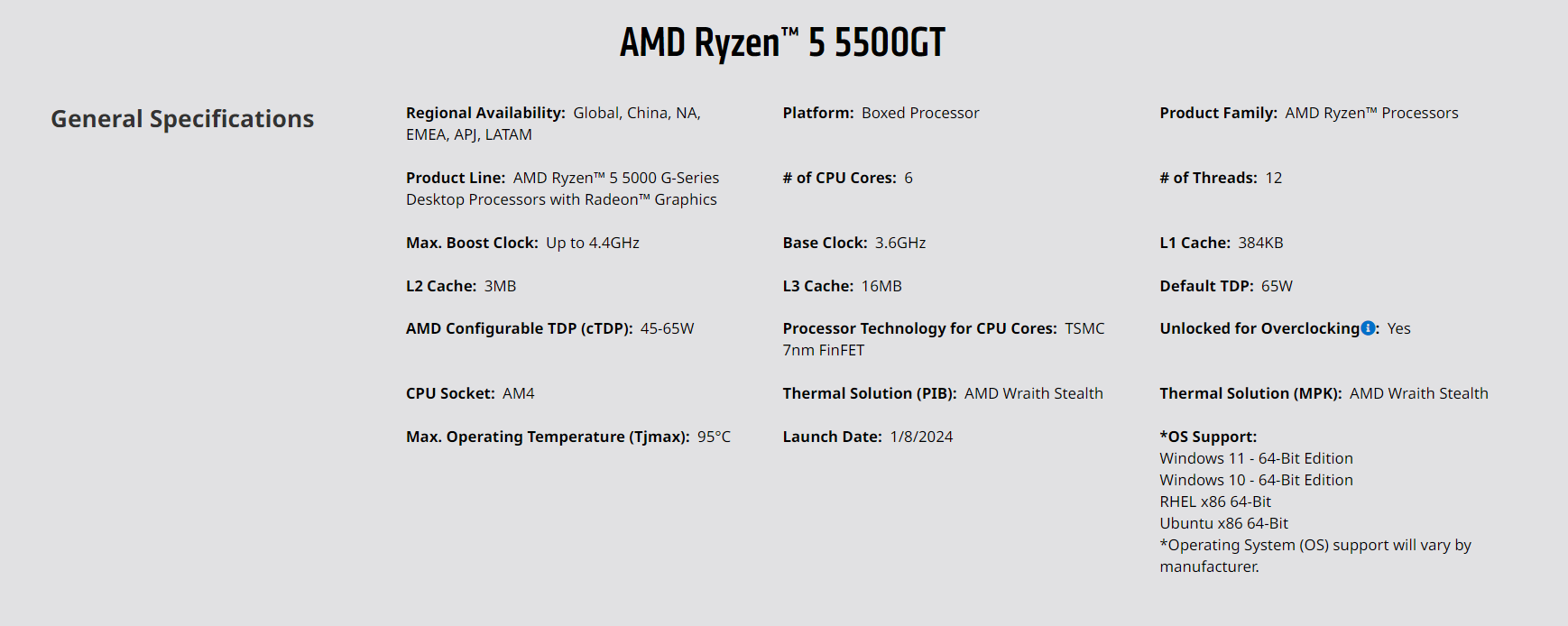

GENERAL SPECIFICATIONS

Platform: Boxed Processor
Market Segment: Mainstream Desktop
Product Family: AMD Ryzen™ Processors
Product Line: AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics

Consumer Use: Yes
Commercial Use: No
Regional Availability: Global, China, NA, EMEA, APJ, LATAM
Former Codename: "Cezanne"
Architecture: "Zen 3"
# of CPU Cores: 6
Multithreading (SMT): Yes
# of Threads: 12
Max. Boost Clock: Up to 4.4GHz
Base Clock: 3.6GHz
L1 Cache: 384KB
L2 Cache: 3MB
L3 Cache: 16MB

Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 7nm FinFET
CPU Compute Die (CCD) Size: 180mm²
Package Die Count: 1
Unlocked for Overclocking: Yes
CPU Socket: AM4

Thermal Solution (PIB): AMD Wraith Stealth
Thermal Solution (MPK): AMD Wraith Stealth
Max. Operating Temperature (Tjmax): 95°C

Launch Date: 1/8/2024

*OS Support:
• Windows 11 - 64-Bit Edition
• Windows 10 - 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

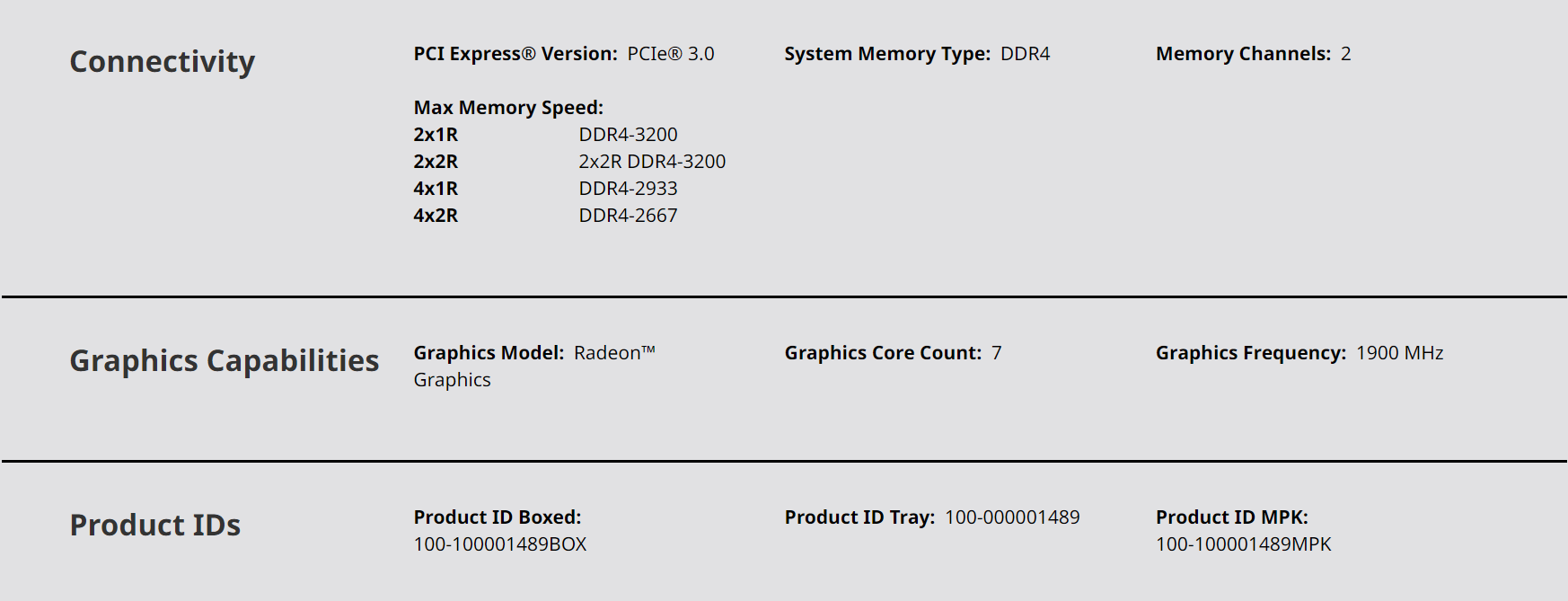

CONNECTIVITY

PCI Express® Version: PCIe® 3.0
NVMe Support: Boot, RAID0, RAID1, RAID10
System Memory Type: DDR4
Memory Channels: 2
Max. Memory: 128GB
System Memory Subtype: UDIMM

Max Memory Speed:
• 2x1R - DDR4-3200
• 2x2R - 2x2R DDR4-3200
• 4x1R - DDR4-2933
• 4x2R - DDR4-2667

GRAPHICS CAPABILITIES

Integrated Graphics: Yes
Graphics Model: Radeon™ Graphics
Graphics Core Count: 7
Graphics Frequency: 1900 MHz
