Viewsonic TD2223 22" Full HD 1080p IPS Panel Display, 10-point Multi touch, Frameless, HDMI,VGA & DVI, VESA mount (For retail, education, or enterprise use)

Viewsonic TD2223 22" Full HD 1080p IPS Panel Display, 10-point Multi touch, Frameless, HDMI,VGA & DVI, VESA mount (For retail, education, or enterprise use)

Regular price $469.00 SGD
Regular price Sale price $469.00 SGD
Sale Sold out

TD2223 22" IR 10-point Touch Screen Monitor - 1920x1080

  • Intuitive 10-point touchscreen
  • Finger, stylus, and glove touch compatible
  • Magnetic pen placeholder
  • Adjustable back tilt up to 40-degrees
  • Scratch-resistant 7H hardness screen

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

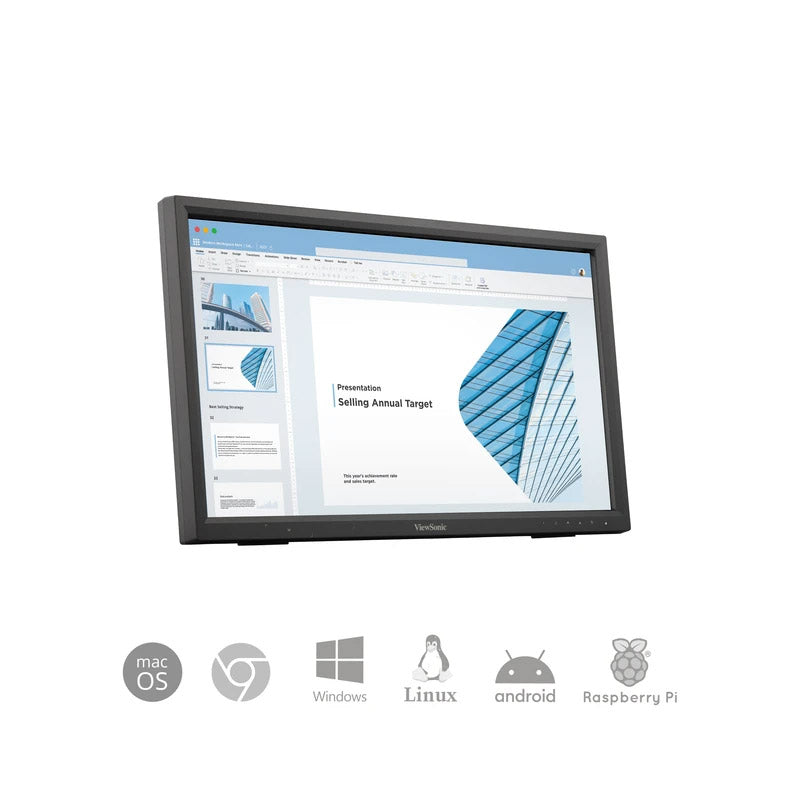

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

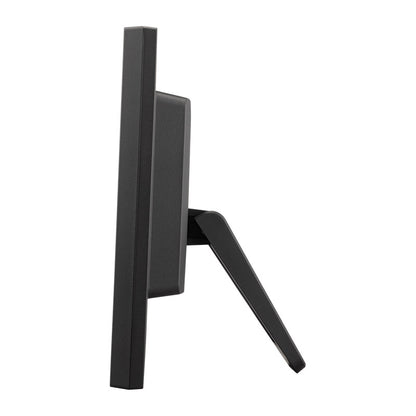

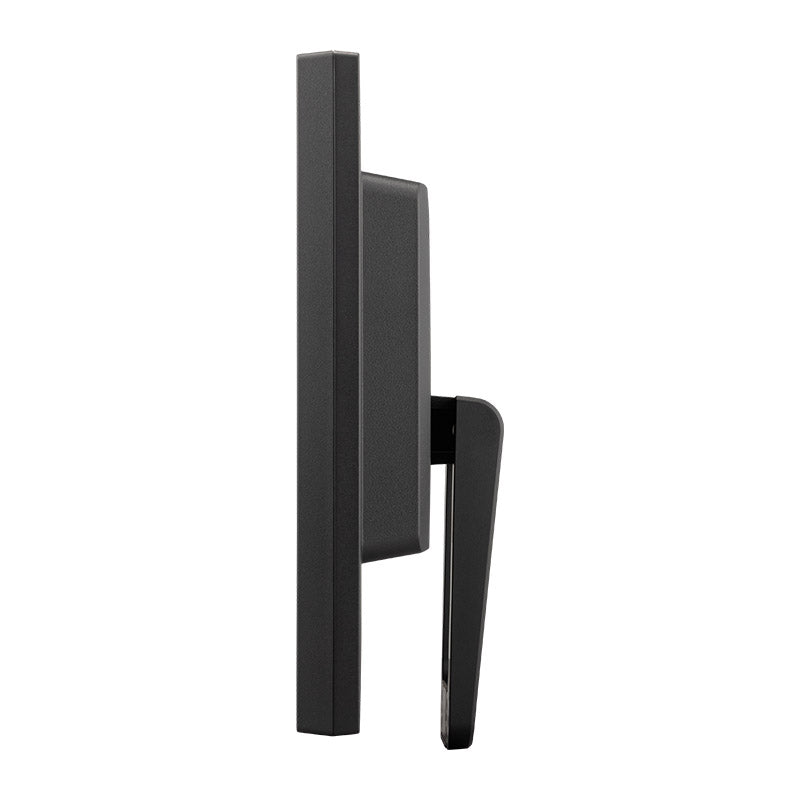

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images

This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

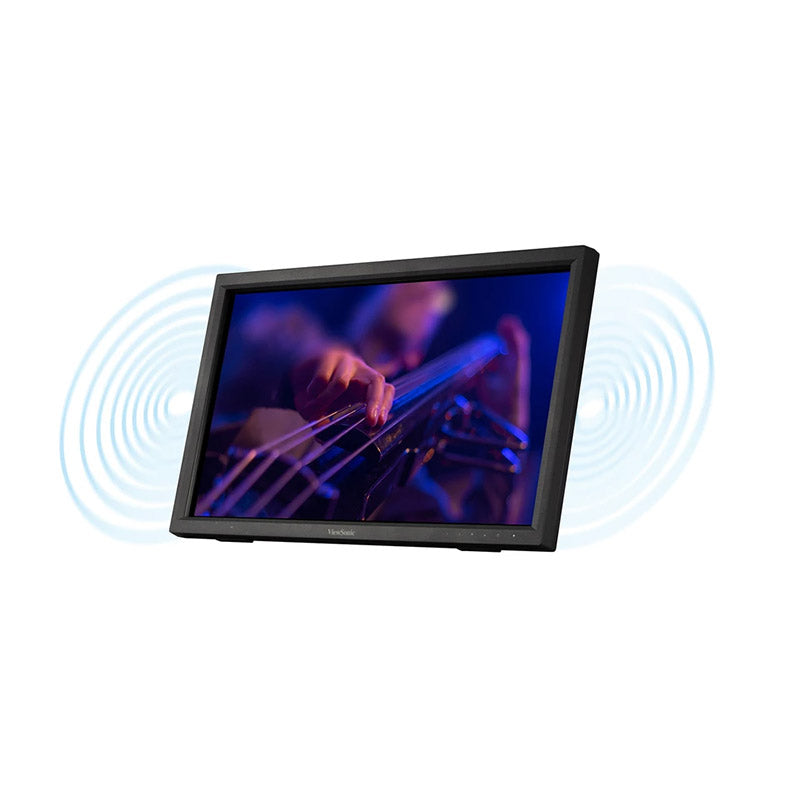

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort

This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.


SPECIFICATIONS

Display

  • Display Size (in.): 22
  • Viewable Area (in.): 21.5
  • Panel Type: VA Technology
  • Resolution: 1920 x 1080
  • Resolution Type: FHD (Full HD)
  • Static Contrast Ratio: 3,000:1 (typ)
  • Dynamic Contrast Ratio: 20M:1
  • Light Source: LED
  • Brightness: 250 cd/m² (typ)
  • Colors: 16.7M
  • Color Space Support: 8 bit true
  • Aspect Ratio: 16:9
  • Response Time (Typical GTG): 6.5ms
  • Response Time (GTG w/OD): 6.5ms
  • Viewing Angles: 178º horizontal, 178º vertical
  • Backlight Life (Hours): 30000 Hrs (Min)
  • Curvature: Flat
  • Refresh Rate (Hz): 75
  • Low Blue Light: Software solution
  • Flicker-Free: Yes
  • Color Gamut: NTSC: 72% size (Typ) / sRGB: 104% size (Typ)
  • Pixel Size: 0.249 mm (H) x 0.241 mm (V)
  • Touch Screen: IR, 10-point multi-touch
  • Surface Treatment: Glossy, Hard Coating (7H)
  • Cover Glass Thickness: 2mm

Compatibility

  • PC Resolution (max): 1920x1080
  • Mac® Resolution (max): 1920x1080
  • PC Operating System: Windows 10/11 certified; macOS tested
  • Mac® Resolution (min): 1920x1080

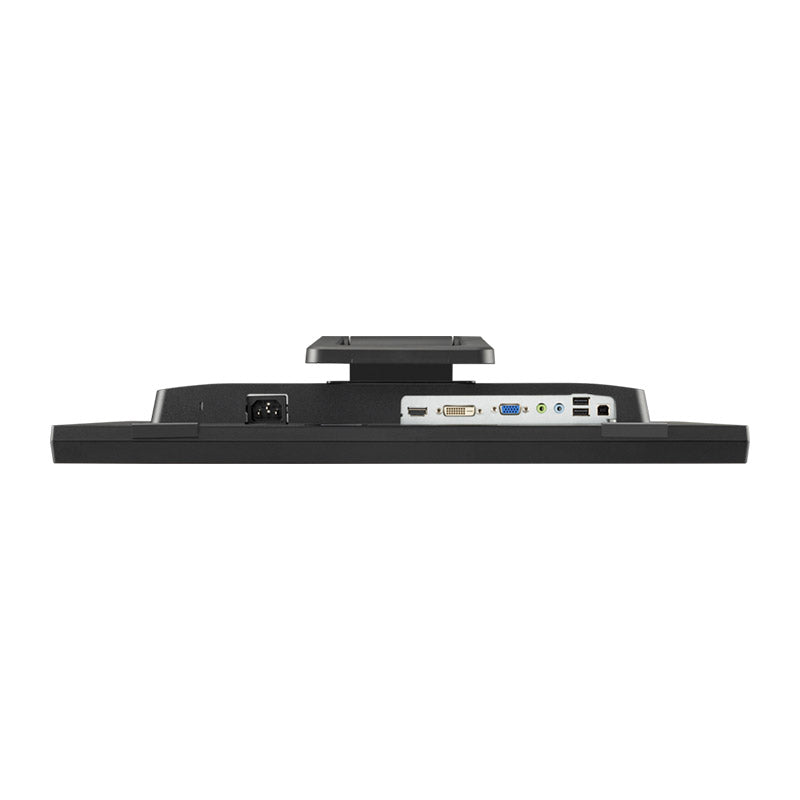

Connector

  • VGA: 1
  • USB 2.0 Type A: 2
  • USB 2.0 Type B: 1
  • 3.5mm Audio In: 1
  • 3.5mm Audio Out: 1
  • HDMI 1.4: 1
  • DVI-D: 1
  • Power in: 3-pin Socket (IEC C14 / CEE22)

Audio

  • Internal Speakers: 2Watts x2

Power

  • Eco Mode (Conserve): 13W
  • Eco Mode (optimized): 16W
  • Consumption (typical): 18.5W
  • Consumption (max): 21.8W
  • Voltage: AC 100-240V
  • Stand-by: 0.5W
  • Power Supply: Internal Power Supply

Additional Hardware

  • Kensington Lock Slot: 1
  • Cable Organization: Yes

Controls

  • Physical Controls: 1, 2, Up, Down, Power
  • On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

Operating Conditions

  • Temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity (non-condensing): 20% to 90%

Wall Mount

  • VESA Compatible: 100 x 100 mm

Input Signal

  • Frequency Horizontal: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
  • Frequency Vertical: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz

Video Input

  • Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
  • Analog Sync: Separate/Composite/SOG - RGB Analog

Ergonomics

  • Tilt (Forward/Back): 20º / 40º

Weight (imperial)

  • Net (lbs): 9.3
  • Net Without Stand (lbs): 8
  • Gross (lbs): 12.6

Weight (metric)

  • Net (kg): 4.2
  • Net Without Stand (kg): 3.7
  • Gross (kg): 5.7

Dimensions (imperial) (WxHxD)

  • Packaging (in.): 22.8 x 15.9 x 6.4
  • Physical (in.): 20.4 x 12.9 x 4
  • Physical Without Stand (in.): 20.4 x 12.1 x 2.4

Dimensions (metric) (WxHxD)

  • Packaging (mm): 580 x 405 x 162
  • Physical (mm): 519 x 329 x 101
  • Physical Without Stand (mm): 519 x 308 x 61
