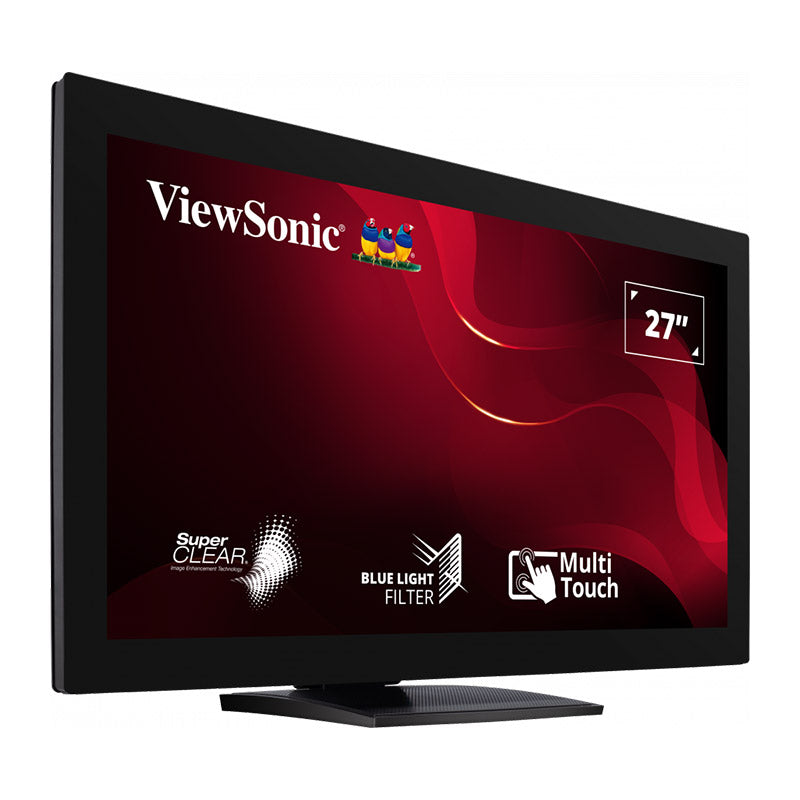

ViewSonic TD2760 27" 1080p 10-Point Multi Touch Screen Monitor with Advanced Ergonomics, RS232, SuperClear® technology, HDMI, DisplayPort and VGA

TD2760 27" 10-point Touch Screen Monitor

• SuperClear® technology
• Advanced ergonomic stand for tilt or flat
• HDMI, DisplayPort and VGA inputs
• 50M:1 dynamic contrast ratio
• Supports Windows® 7/8/10/11 and selected Linux, Chrome, and Android

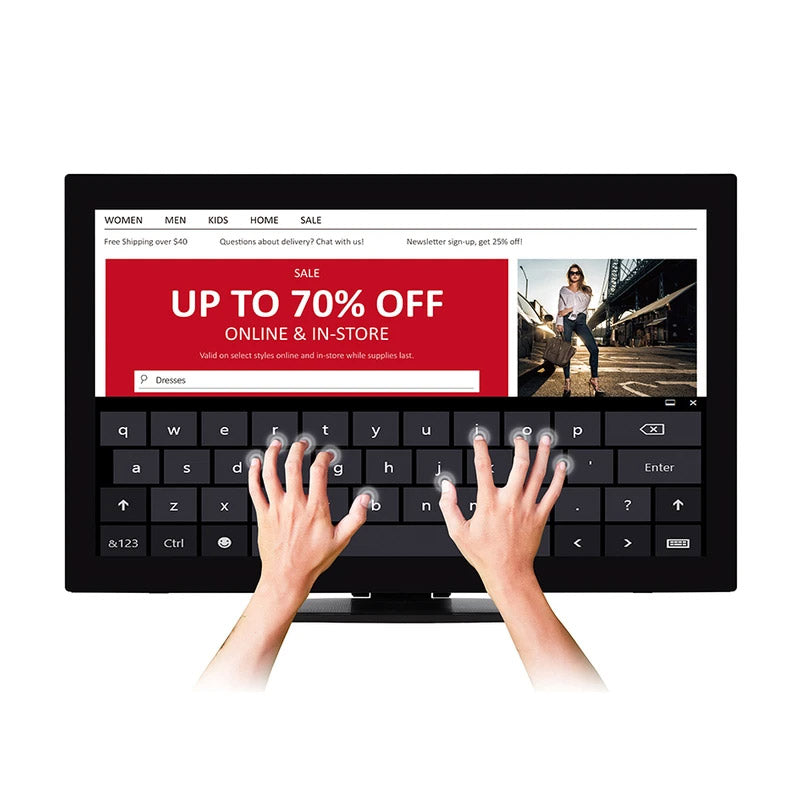

10-Point Multi-Touch

Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, and commercial use.

• 10-Point Multi-Touch

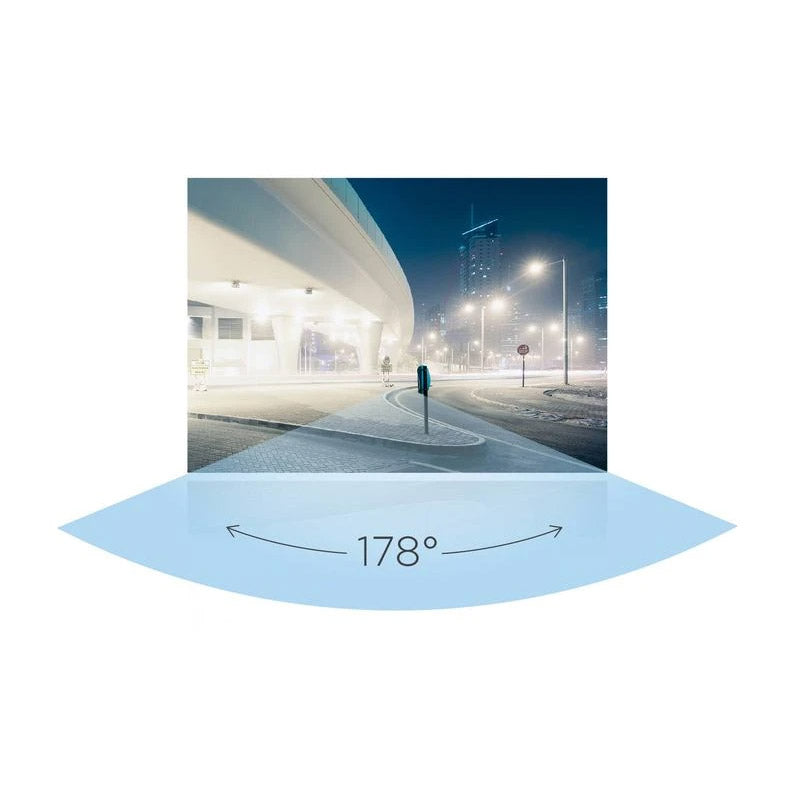

Viewing Clarity from Wide Angles

Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.

• SuperClear® 178°/178°

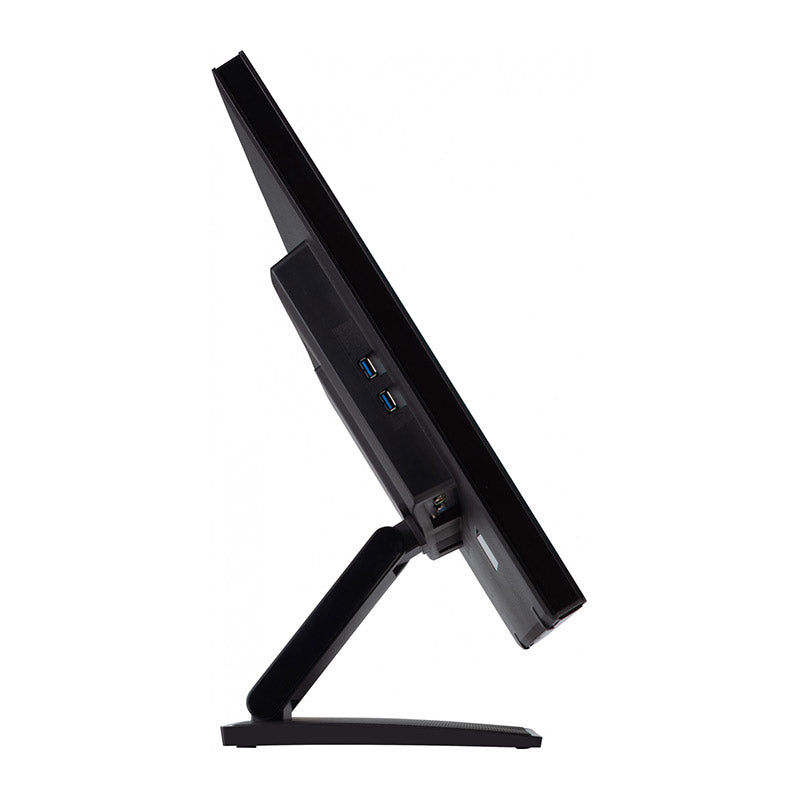

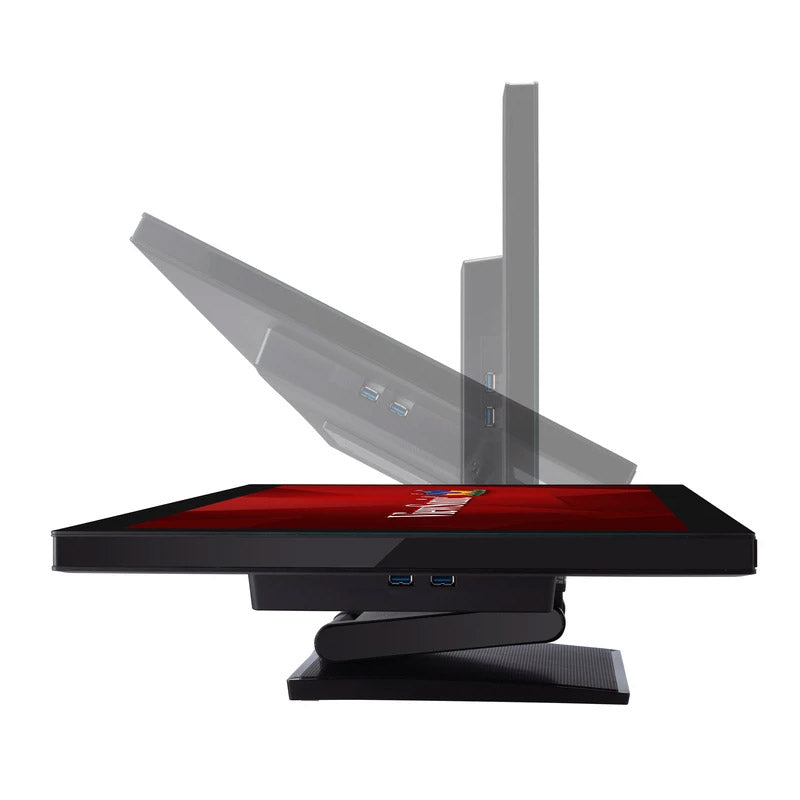

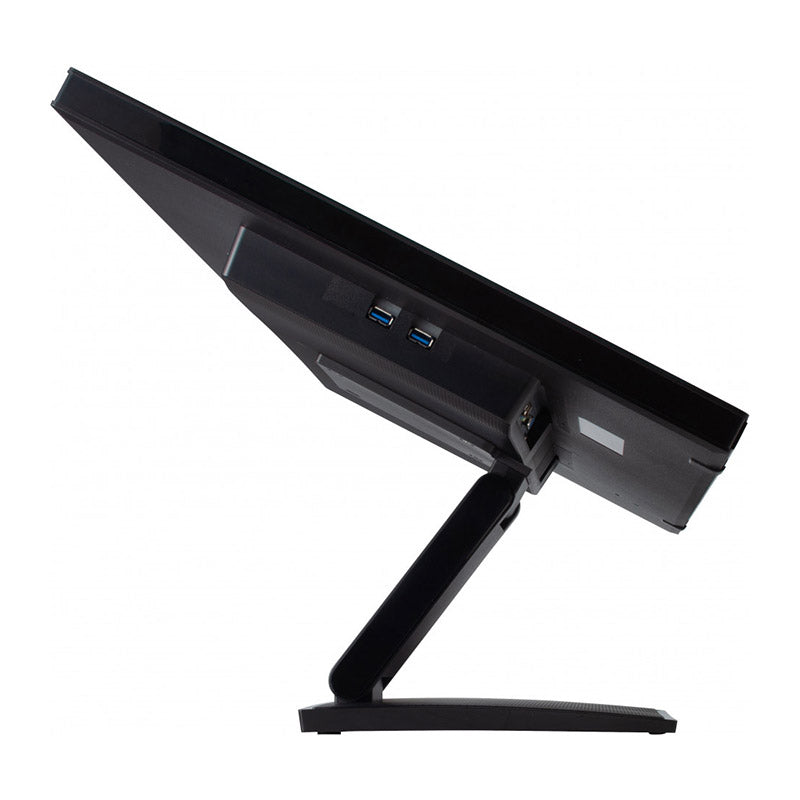

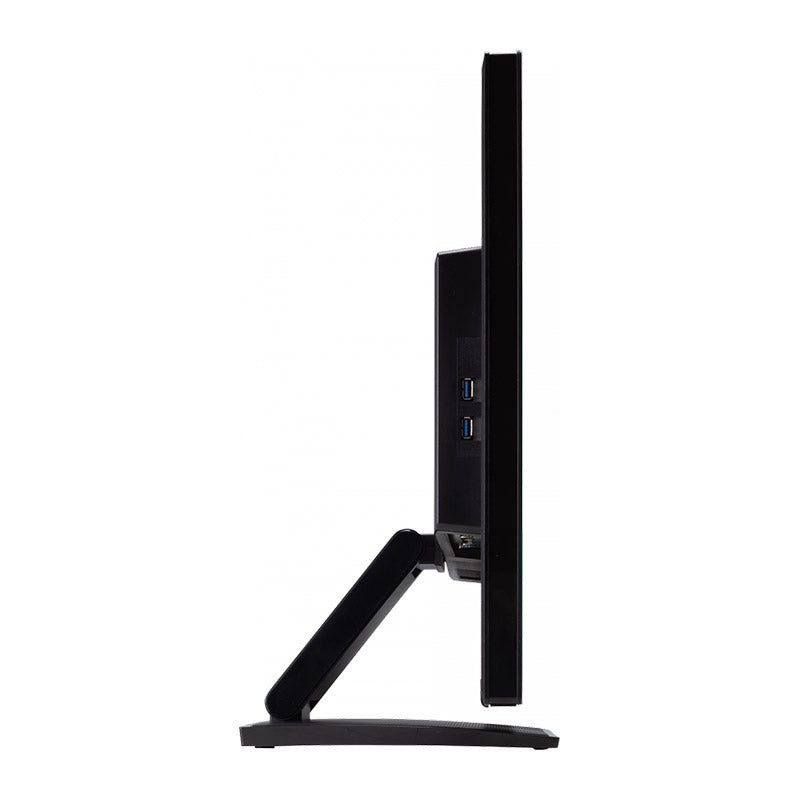

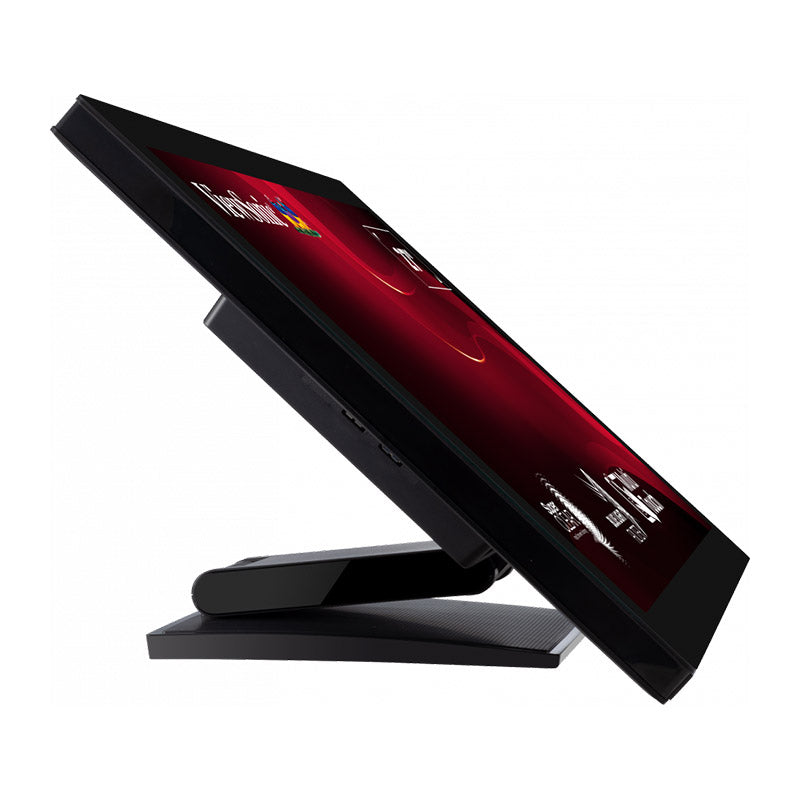

Advanced Ergonomic Stand for Optimal Touch Experience

A flexible ergonomic stand makes it easy to adjust this touch monitor for optimal comfort and viewing. Simply tilt, raise, and lower the monitor for the most natural position, or lay it completely flat to create a comfortable working environment.

• Tilt, Raise, Lay flat



Versatile Connectivity

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.

• DisplayPort, HDMI, VGA



Mega Dynamic Contrast Ratio

A superior MEGA dynamic contrast ratio better defines the relationship between the darkest and brightest colors, ensuring that this monitor delivers an incredibly immersive experience with accurate, rich, and vibrant images.

• Maximized Color & Contrast



Cross-Platform Compatibility

Cross-platform compatibility with a wide range of operating systems including: Windows 7/8/10/11, Linux, Chrome, and Android*. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0

• Windows 7/8/10/11, Linux, Chrome, Android



Control Multiple Devices

RS232 offers local control for set-top boxes, and other RS232 connected devices. The HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices directly through the display.

• HDMI CEC, RS232

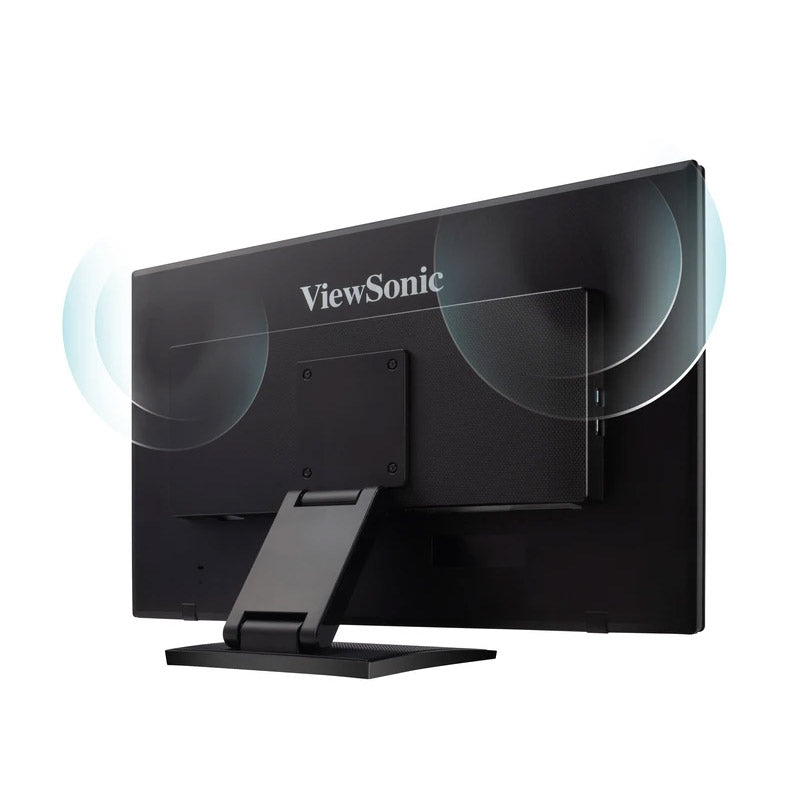

Dual Integrated Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

• Dual Integrated Speakers



Certified Environmental Sustainability

The TD2760 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.

• Energy Star & EPEAT



Enhanced Viewing Comfort

Flicker-Free Technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.

• Blue Light Filter, Flicker-Free

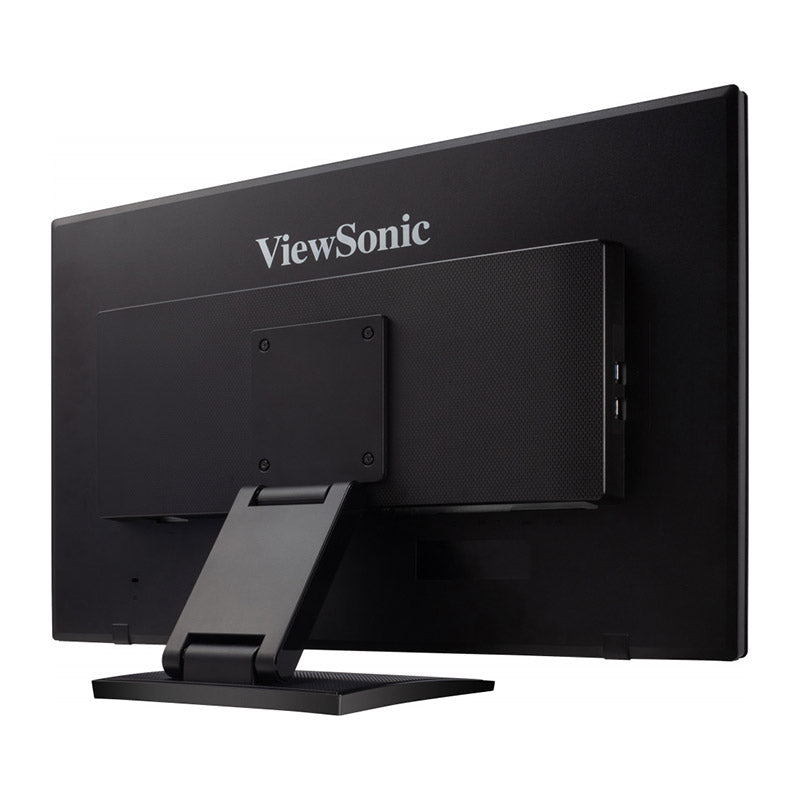

VESA-Compatible Mount

Mount the monitor as you see fit using its convenient VESA-compatible mount design.

• 100mm x 100mm



SPECIFICATIONS

Display

• Display Size (in.): 27
• Viewable Area (in.): 27
• Panel Type: VA Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD (Full HD)
• Static Contrast Ratio: 3,000:1 (typ)
• Dynamic Contrast Ratio: 50M:1
• Light Source: LED
• Brightness: 250 cd/m² (typ)
• Colors: 16.7M
• Color Space Support: 8 bit (6 bit + Hi-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 6ms
• Response Time (GTG w/OD): 6ms
• Response Time (Typical Tr+Tf): 12ms
• Viewing Angles: 178º horizontal, 178º vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 60
• Low Blue Light: Software solution
• Flicker-Free: Yes
• Color Gamut: NTSC: 72% size (Typ) / sRGB: 102% size (Typ)
• Pixel Size: 0.311 mm (H) x 0.311 mm (V)
• Touch Screen: Projected Capacitive, 10-point multi-touch
• Surface Treatment: Anti-Glare, Hard Coating (≧6H)
• Cover Glass Thickness: 1.88mm

Compatibility

• PC Resolution (max): 1920x1080
• Mac® Resolution (max): 1920x1080
• PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
• Mac® Resolution (min): 1920x1080

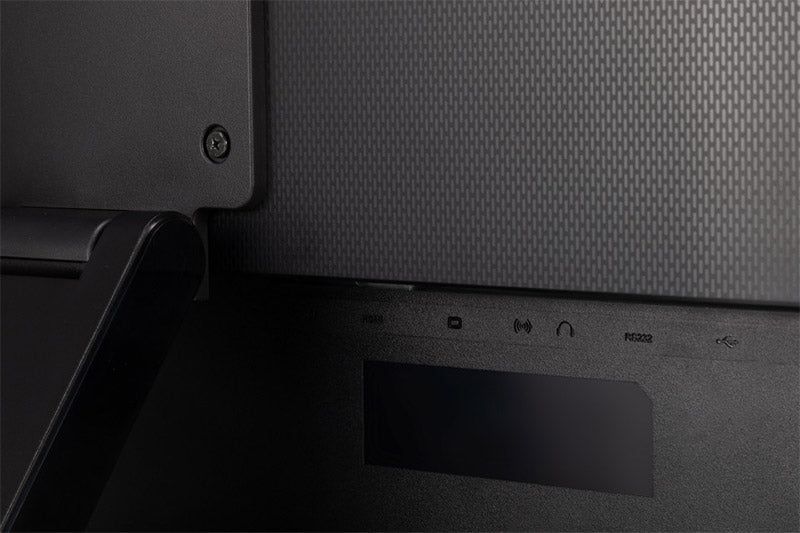

Connector

• VGA: 1

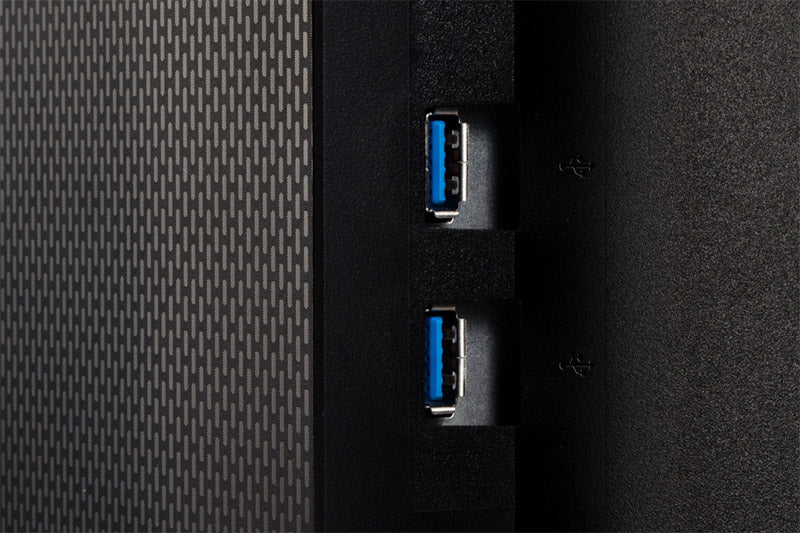

• USB 3.2 Type A Down Stream: 2
• USB 3.2 Type B Up Stream: 1
• 3.5mm Audio In: 1
• 3.5mm Audio Out: 1
• HDMI 1.4: 1
• DisplayPort: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)
• RS232 In: 1

Audio

• Internal Speakers: 2Watts x2

Power

• Eco Mode (Conserve): 19W
• Eco Mode (optimized): 22W
• Consumption (typical): 26W
• Consumption (max): 28W
• Voltage: AC 100-240V
• Stand-by: 0.3W
• Power Supply: Internal Power Supply

Additional Hardware

• Kensington Lock Slot: 1

Controls

• Physical Controls: 1, 2, Up, Down, Power
• On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

Operating Conditions

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

Wall Mount

• VESA Compatible: 100 x 100 mm

Input Signal

• Frequency Horizontal: 15 ~ 90KHz
• Frequency Vertical: 50 ~ 76Hz

Video Input

• Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
• Analog Sync: Separate/Composite/SOG - RGB Analog

Ergonomics

• Tilt (Forward/Back): -4º / 90º

Weight (imperial)

• Net (lbs): 17.4
• Net Without Stand (lbs): 12.2
• Gross (lbs): 22.6

Weight (metric)

• Net (kg): 7.9
• Net Without Stand (kg): 5.5
• Gross (kg): 10.2

Dimensions (imperial) (WxHxD)

• Packaging (in.): 29.6 x 20.7 x 8
• Physical (in.): 26 x 17.5 x 9.4
• Physical Without Stand (in.): 26 x 16.2 x 2.3

Dimensions (metric) (WxHxD)

• Packaging (mm): 753 x 525 x 204
• Physical (mm): 660 x 443 x 239
• Physical Without Stand (mm): 660 x 410 x 58
