Marketing Name
-
Model Name
-
Graphics Processing Unit
-
Interface
-
Core Clocks
-
CUDA® CORES
-
Memory Speed
-
Memory
-
Memory Bus
-
Output
-
HDCP Support
-
Power consumption
-
Power connectors
-
Recommended PSU
-
Card Dimension (mm)
-
Weight (Card / Package)
-
DirectX Version Support
-
OpenGL Version Support
-
Maximum Displays
-
G-SYNC® technology
-
Digital Maximum Resolution

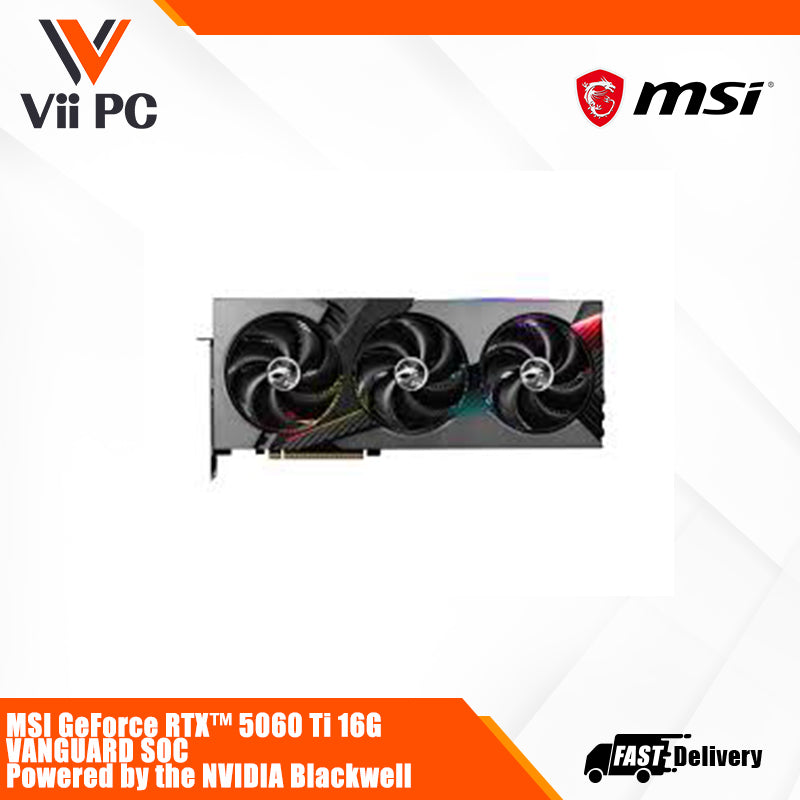

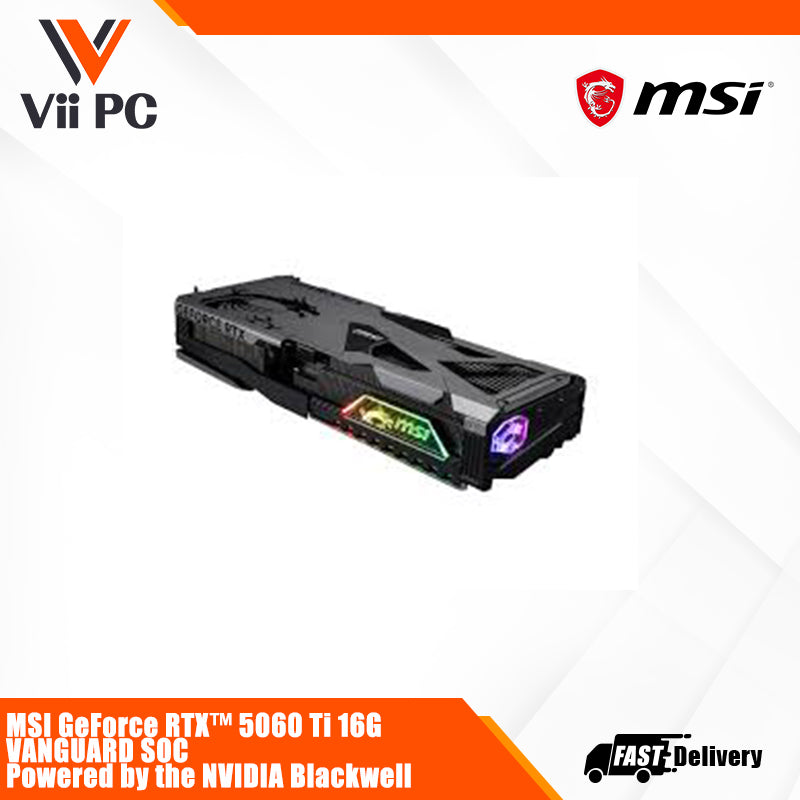

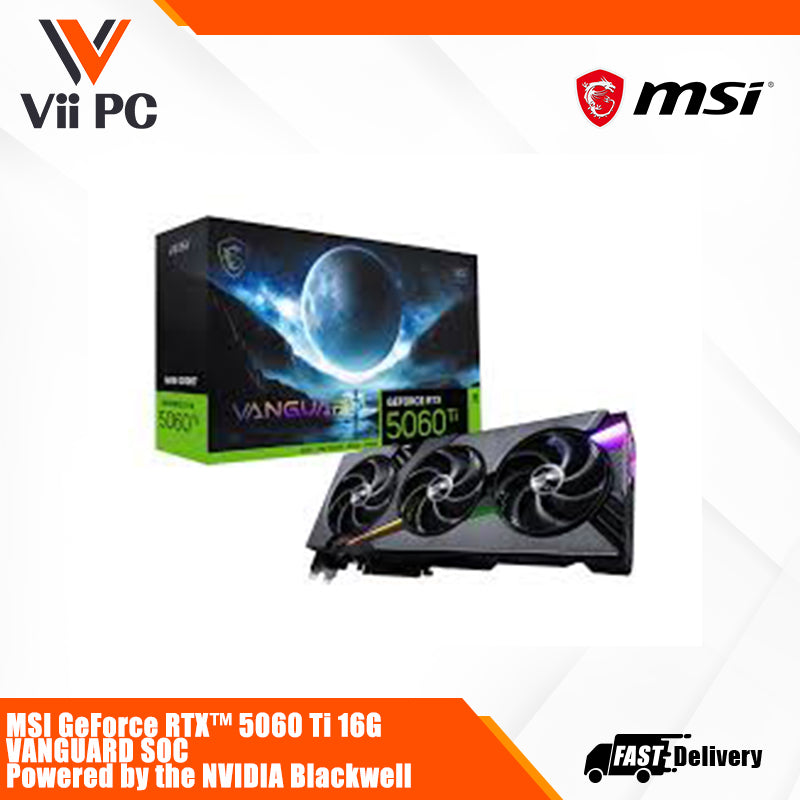

GeForce RTX™ 5060 Ti 16G VANGUARD SOC
G506T-16VGS
NVIDIA® GeForce RTX™ 5060 Ti
PCI Express® Gen 5 x16 (uses x8)
Extreme Performance: 2707 MHz (MSI Center) Boost: 2692 MHz
4608 Units
28 Gbps
16GB GDDR7
128-bit
DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
Y
180W
16-pin x 1
600 W
337 x 140 x 61 mm
1278 g / 2059 g
12 Ultimate
4.6
4
Y
7680 x 4320
owered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clock: Extreme Performance: 2707 MHz (MSI Center) Boost: 2692 MHz
-
TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
-
STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
-
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
-
Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
-
Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
-
Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
-
Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
-
Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
-
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
-
Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
