GIGABYTE GeForce RTX™ 5070 GAMING OC 12G GDDR7 Graphics Card

GIGABYTE GeForce RTX™ 5070 GAMING OC 12G

FEATURES

• Powered by the NVIDIA Blackwell architecture and DLSS 4
•  Powered by GeForce RTX™ 5070
•  Integrated with 12GB GDDR7 192bit memory interface
•  WINDFORCE cooling system
  •  Hawk fan
  •  Server-grade Thermal conductive gel
•  RGB Halo
•  Dual BIOS (Performance / Silent)
•  Reinforced structure
•  Versatile VGA holder
•  4 years warranty (Online registration required)


CORE CLOCK: 2625 MHz (Reference card : 2512 MHz)

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

ACTIVE COOLING DESIGN - HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL

Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE

Unique textures cover the curved surface, paired with the layering of appearance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB HALO

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE

Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE

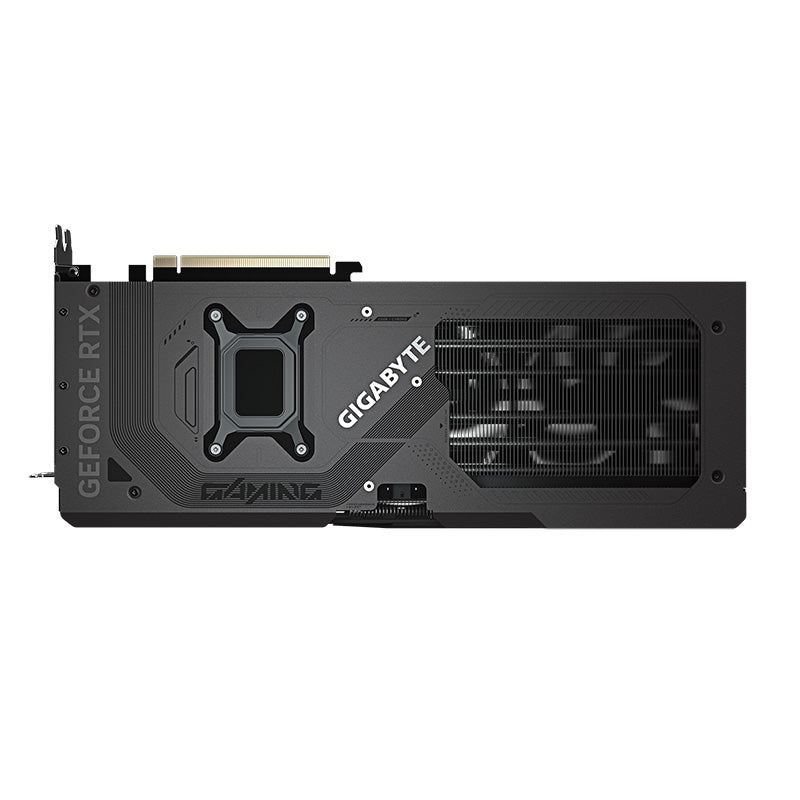

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

DUAL BIOS (Performance / Silent)

The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

VERSATILE VGA HOLDER

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE

• ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.


• LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.


• LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

4-YEAR WARRANTY

We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

SPECIFICATION:

• Graphics Processing: GeForce RTX™ 5070
• Core Clock: 2625 MHz (Reference card : 2512 MHz)
• CUDA® Cores: 6144
• Memory Clock: 28 Gbps
• Memory Size: 12 GB
• Memory Type: GDDR7
• Memory Bus: 192 bit
• Card Bus: PCI-E 5.0
• Digital max resolution: 7680 x 4320
• Multi-view: 4
• Card size: L=327 W=132 H=56 mm
• PCB Form: ATX
• DirectX: DirectX 12 API
• OpenGL: OpenGL 4.6
• Recommended PSU: 750W
• Power Connectors: 16 Pin*1

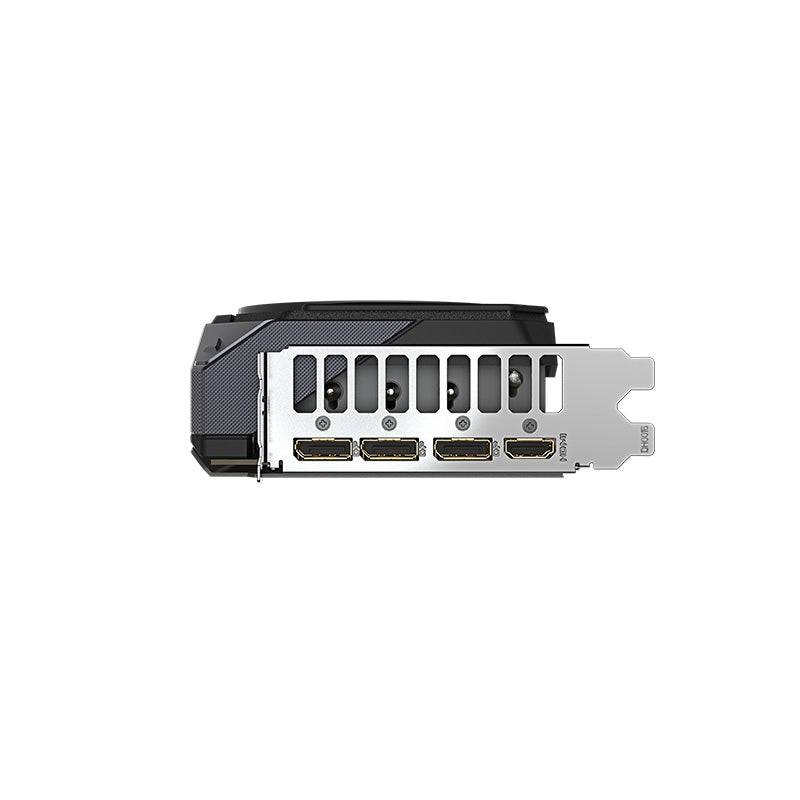

• Output: DisplayPort 2.1b x3 / HDMI 2.1b x1


• Accessories:
  1. Quick guide
  2. Warranty registration
  3. 1x 12V-2x6 to 2x PCIe 8pin adapter
  4. Versatile VGA holder
  5. Versatile VGA holder manual
