NZXT C650 Gold 650W 80 Plus® Gold Fully-Modular ATX Power Supply - Supports NVIDIA GPUs up to 3070 and AMD GPUs up to RX 6800 (10 Year Warranty)

NZXT C650 Gold 650W 80 Plus® Gold Fully-Modular ATX PSU

This PSU delivers 650 watts of reliable power which is a great choice for almost every build.

• Modular design lets builders use only the cables they need
• The sleeved main cables lresist heat damage as well as fraying
• Fits any case conforming to the ATX standard
• Supports NVIDIA GPUs up to 3070 and AMD GPUs up to RX 6800
• Zero RPM Fan mode silences the fan under low-load conditions
• Dynamic 135mm fluid-dynamic bearing fan
• 10-year warranty



Inside the Box

• C650 Gold - 1
• 24-Pin ATX Power Cable - 1
• 4+4-Pin CPU Power Cables - 2
• 6+2-pin PCIe Power Cable - 2
• SATA Cables - 2
• Peripherals Cables - 2
• 6-32 Screws - 4
• AC Power Cord - 1


TECH SPECIFICATIONS

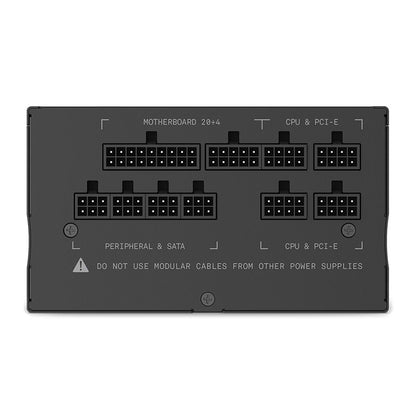

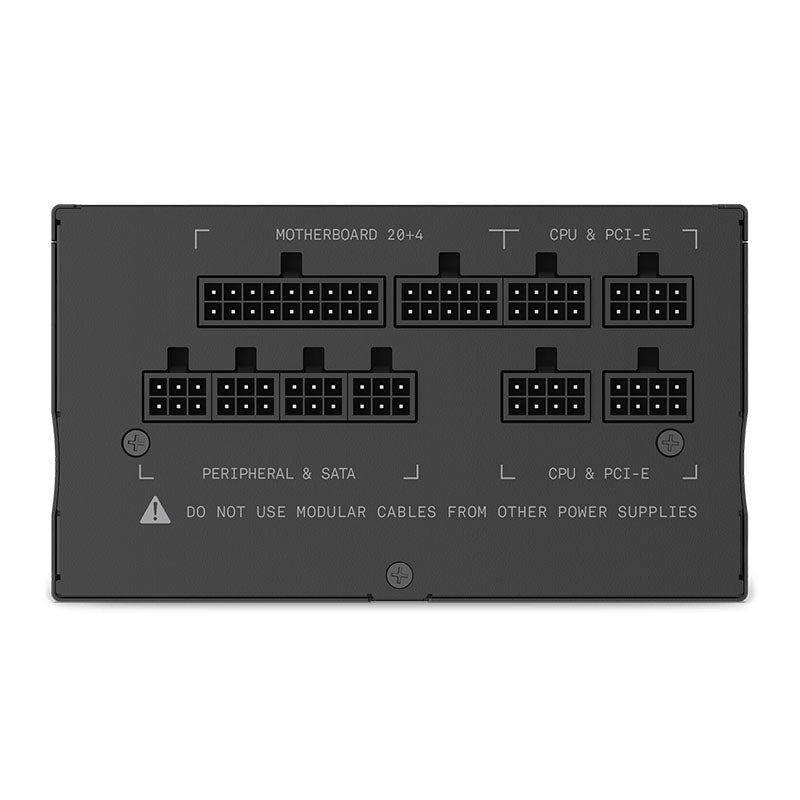

Output Connectors

24-pin ATX power: 1
4+4-pin CPU power: 2
6+2-pin PCIe power: 4
SATA power: 6
Peripherals: 6

Cable Specs

24-pin ATX power: 600 mm, Nylon sleeving
4+4-pin CPU power: 700 mm, Nylon sleeving
6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving
SATA power: 500 + 150 mm
Peripherals: 500 + 150 mm

AC Input Rating

100 - 240Vac: 8A-4A 50Hz-60Hz

DC Output Rating

+3.3V and +5V: 22A (120W)
+12V: 54.2A (650W)
-12V: 0.3A (3.6W)
5Vsb: 3A (15W)
Total: 650W

Operation

PF Correction: Active @0.96
MTBF: 100,000 hours
Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

Energy Efficiency

Rating: 80 Plus Gold
20% loading: 87% @115Vac
50% loading: 90.5% @115Vac
100% loading: 87.5% @115Vac

Fan Specs

Dimensions: 135 x 135 x 25 mm
Speed: 0-2300 ± 10% RPM
RPM Airflow: 93.02 CFM (Tpy.)
Noise: 44.5 dBA max
Bearing: Fluid Dynamic Bearing (FDB)

General

Dimensions: 150 x 150 x 86 mm
Material(s): Steel, PCB and plastic
Compliance Standard: ATX12V v2.52 / EPS12V v2.92
Regulation & Certification: cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

Warranty: 10 years

Model Number: PA-6G1BB
