NZXT C1200 Gold 1200W Gold Fully Modular ATX 3.0 PSU - Next-Gen Power, Constructed with high-quality Japanese 105°C capacitors, Zero Fan Mode, Efficiency

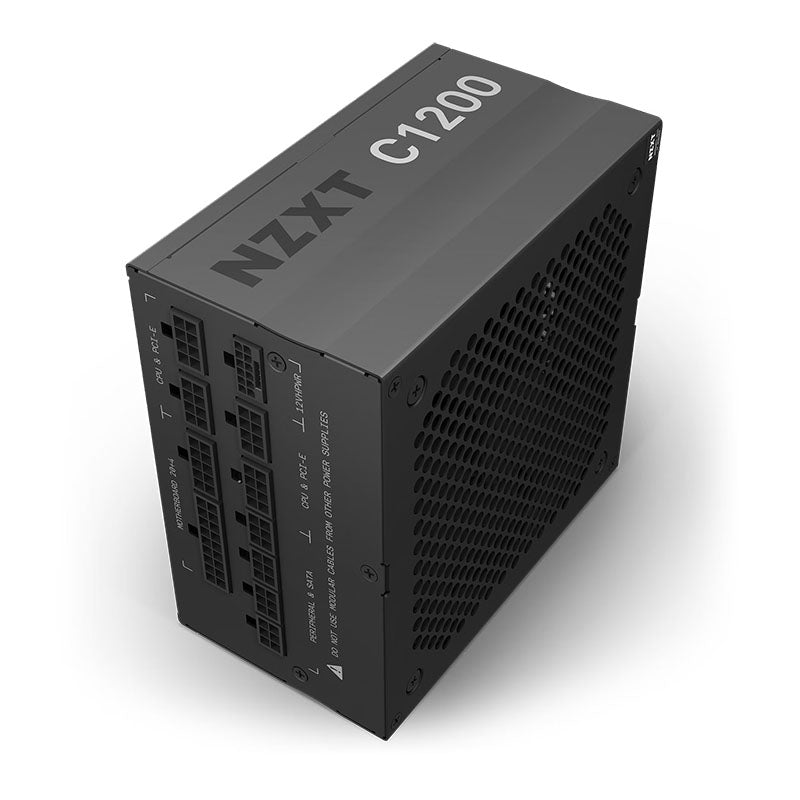

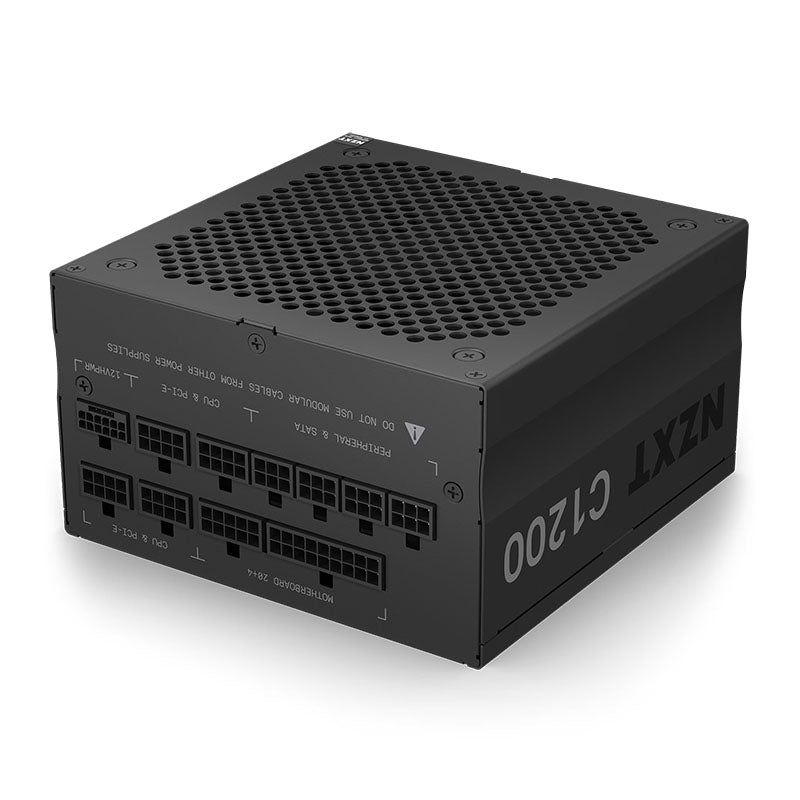

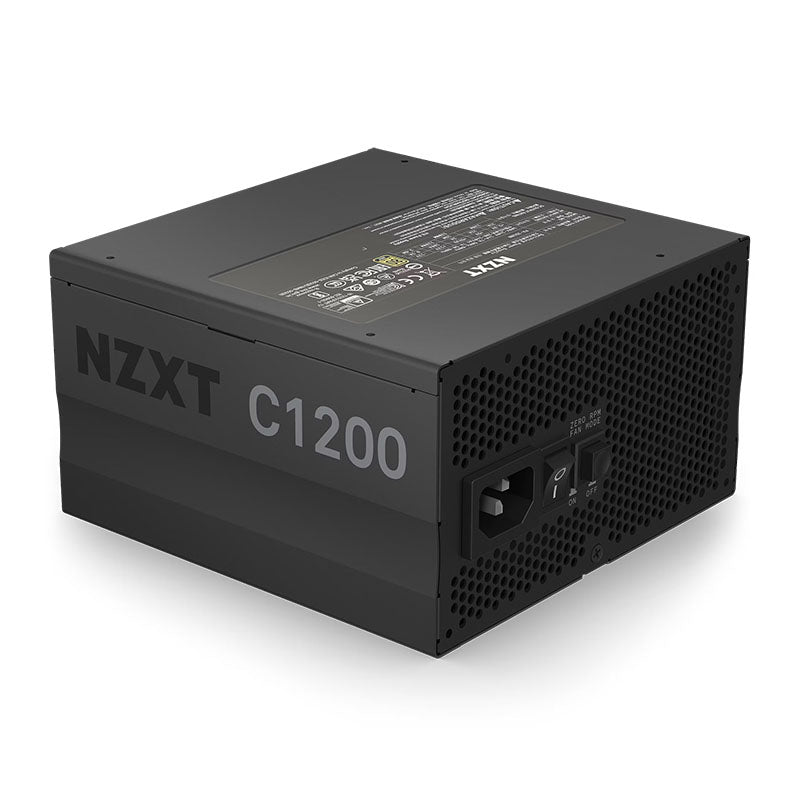

NZXT C1200 Gold 1200W Gold Fully-Modular ATX 3.0 PSU

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.

• 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
• Built and tested with the strictest standards for trouble-free installation and operation
• 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
• Zero Fan Mode stops the fan when under light loads to reduce system noise

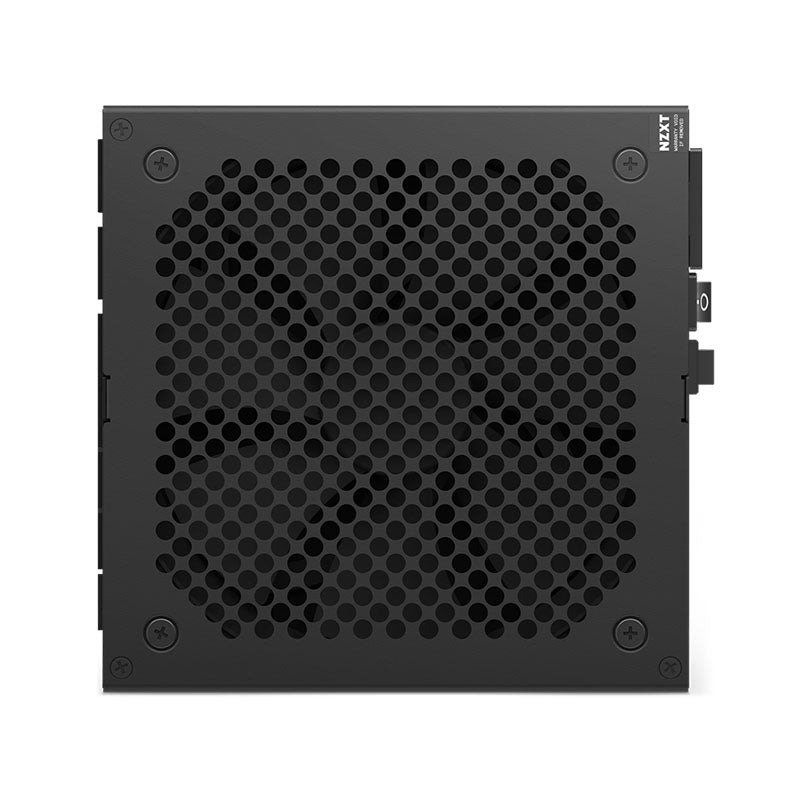

• 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
• Constructed with high-quality Japanese 105°C capacitors
• 10-year warranty



Inside the Box

• C1200 Gold (2023) - 1
• 24-Pin ATX Power Cable - 1
• 4+4-Pin CPU Power Cables - 1
• 8-Pin CPU Power Cable - 1
• 6+2-pin PCIe Power Cable - 2
• 16-Pin (12+4) 12VHPWR PCIe Cable - 1
• SATA Cables - 3
• Peripherals Cables - 1
• 6-32 Screws - 4
• AC Power Cord - 1

TECH SPECIFICATIONS

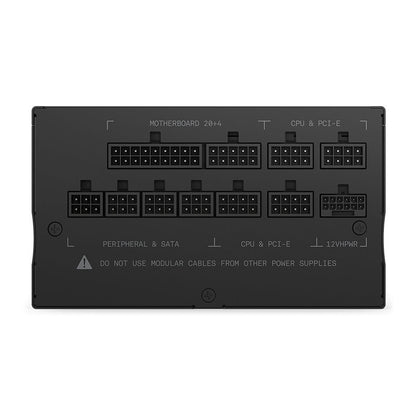

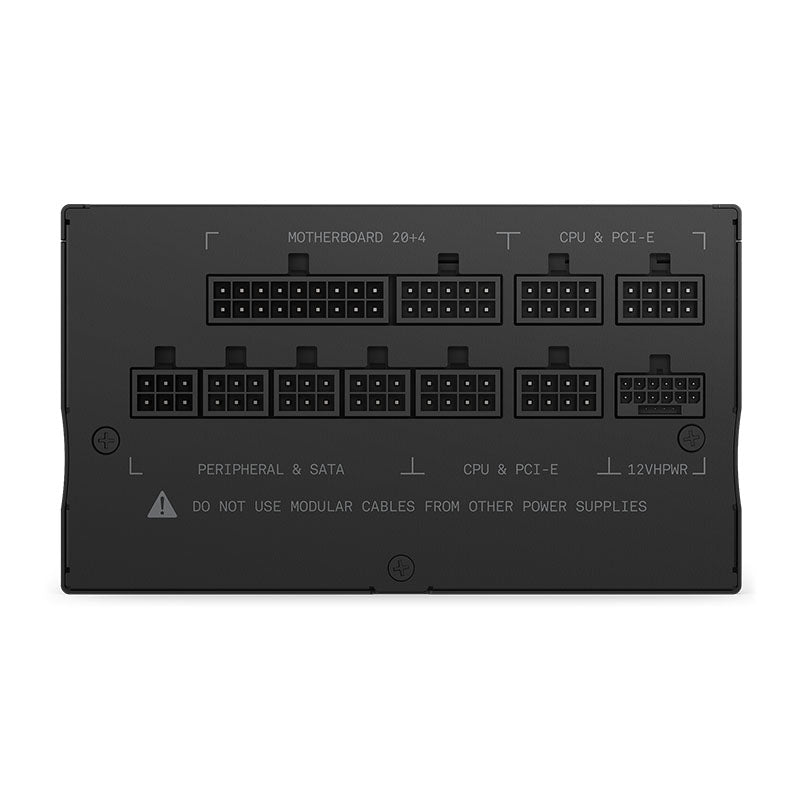

Output Connectors

24-pin ATX power: 1
4+4-pin CPU power: 1
8-pin CPU Cable: 1
6+2-pin PCIe power: 2
16-pin (12+4) 12VHPWR PCIe Cable: 1
SATA power: 8
Peripherals: 4

Cable Specs

24-pin ATX power: 600 mm, Nylon sleeving
4+4-pin CPU power: 700 mm, Nylon sleeving
8-Pin CPU Power Cable: 700mm, Nylon sleeving
6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving
16-Pin (12+4) 12VHPWR PCIe Cable: 650mm, Nylon sleeving
SATA power: 500 + 150 mm
Peripherals: 500 + 150 mm

AC Input Rating

100 - 240Vac: 14A-7A 50Hz-60Hz

DC Output Rating

+3.3V and +5V: 22A (120W)
+12V: 100A (1200W)
-12V: 0.3A (3.6W)
5Vsb: 3A (15W)
Total: 1200W

Operation

PF Correction: Active @0.96
MTBF: 100,000 hours
Temperature: 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

Energy Efficiency

Rating: 80 Plus Gold
20% loading: 90.97% @115Vac
50% loading: 91.55% @115Vac
100% loading: 88.51% @115Vac

Fan Specs

Dimensions: 135 x 135 x 25 mm
Speed: 0-2300 ± 10%
RPM Airflow: 93.02 CFM (Tpy.)
Noise: 44.5 dBA max
Bearing: Fluid Dynamic Bearing (FDB)

General

Dimensions: 150 x 150 x 86mm
Material(s): Steel, PCB and Plastic
Compliance Standard: ATX12V v3.0 / EPS12V v2.92
Regulation & Certification: cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

Warranty: 10 years

Model Number: PA-2G1BB
