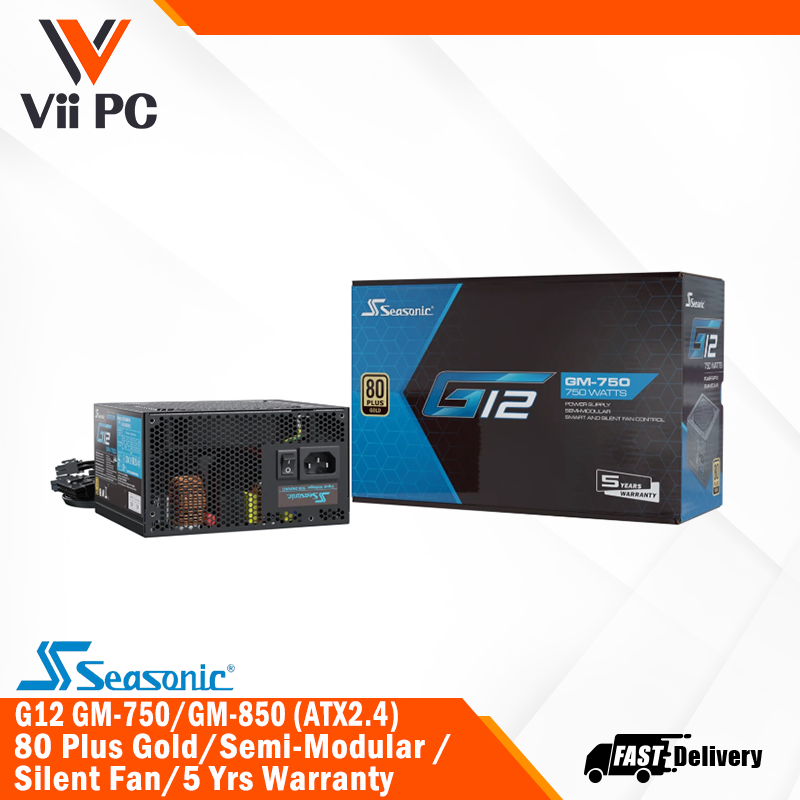

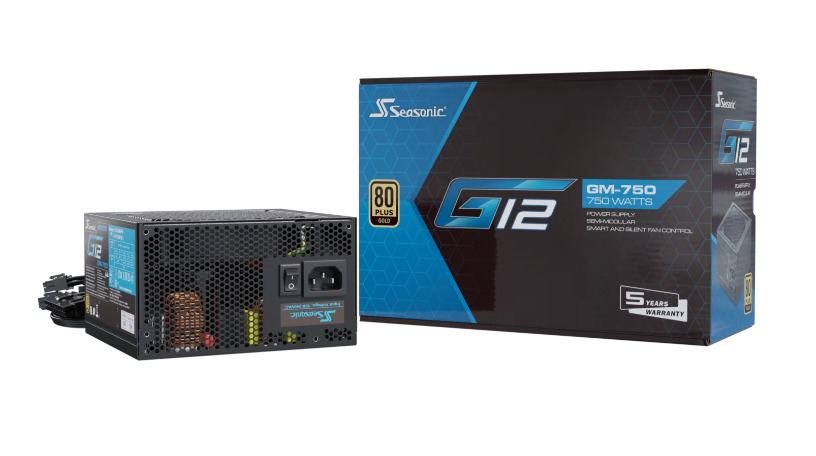

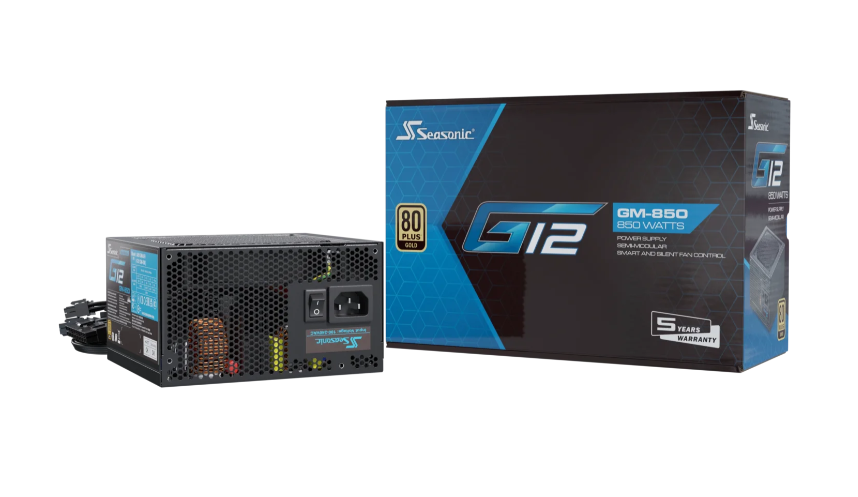

Seasonic G12 GM-750 or GM-850 (ATX2.4) 80 Plus® Gold Power Supply - Semi-Modular / Silent Fan (5 Year Warranty)

Seasonic G12 GM-750 or GM-850 (ATX2.4) 80 Plus® Gold Power Supply - Semi-Modular / Silent Fan (5 Year Warranty)

Regular price $149.00 SGD
Regular price Sale price $149.00 SGD
Sale Sold out
Models

G12 GM

The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard, providing at least 87%, 90%, and 87% power usage efficiency at 20%, 50%, and 100% operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to reduce energy waste, resulting in savings on energy costs for users. Additionally, the G12 GM units utilize the LLC resonant converter design and the industry’s leading Smart and Silent Fan Control (S2FC) for optimal performance and quiet operation.



Product details of G12 GM

  • ATX 12V
  • Semi-modular cables
  • 80 PLUS Gold certified
  • Intelligent and quiet fan control; narrow voltage control (12V, 5V, 3.3V) [±3%]
  • Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)

See G12 GM Product Specification Data Sheet >



Technical Specifications

  • 80PLUS®: Gold
  • Cybenetics Efficiency Level: TBA
  • Cybenetics Noise Level: TBA
  • Form Factor: ATX/EPS
  • Dimensions: 140 × 150 × 86 mm

    Fan Information

  • Fan Size: 120 mm
  • Fan Control: Smart and Silent Fan Control
  • Fan Bearing: Sleeve Bearing
  • Life Expectancy: 25,000 hours at 40 °C, 15 % – 65 % RH

    Cable Information

  • Modularity: Semi-Modular
  • Cable type: Black Flat Cables

    Electrical Features

  • Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
  • MTBF @ 25 °C, excl. fan: 100,000 hours
  • AC Input: Full Range
  • Protection: OPP, OVP, OCP, SCP

    Safety and Environmental

  • Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, CE, FCC
  • Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
  • Warranty: 5 Years
