Dimensions (L x W x H) : • 406 x 231 x 415mm (Incl. Protrusions) • 380 x 231 x 381mm (excl. Protrusions)
Volume : 33.44L (excl. Protrusions)

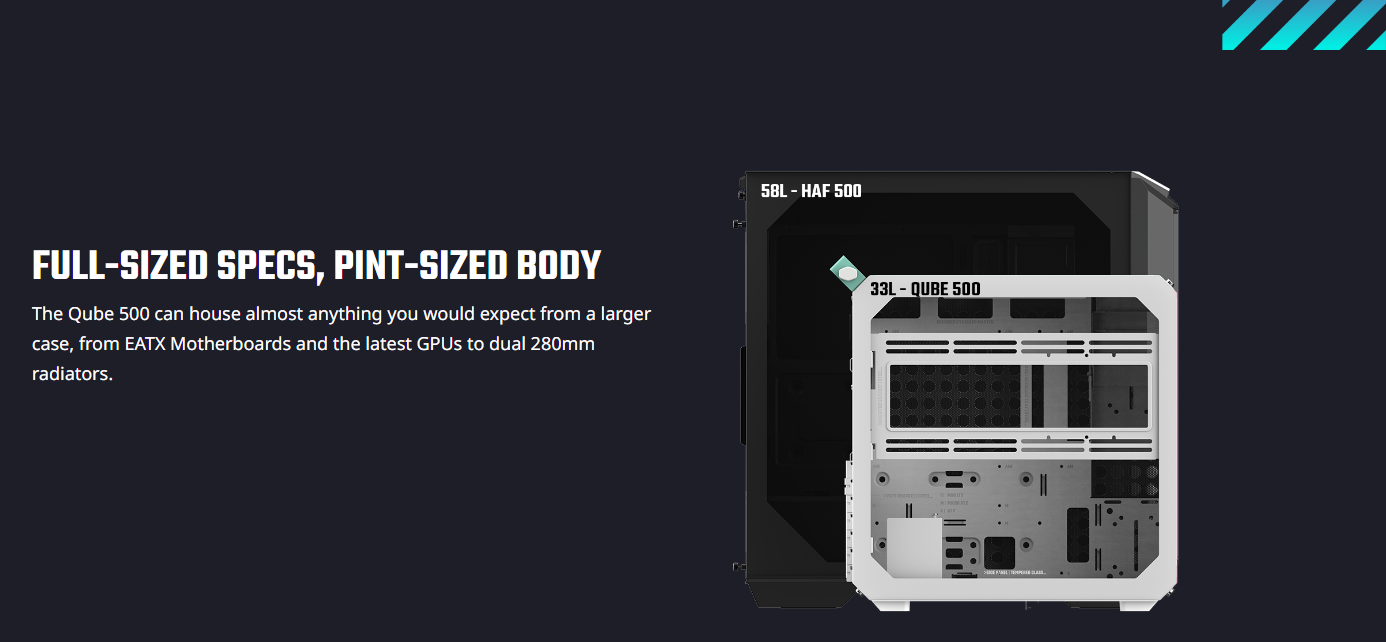

Motherboard Support : ITX, Micro ATX, ATX, E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)
Expansion Slots : 7

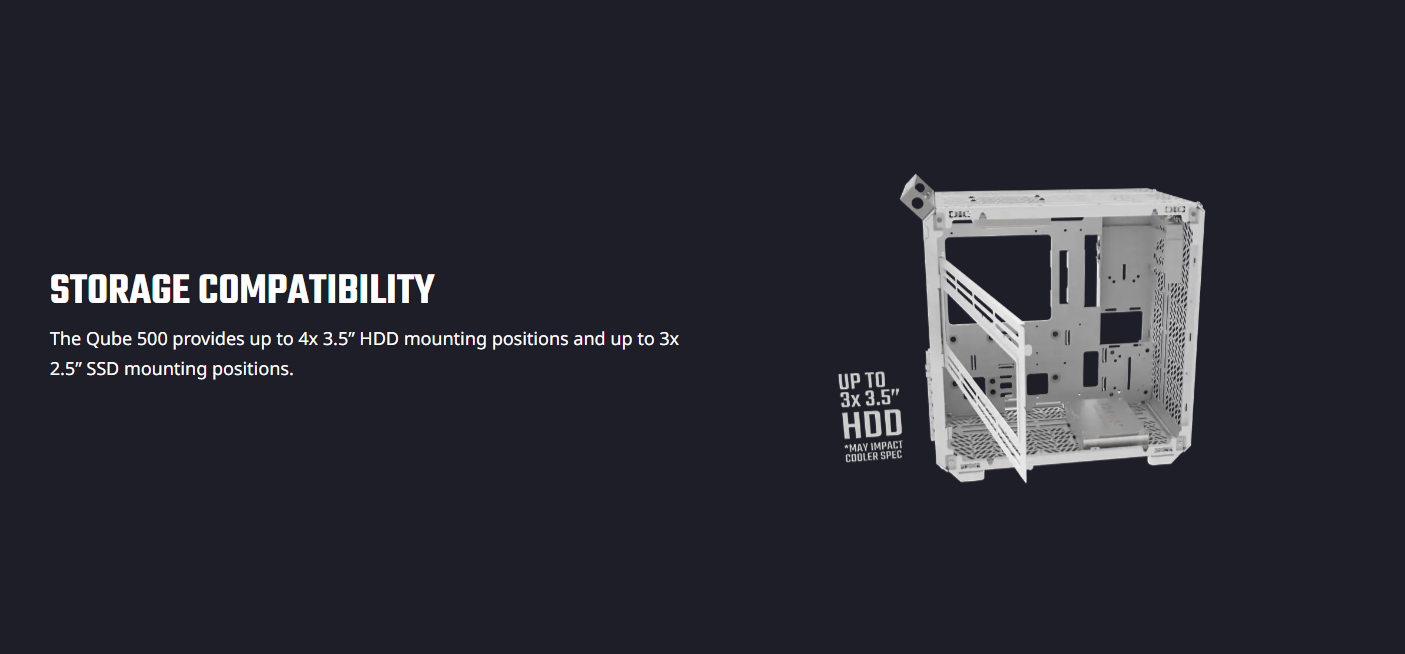

3.5" Drive Bays : 4
2.5" Drive Bays : 3

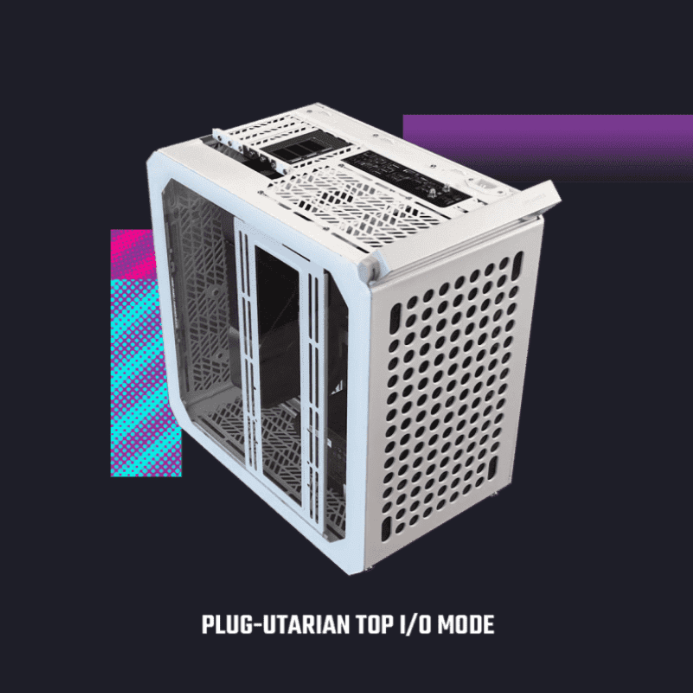

I/O Panel - USB Ports : • 2x USB 3.2 Gen 1 Type A, • 1x USB 3.2 Gen 2 • x2 Type C
I/O Panel - Audio In / Out : 1x 3.5mm Combo
Pre-installed Fans - Rear : • QUBE 500 Flatpack : 1x 120mm (1800 RPM) SF Black PWM • QUBE 500 Flatpack White : 1x 120mm (1800 RPM) SF White PWM
Fan Support - Front : 1x 120/140mm (x2 if PSU is mounted in bottom)
Fan Support - Top : 2x 120/140mm
Fan Support - Rear : 1x 120mm
Fan Support - Bottom : 2x 120/140mm
Fan Support - Left side : 2x 120/140mm
Radiator Support - Front : 120mm, 140mm, (240/280mm w/ PSU in bottom)
Radiator Support - Top : 120mm, 140mm, 240mm, 280mm, (280mm can be used within 53mm thickness)
Radiator Support - Rear : 120mm
Radiator Support - Bottom : 120mm, 140mm, 240mm, 280mm

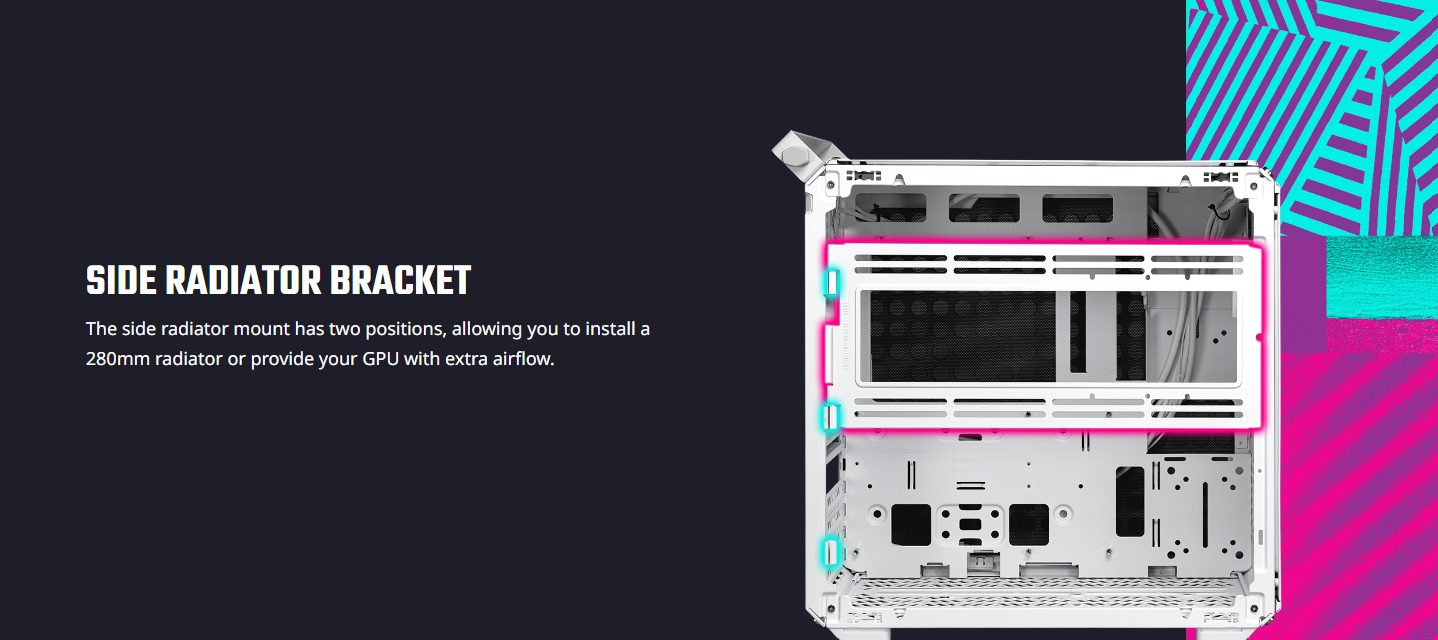

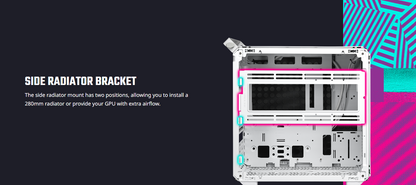

Radiator Support - Left side : 120mm, 140mm, 240mm, 280mm
Clearance - CPU Cooler : 164mm-172mm (Remove the water cooling bracket)
Clearance - PSU : • 173mm to first GPU slot, 216 maximum space (w/o cable management space) • 332mm space mounted in bottom (w/o cable management space)
Clearance - GFX : 365mm
Cable Routing - Behind Motherboard Tray : 29-32mm

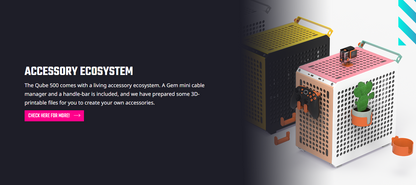

Handle : • QUBE 500 Flatpack : Black x 1 • QUBE 500 Flatpack White : Grey x 1
Gem Mini : • QUBE 500 Flatpack : Black x 1 • QUBE 500 Flatpack White : Grey x 1
